tBOX100-838-FL Series User's Manual
3.1.9

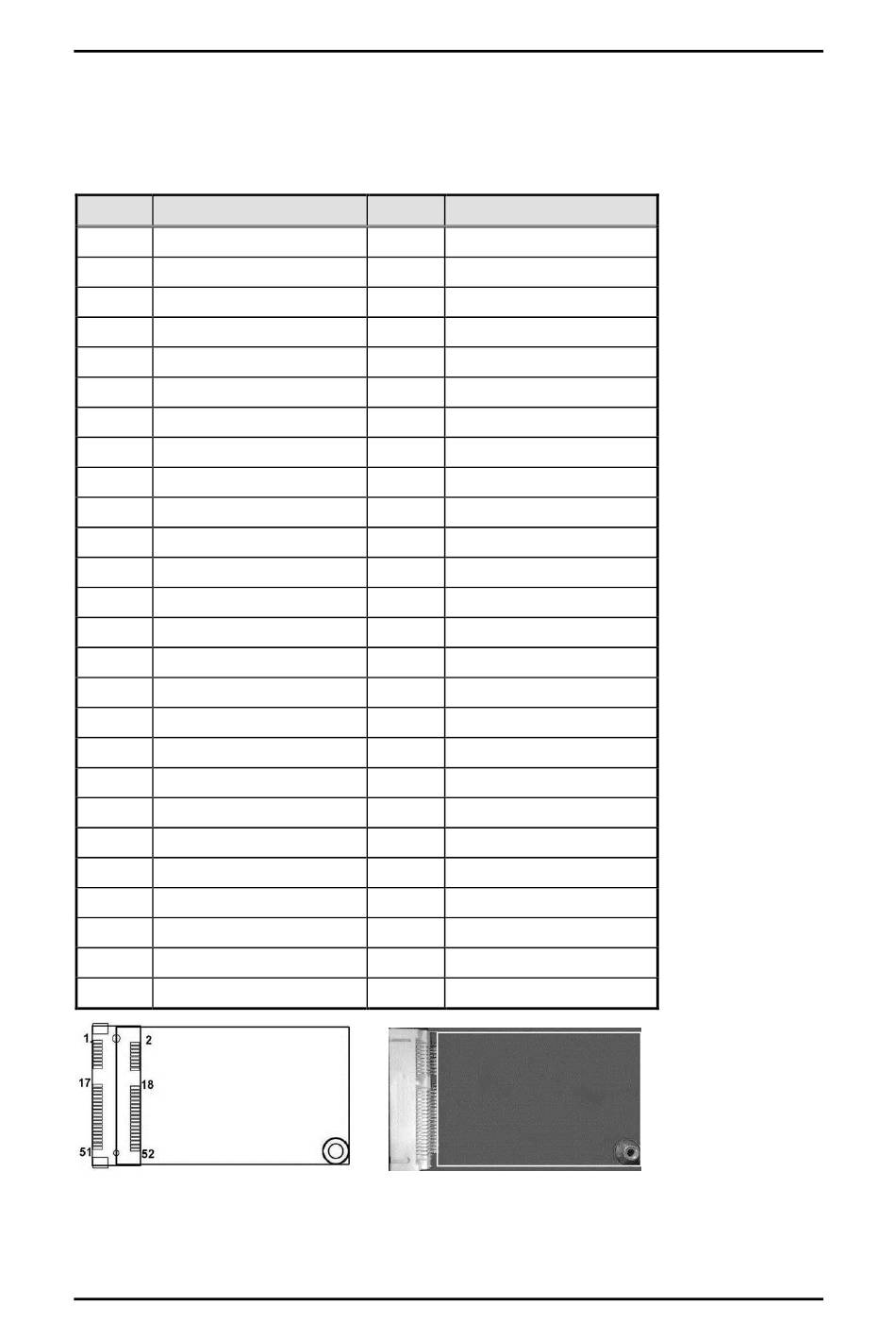

PCI Express mini card Connector

The PCI Express mini card connector is able to support a PCI Express x1 link and a
USB 2.0 link.
Pin Signal
1 WAKE#
3 No use
5 No use
7 CLKREQ#
9 GND
11 REFCLK-
13 REFCLK+
15 GND
17 No use
19 No use
21 GND
23 PE_RXN4
25 PE_RXP4
27 GND
29 GND
31 PE_TXN4
33 PE_TXP4
35 GND
37 GND
39 +3.3VSB
41 +3.3VSB
43 GND
45 No use
47 No use
49 No use
51 No use
A mini PCIe card can be applied to either PCIe or USB 2.0. The USB 2.0 function will be
helpful during the transition to PCIe, because peripheral vendors will need time to design their
chipsets to have the PCe function. During the transition, Mini PCIe cards can be quickly
implemented by using USB 2.0.
16
Pin Signal
2 +3.3VSB
4 GND
6 +1.5V
8 No use
10 No use
12 No use
14 No use
16 No use
18 GND
20 +3.3VSB
22 PERST#
24 +3.3VSB
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_D3-
38 USB_D3+
40 GND
42 LED_WWAN#
44 LED_WLAN#
46 LED_WPAN#
48 +1.5V
50 GND
52 +3.3VSB
Connector
