The tBOX100-838-FL is convenient for your various hardware configurations, such as HDD
and PCI Express mini card. The chapter 2 will show you how to install the components.
2.1
HDD/SSD Installation

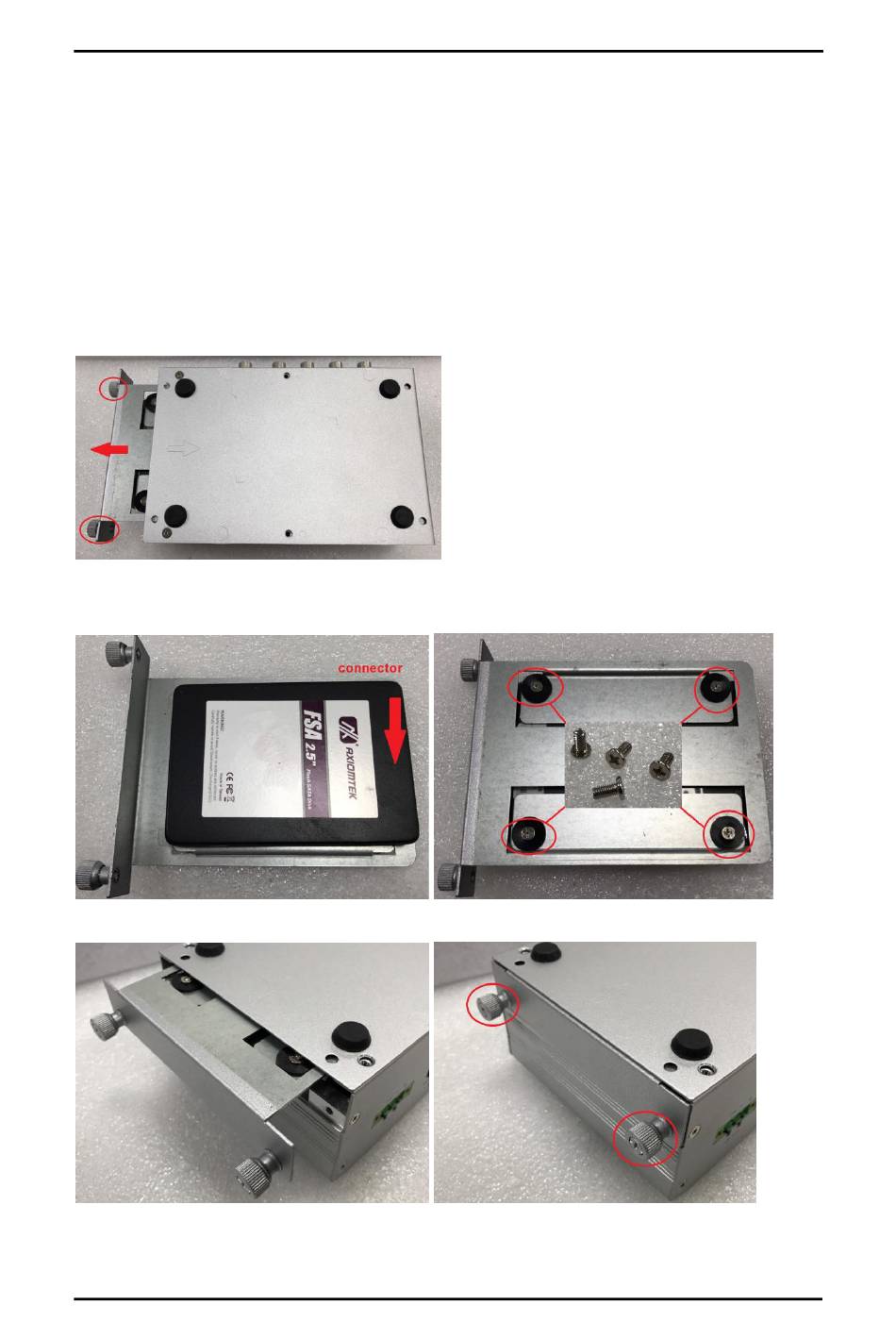

Step 1
Turn off the system, and unplug the power cord. Loosen the screws and
plug out HDD/SSD tray as shown.
Step 2
Fasten 4x screw and rubber pad with HDD/SSD as shown.
Note the direction of SATA connector.
Step 3
Plug in HDD-TRAY and Fasten 2x screw as shown.
Hardware Installation
tBOX100-838-FL Series User's Manual
HARDWARE INSTALLATION
CHAPTER 2
