3.1.8

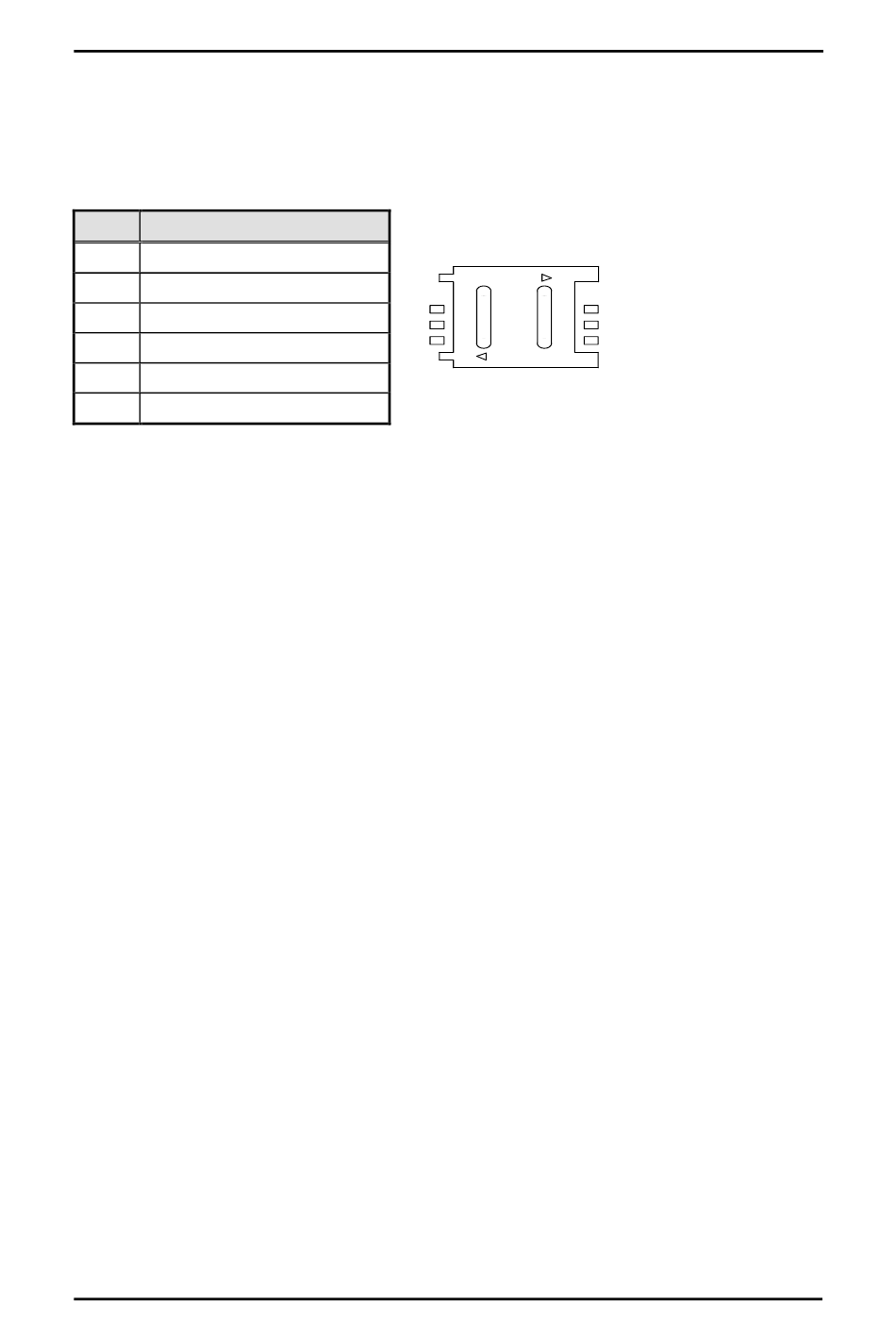

SIM Card Connector

The SIM Card slot is a ISO 7816 standard 6-pin connector for PCI Express Mini
Card used.
Pin Signal
C1 SIM_PWR
C2 SIM_RESET
C3 SIM_CLK
C5 GND
C6 SIM_VPP
C7 SIM_DATA
Connector
tBOX100-838-FL Series User's Manual
LOCK
C3 C7
C2 C6
C1 C5
OPEN
