3. Product Overview

3.1. General Information
The Optidrive Compact 2 is a dedicated range of products intended for integration directly into a machine design. All units consist of a base
Power Module (PM) and Control Module (CM) which, when combined together become a complete drive unit. This construction method
provides enhanced flexibility.
In addition, an optional fieldbus interface may be added, allowing direct connection to fieldbus networks.
Power Modules feature a flat base surface, intended to be mounted to a suitable heat conductive surface which can provide heatsink capability.
The required cooling must be catered for by the installation.
Control modules feature an interface to allow connection of a remote keypad / display for commissioning purposes, or alternatively a PC
interface may be used.

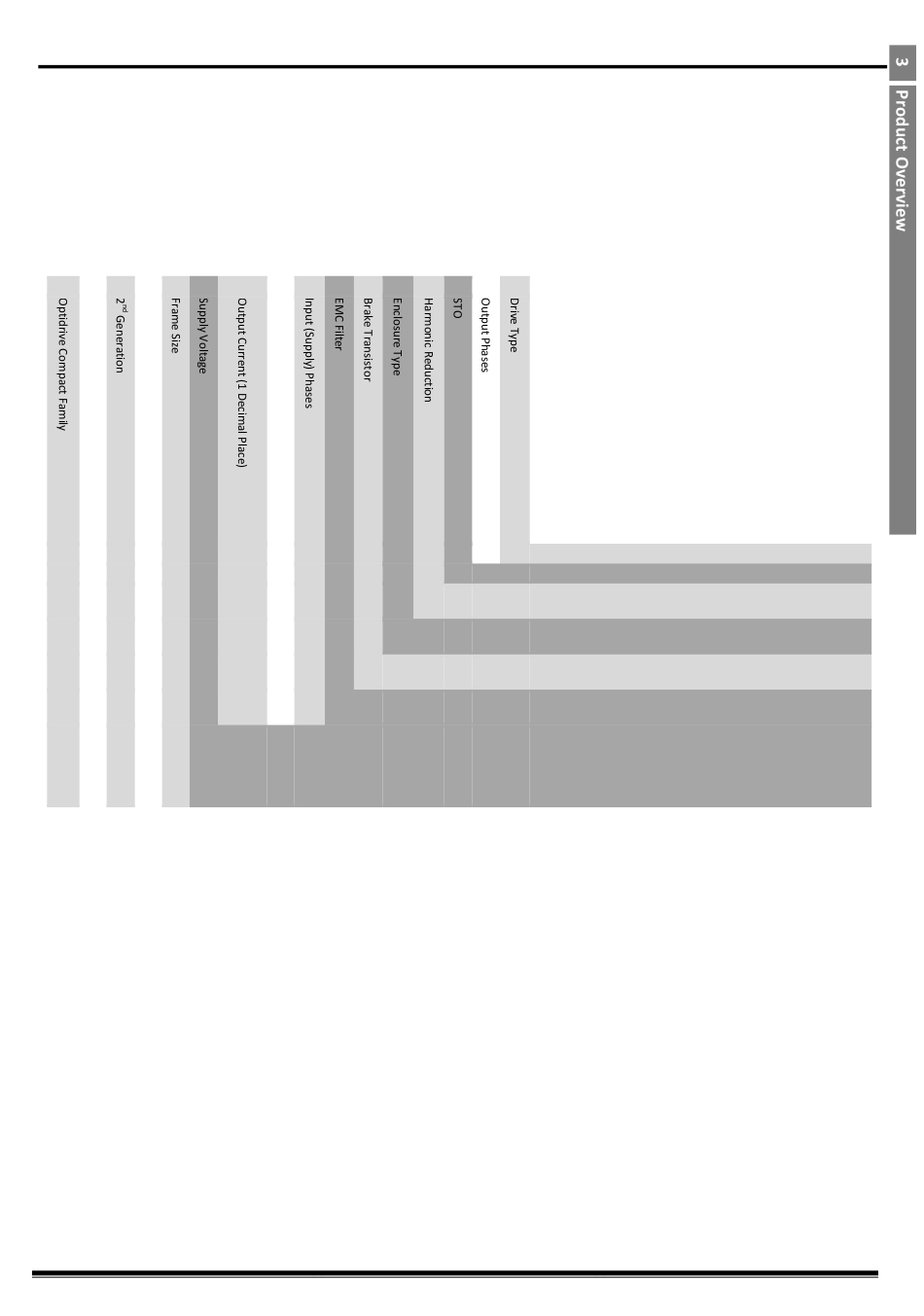

3.2. Model Code Definition
OPC - 2 - A B
Optidrive Compact-2 Engineering Guide Issue 07.docx
CCCC - D E F G
www.invertekdrives.com
H I J K
E: Compact 2 Basic Pod without Ethernet IP
0: Without STO
0: Electrolytic Caps, No PFC
P: With PFC
1: Base Plate without Fan
2: Base Plate + Stirrer Fan
1: No Brake Transistor
4: With Brake Transistor
0: No EMC Filter
F: With EMC Filter
1: 110 – 230V
2: 200 – 240V
4: 380 – 480V
5: 480 – 525V
6: 500 – 600V
7
