10.

Additional Options

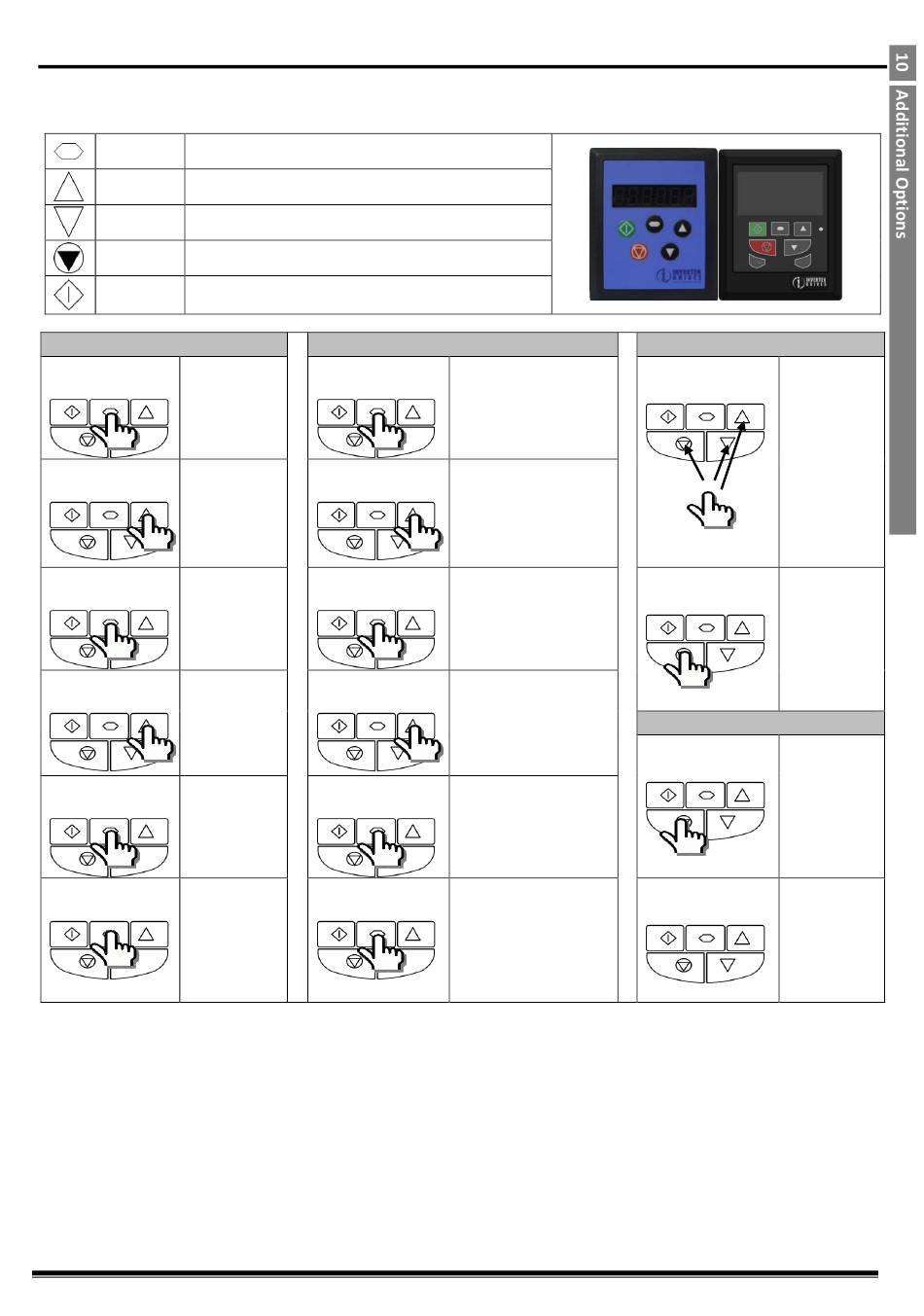

10.1. Managing the remote Keypad.
The drive is configured and its operation monitored via the keypad and display.
Used to display real-time information, to access and exit
NAVIGATE
parameter edit mode and to store parameter changes
Used to increase speed in real-time mode or to increase
UP
parameter values in parameter edit mode
Used to decrease speed in real-time mode or to decrease
DOWN
parameter values in parameter edit mode
RESET / Used to reset a tripped drive.
STOP When in Keypad mode is used to Stop a running drive.
START When in keypad mode, used to Start a stopped drive.
10.2. Changing Parameters
Press and hold

the Navigate
key > 2
seconds

Use the up and

down keys to
select the
required
parameter

Press the

Navigate key
for < 1 second

Adjust the

value using the
Up and Down
keys

Press for < 1

second to
return to the
parameter
 menu
Press for > 2

seconds to
return to the
operating
display

Optidrive Compact-2 Engineering Guide Issue 07.docx
10.3. Read Only Parameter Access
Press and hold the

Navigate key > 2 seconds

Use the up and down

keys to select P-00

Press the Navigate key for

< 1 second

Use the up and down

keys to select the
required Read Only
parameter

Press the Navigate key for

< 1 second to display the
value

Press and hold the

Navigate key > 2 seconds
to return to the operating
display

www.invertekdrives.com
10.4. Resetting Parameters
To reset

parameter
values to their
factory default
settings, press
and hold Up,
Down and
Stop buttons
for > 2
seconds.
The display will
show ""
Press the Stop

key.
The display will
show ""
10.5. Resetting a Trip
Press the Stop

key.
The display will
show ""

