4.3.2

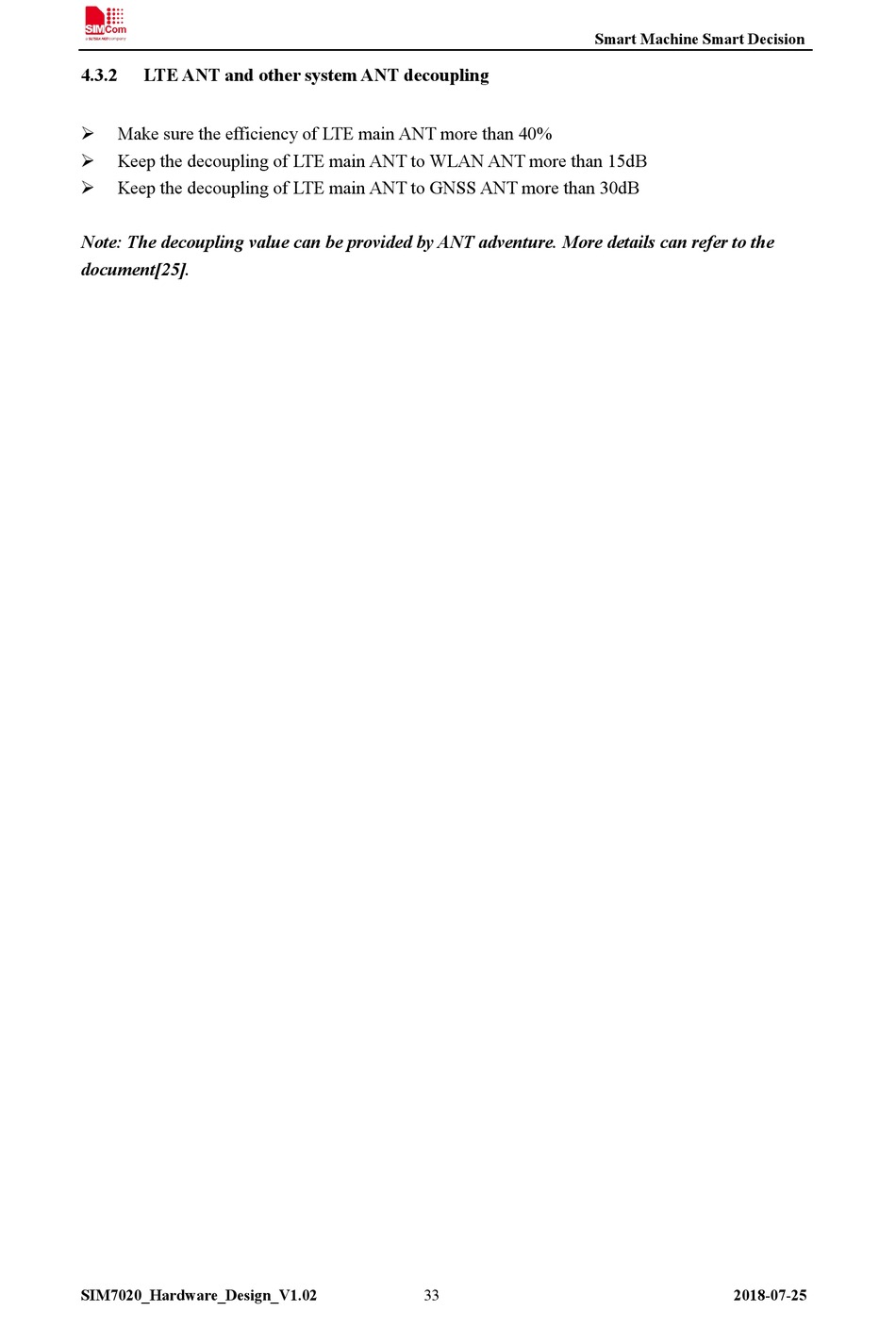

LTE ANT and other system ANT decoupling

Make sure the efficiency of LTE main ANT more than 40%

Keep the decoupling of LTE main ANT to WLAN ANT more than 15dB

Keep the decoupling of LTE main ANT to GNSS ANT more than 30dB

Note: The decoupling value can be provided by ANT adventure. More details can refer to the
document[25].
