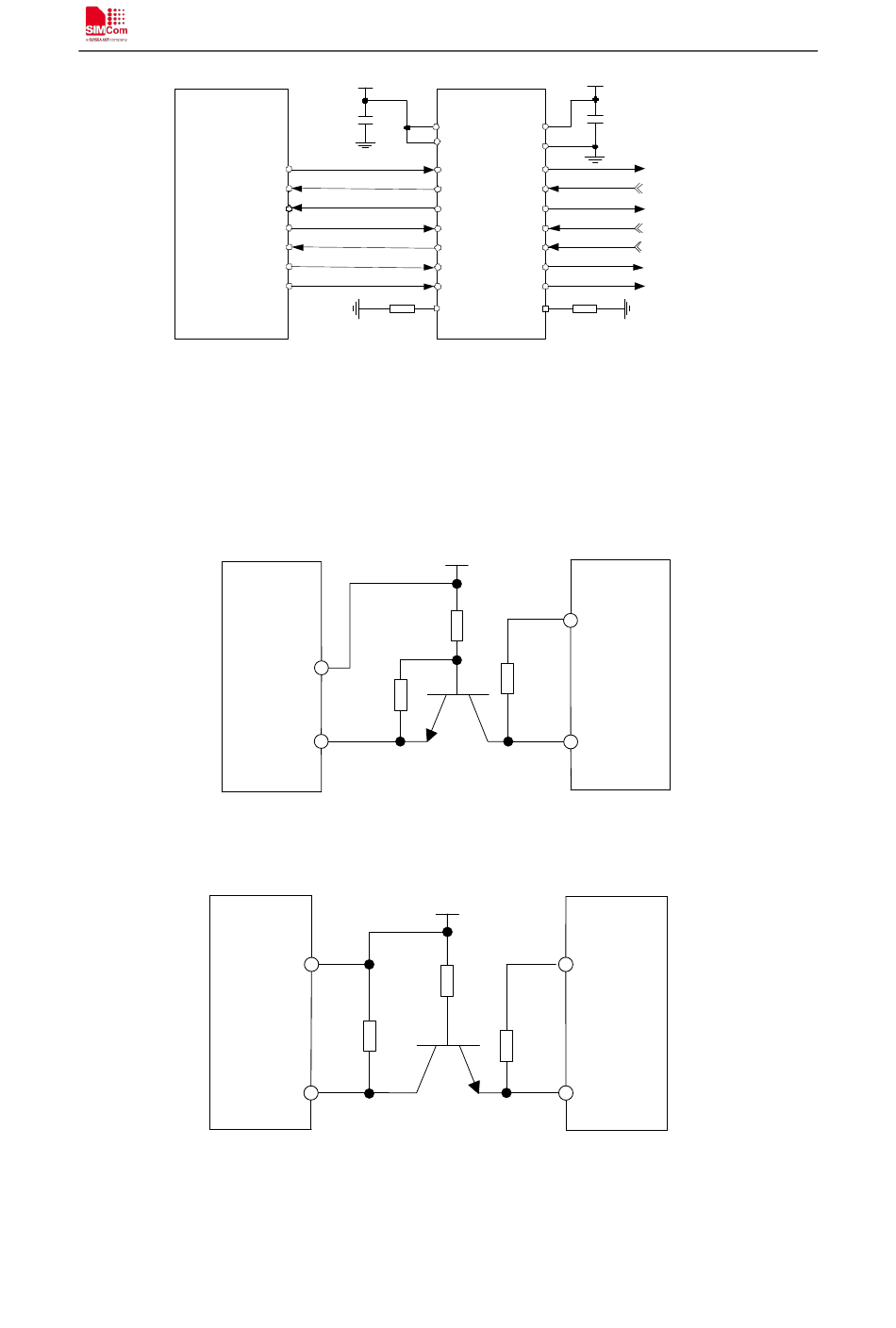

Figure 12: Reference Circuit Of Level Shift - SimCom SIM7020C Hardware Design

MODULE
UART
Note: When it uses the level shifter IC, the pullupresistance on TXD_3.3V
DCD_3.3V should not be less than 47KΩ.
Also the following reference circuit is recommended:
GSM
VDD_EXT
UART1_TXD
GSM
VDD_EXT
UART1_RXD
Note: The default band rate is 115200bps. The triode conversion circuit is not suitable for high
band rate more than 460800. When using UART2 for downloading software, the band rate is
921600bps, please pay attention to the device's speed support.
