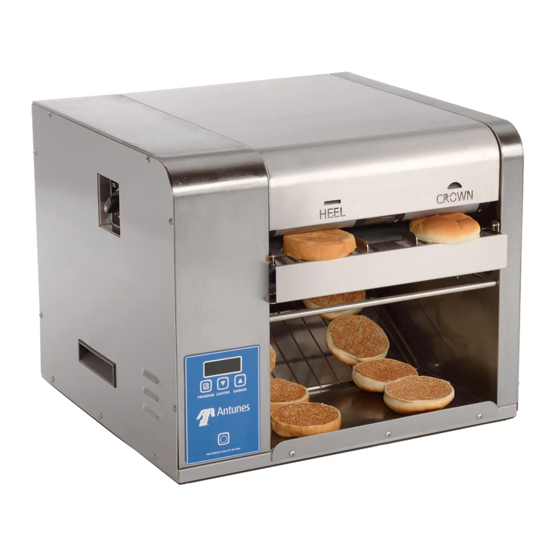

Gold Standard Toaster
Model GST-2H Int'l
owner's manual
Manufacturing Numbers:
9210961 & 9210962
www.antunes.com
P/N 11012011 Rev. C 06/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gold Standard Toaster GST-2H and is the answer not in the manual?

Questions and answers

Related Manuals for Antunes Gold Standard Toaster GST-2H

Summary of Contents for Antunes Gold Standard Toaster GST-2H

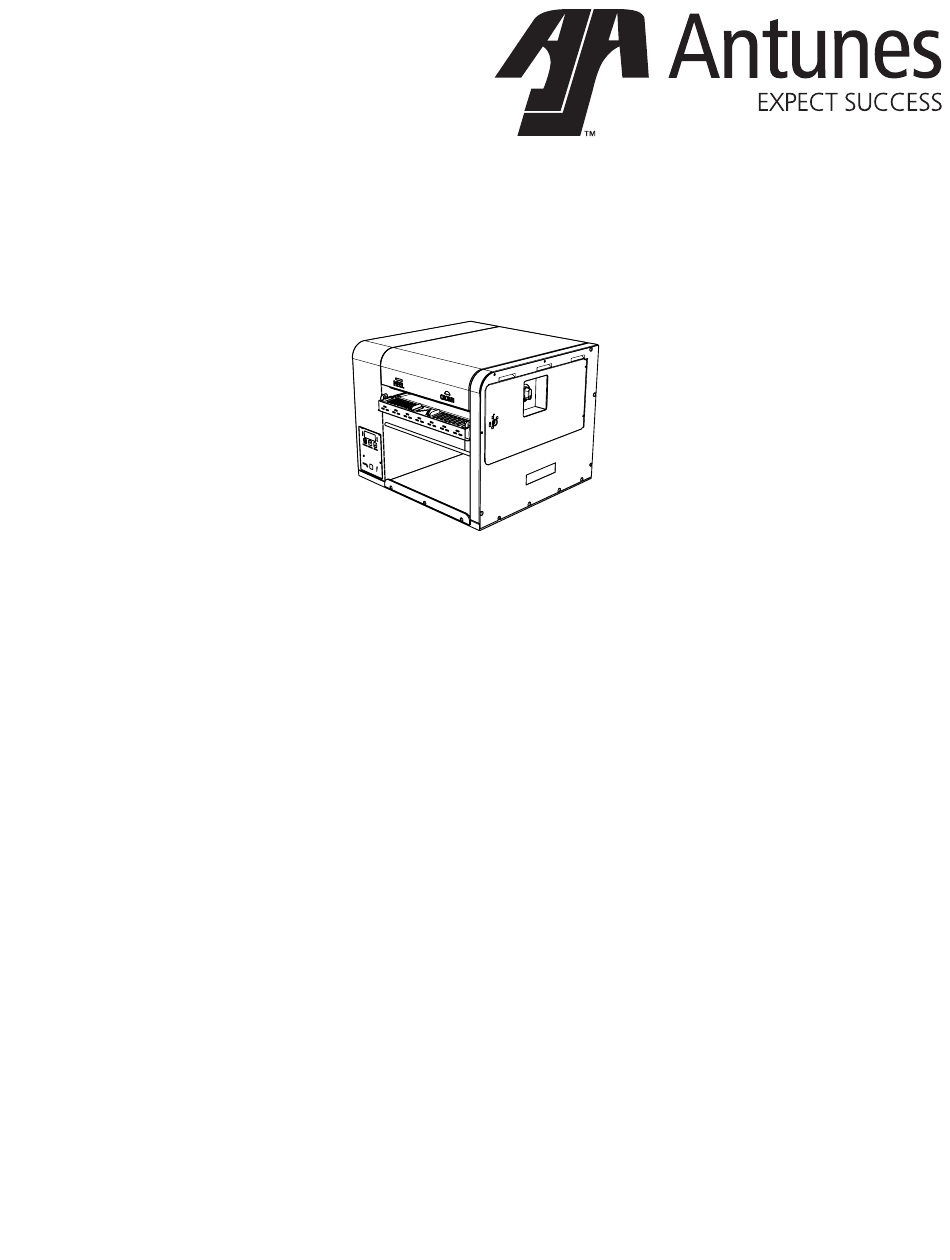

  • Page 1 Gold Standard Toaster Model GST-2H Int’l owner’s manual Manufacturing Numbers: 9210961 & 9210962 www.antunes.com P/N 11012011 Rev. C 06/18...

  • Page 2: Table Of Contents

    Contents Overview Service/Technical Assistance Overview The Antunes Gold Standard Toast- Before Use er is an energy-efficient toaster If any parts are missing or dam- In Case of Damage designed with a dual belt feed aged, contact Antunes Customer Service/Technical Assistance...

  • Page 3: Safety Information

    Contact y Install and locate the equipment if it has a damaged cord or plug, Antunes Technical Service only for its intended use as or if it is not working properly. for adjustment or repair.

  • Page 4: Specifications

    Specifications Depth Model & Width Height Mfg. No. GST-2H 22" (559 mm) 21" (533 mm) 17” (432 mm) 9210961 GST-2H 22" (559 mm) 21" (533 mm) 17” (432 mm) 9210962 Model & Plug Volts Watts Hertz Mfg. No. Description CEE 7/7, GST-2H 2000 50/60...

  • Page 5: Installation

    Compression Settings are: NOTICE: If any parts are missing or NOTICE: The default light/dark damaged, contact Antunes CROWN - #4 HEEL - #3 value is d0. Customer Service IMMEDI- 3. Insert product into the appro- 2. Press the LIGHTER or DARK- ATELY at +1-877-392-7856...

  • Page 6: User Mode

    Platen is 545 °F (285 °C).dd Heater temperature is 30 °F toaster on. If the error repeats, contact more than the Setpoint or Antunes Technical Service for assis- 5. Press the PROGRAM button to if the Platen Thermocouple tance. procedure to the Motor Speed is disconnected or open.

  • Page 7: Daily Cleaning

    Daily Cleaning Clean Toaster and Belt Wraps Press and release the Power button to turn the unit off. The unit enters a 45 minutes cool-down mode and automatically shuts down when complete. NOTICE: The belt rollers will continue turning while in cool-down mode.

  • Page 8: Quarterly Cleaning

    Quarterly Cleaning 4. Restore tension on the bottom Upper Frame belt by pushing UP and OUT Belt Lock Remove Belt Wraps and Clean (See Below). Unlocked Rollers Restore the tension on the top 1. Turn the toaster’s power switch belt by pushing DOWN and OUT (See Below).

  • Page 9: Annual Cleaning

    Annual Cleaning Clean Cooling Fans and Electrical Housings 1. Turn the toaster’s power switch to the off position. The toaster enters a cool-down mode and will automatically shut down when complete. Unplug the power cord. 2. Remove the push knob and top six screws on the left side of the toaster and set aside.

  • Page 10: Troubleshooting

    Allow the unit to warm up for 30 minutes and then PLt continuously. Buns (285 °C). recheck. If the Control Display still flashes PLt, not toasting properly. contact your maintenance person or Antunes Technical Service for service. Failed Platen Thermocouple. Contact your maintenance person or Antunes Technical Service for service.
  • Page 11 HL continuously. Buns trol. If it trips again, contact your maintenance are not toasting properly. person or Antunes Technical Service for service. Control Display is blank. Power Cord is not plugged in. Plug the Power Cord into the appropriate out- let.

  • Page 12: Replacement Parts

    Replacement Parts NOTICE: Use only genuine Antunes replacement parts in this egg station. Use of parts other than those supplied by the manufacturer will void the warranty. Parts List Item Part # Description Qty. Item Part # Description Qty. 0012913...
  • Page 13 NOTICE: See Next Page for Parts List related to this graphic. NOTICE: Use only genuine Antunes replacement parts in this egg station. Use of parts other than those supplied by the manufacturer will void the warranty. P/N 1012011 Rev. C 06/18...
  • Page 14 Parts List Item Part # Description Qty. Item Part # Description Qty. Platen Assembly (Mfg. No. Label, Wiring Diagram (Mfg. 0013234 1001643 9210961) No. 9210961) Platen Assembly (Mfg. No. Label ,Wiring Diagram (Mfg. 0013024 1001589 9210962) No. 9210962) 0013093 Brkt Assy Top 2100212 Handle, Pocket Pull Snap In 0012094...
  • Page 15 Parts List Item Part # Description Qty. Item Part # Description Qty. 0013092 Cam Bracket Assy 0506853 Frame Cover 0021864 Adjust Frame Wldmt 0507092 Insulation Plate 0021865 Main Platen Frame Wldmt 0507140 Alum Washer Weldment, Drive Roller Adjust 0600162 Spring, Cam 0021953 Spacer .252 Id X .5 Od X Lanes...

  • Page 16: Wiring Diagram

    Wiring Diagram Mfg No. 9210961 P/N 1012011 Rev. C 06/18...

  • Page 17: Mfg No. 9210962

    Wiring Diagram Mfg No. 9210962 P/N 1012011 Rev. C 06/18...

  • Page 18: Notes

    Notes P/N 1012011 Rev. C 06/18...

  • Page 19: Limited Warranty

    Travel Time & Mileage in excess of 2 hours (100 miles/160 km) round trip from the nearest authorized service agency. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations. Changes to update equipment do not constitute a warranty charge.
