Gold Standard Toaster
Model GST-5V
owner's manual
Manufacturing Numbers:
9210880
Original Instructions
P/N 1011263 Rev. D 04/18
www.antunes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gold Standard GST-5V and is the answer not in the manual?

Questions and answers

Related Manuals for Antunes Gold Standard GST-5V

Summary of Contents for Antunes Gold Standard GST-5V

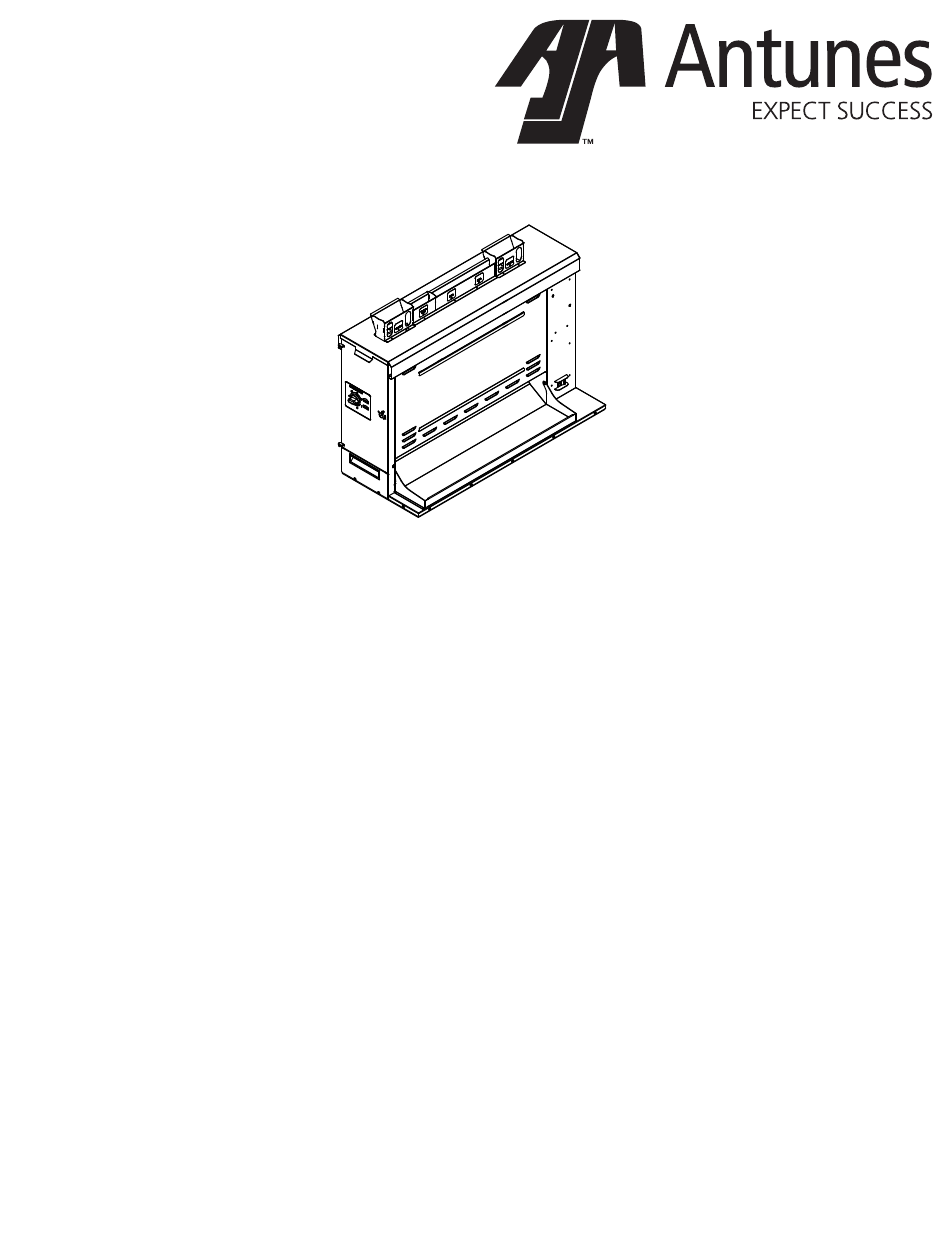

  • Page 1 Gold Standard Toaster Model GST-5V owner’s manual Manufacturing Numbers: 9210880 Original Instructions P/N 1011263 Rev. D 04/18 www.antunes.com...

  • Page 2: Table Of Contents

    Information Please read all of the information contained installation or operation of your system, in this manual prior to installing and operat- Service/Technical contact Antunes Technical Service at +1- ing the toaster. Assistance 877-392-7854 (toll free). Important Safety Your toaster is manufactured from the finest...

  • Page 3: Important Safety Information

    This equipment should be ser- If a chemical cleaner is used, be viced by qualified personnel only. sure it is safe to use on cast alu- Contact Antunes Technical Ser- minum. Observe all precautions vice for adjustment or repair. and warnings on product label.

  • Page 4: Specifications

    SPECIFICATIONS Dimensions Model & Width Depth Height Mfg. No. GST-5V 34.25 inches 14.75 inches 24.84 inches 9210880 (870 mm) (375 mm) (631 mm) Electrical Specifications & Plug Configuration Model & Plug Volt Watts Mfg. No Description GST-5V IEC 309-Plug, 9210880 4600 50/60 32 Amp., 230 VAC...

  • Page 5: Installation

    FRAME fect normal operation. NOTE: If any parts are missing or dam- Figure 1. GST-5V Components (Belts not Shown) aged, contact Antunes Customer Service IMMEDIATELY at +1-877- 392-7856 (toll free). Location When placing the toaster into service, pay attention to the following guidelines: Make sure power is off and the toaster is at room temperature.

  • Page 6: Language Selection

    OPERATING Language Selection Use the LEFT and RIGHT arrow but- tons (Figure 4) to scroll through the INSTRUCTIONS Follow these steps to set the language op- settings, which appear in the follow- tion for the GST-5V toaster. ing order: The GST-5V toasts Crowns, Heels, Clubs, and Plug in the power cord and turn the •...

  • Page 7: Adjusting Toast Quality

    Adjusting Toast Quality NOTE: The belt rollers continue turning while in cool-down mode. This When the unit is turned on and ready, you allows you to the entire belt. can adjust the toast quality by pressing the NOTE: Only clean the belt when it is LEFT and RIGHT arrow buttons on the con- in front of the Backing Plate to trol panel.

  • Page 8: Quarterly Cleaning

    QUARTERLY CLEANING TENSE TENSE Remove Belt Wraps & Clean Roll- Turn the toaster’s power switch to LOOSE the off position. The toaster enters a LOOSE cool-down mode and will automati- cally shut down when complete. Unplug the power cord once the cool-down period is complete.

  • Page 9: Install Belt Wraps

    Install Belt Wraps Carefully clean any debris from the inside floor of the control compart- If you are installing the existing belt ment and from all electrical connec- wraps, inspect the belts. Replace belt tions. Be sure to remove any grease, wraps if worn or damaged.

  • Page 10: Troubleshooting

    To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equipment should be performed by qualified service personnel. The unit should be unplugged when servicing, except when electrical tests are required. If the trouble- shooting steps listed do not solve your machine problem, contact Antunes Technical Service for further assistance or service. NOTE: The table below describes troubleshooting related to the unit display.
  • Page 11 Cycle power off and on if fault message persist; con- Fail”. Followed by a graphic display. point within 30 minutes. tact your maintenance person or Antunes Technical Power, Motor, ‘A’ , and ‘C’ lights are solid Service for service. Failed Platen ‘B’ Heater.
  • Page 12 Mechanical bind in one of the conveyors. Cycle power off and on if fault message persist; con- Running Slow. See Operators Manual”. tact your maintenance person or Antunes Technical Damaged Ball Bearing(s). Power, ‘A’ , ‘B’ , and ‘C’ lights are solid and Service for service.
  • Page 13 Maintenance section of this manual. burning. Chain and/or sprockets are Contact your maintenance person or Antunes Technical Service for service. worn and/or loose. Compression setting is incor- Use recommended setting of 4. See the Programming section of this Manual if using a rect.

  • Page 14: Replacement Parts

    REPLACEMENT PARTS Item Part No. Description Qty. OPTIONAL ACCESSORY 0012774 Bun Feeder Assembly 0506184 Bun Stop Bracket 0021733 Club Base Divider Weldment 7000884 Damper Replacement Kit Incl. Items 6, 7, 8, & 9 0400425 Damper 0506300 Damper Support 0600132 Spring, Damper Support 306P104* Screw, Mach.
  • Page 15 Item Part No. Description Qty. Item Part No. Description Qty. Item Part No. Description Qty. 2100253 Knob, 1/4” Shaft, Push-On 0504320 Spacer 0.781 X 1.125 X 0.06” 308P145* Nut, Hex Acorn #08-32 1001417 Label, Compression (see Item 29, 30 & 31) 0600156 Spring, Cam Adjustment 7001628...
  • Page 16 Item Part No. Description Qty. tem Part No. Description Qty. tem Part No. Description Qty. 308P151* Screw, SEMS #8-32 x 5/16” 304P105* Nut, Hex KEPS #4-40 Zinc 0506156 Heat Sink, Relay 0506155 Duct, Fan 7000870 I/O Board Kit 7000370 Solid State Relay Kit 3100213 Screw, PHPNHD #10-16 x 3/4”...
  • Page 17 Item Part No. Description Qty. Item Part No. Description Qty. 310P124* Screw, #10-32 X 2-1/4” 308P102* Washer, Int. Tooth #08 Steel Truss Head S/S Zinc Plated (see Item 29) 0506093 Support Bracket, LH 308P164* Screw, Mach. #8-32 x 1” LG 0506149 Cover, Adj.
  • Page 18 Item Part No. Description Qty. Item Part No. Description Qty. 0012594 Adj. Platen Assembly 310P140* Washer, Flat #10 Stl/ZN 0021710 Weldment, Back Plate Adj. Platen .219 x .500 x .049 (See Item 17) 0021712 Weldment, Crown Plate 310P209* Screw, Mach #10-24 x 3/4” 0021780 Crown Plate Weldment Slotted TrussHD 18-8SS...
  • Page 19 Item Part No. Description Qty. 4050241 Contactor, 4 Pole 7000886 Snubber Board Kit 7000913 Fan - Axial, 200/230 VAC 300P102* Nut, Speed #8-32 “U” 4070170 MCD Vert Toaster Filter Board 304P105* Nut, Hex KEPS #4-40 Zinc 4010221 Cap-MP, Motor Run 4050242 Filter, Power Line, 10A 120/250 V, 50-60 HZ...

  • Page 20: Wiring Diagram

    WIRING DIAGRAM P/N 1011263 Rev. D 04/18...

  • Page 21: Notes

    NOTES P/N 1011263 Rev. D 04/18...
  • Page 22 NOTES P/N 1011263 Rev. D 04/18...
  • Page 23 NOTES P/N 1011263 Rev. D 04/18...
  • Page 24 2 hours (100 miles/160 km) round trip from the nearest Antunes Technical Service. 2. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations. Changes to update equipment do not constitute a warranty charge.
