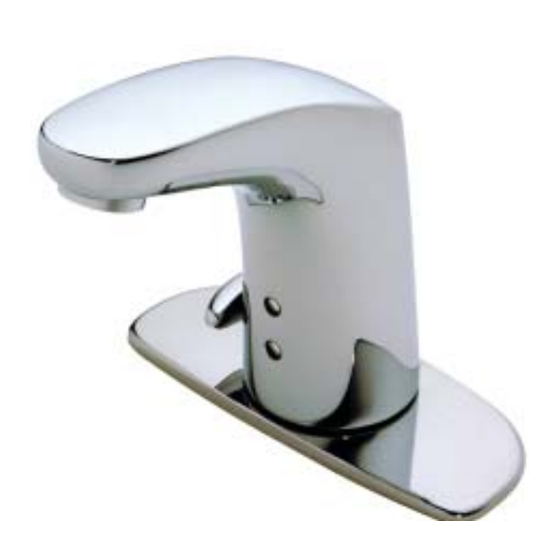

Lavatory faucet battery powered, sensor-operated

Advertisement

Quick Links

Lavatory Faucet
Battery Powered, Sensor-Operated
Installation and Service Instructions

IMPORTANT:

Water lines MUST be thoroughly flushed BEFORE and
AFTER installing the faucet to prevent foreign matter, i.e.
copper chips, sand, stones, etc. from clogging and possibly
damaging the faucet.

GENERAL

This installation and Maintenance Guide introduces the
installation, maintenance and use of the Ultra-Sense faucet.
Please read the instructions carefully prior to the installation
and save them for reference where service may be needed.
If any fault or malfunction occurs in the faucet, please refer
to the troubleshooting chart, or contact Symmons Customer
Service at 1-800-SYMMONS.

TECHNICAL DATA

Aft er fl ow period: 1 second
Maximum water fl ow period: 10 seconds
Electrical installation: 2CR5 6V Lithium Battery
Working pressure: 14.5psi - 145psi
Normal water fl ow: .25GAL/cycle

INSTALLATION

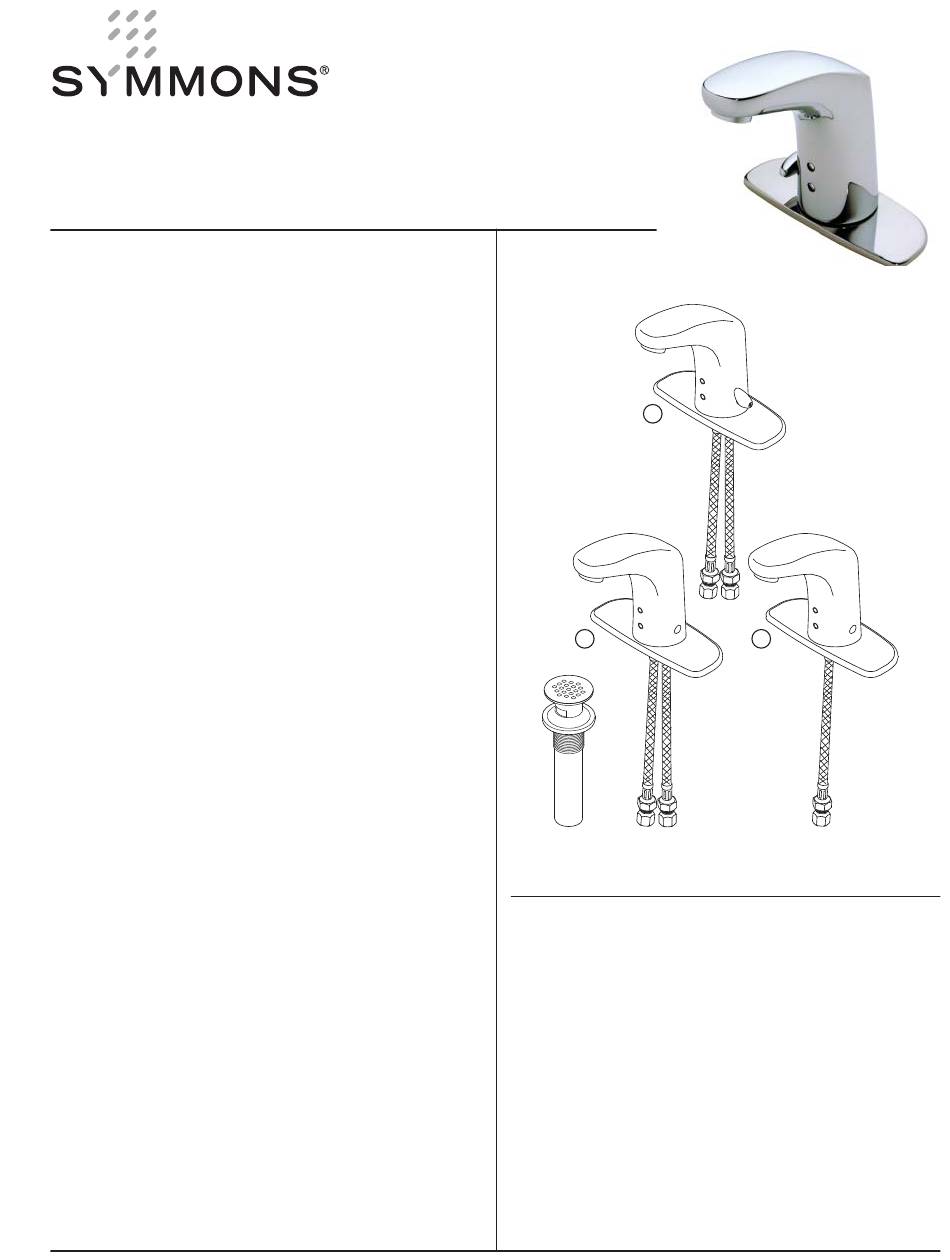

Every S-6080 Series faucet can be installed in one of three
possible supply configurations.

OPTIONS

Hot and cold supply with lever handle temperature
adjustment. (factory standard)
Hot and cold supply with preset tempered water.
(fi eld modifi ed)
Single supply for pre-mixed water. (fi eld modifi ed)

OPTION 1

For 4" center deckplate installation, place faucet and
supply(s) through deck plate (SF-138).
Affi x deck plate with studs facing down to faucet using two
screws (SF-143) provided in mounting kit (SF-142).
NOTE: For S-6080-LST (18" long copper supply tube)
thread supply tubes into faucet housing. Tubes thread into
base with LEFT hand thread. Be sure brass tube bushing
with o-ring is fully installed in base and tight.
Mount the faucet on the wash basin using anchor bar (KN-
23), spacer (KN-26), and nut (L-36) on 4" centers. Ensure
the gasket (SF-140) is correctly positioned between the
faucet and wash basin. For single hole mount installation,
attach studs found in single mount kit (SF-158) to base of
Ultra-Sense
S-6080
NOTE: For S-6080-LST (18" long copper supply tubes) attach
check strainer assembly (SF-181) directly to supply stops. Cut
tubing to proper length and attach tubing to check strainer
assembly using nut (IL-8)) and ferrule (IL-9).OPTION 2
Modifying the faucet for hot and cold supply with
tempered water
1
2
housing. Place faucet supply(s) through wash basin and
secure using wing fi xing plate and nuts from single mount kit.
Attach supply hose(s) (SF-148) to check strainer assembly
(SF-186).
Connect check strainer assembly (SF-186) to angle stop or
water inlet pipe.
Remove handle screw (SF-155), handle (SF-154) and
handle limit stop (SF-156).
3
