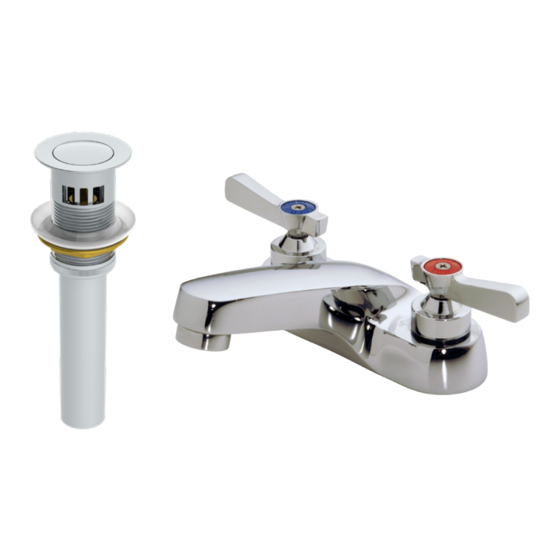

Symmons Symmetrix S2502 Series Operation & Maintenance Manual

Lavatory Faucet
Operation & Maintenance Manual
Caution: Be sure to turn off hot and cold water supplies before
installing or servicing faucet.
Installation
Push faucet supplies with rubber gasket through holes
1.
in sink (make sure gasket [LL-126] is between faucet
and sink). Secure faucet to sink by tightening flange
nuts (LL-125) from underside. (If sink or counter
surface is uneven, use putty or sealant to make proper
seal under base.)
Connect hot supply to left tube and cold supply to
2.
right tube using appropriate connectors.

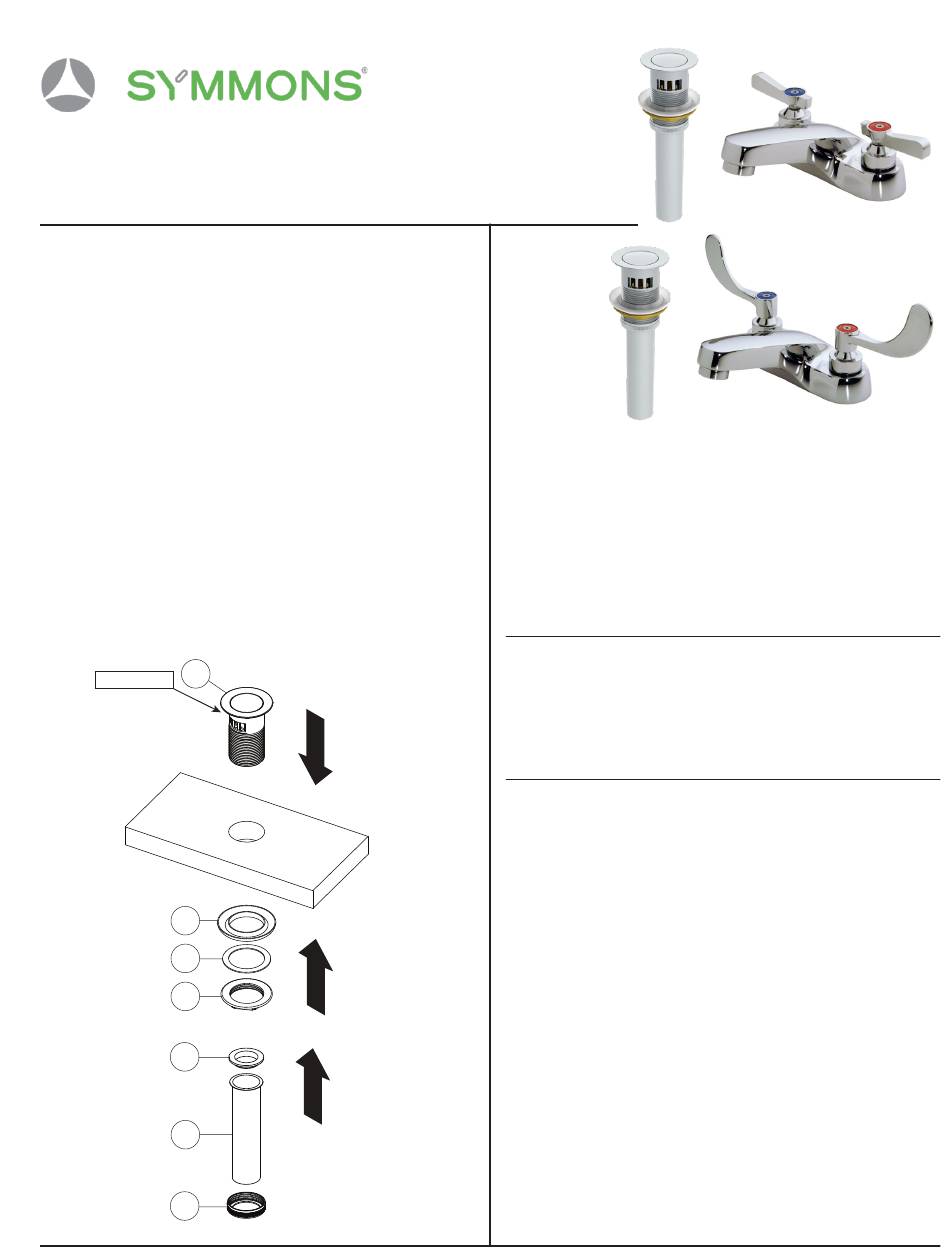

Push Pop Install:
3.
opening. From below, Tighten locking nut (O) with
gasket (M) and washer (N) to flange. Tighten tail nut
(Y) with washer (X) to secure tail pipe (Q).
DO NOT
overtighten.
L
Plumbers Putty
M
N
O
X
Q
Y
Symmetrix®
S2502 Series
Insert drain body (L) into drain
1
2
3
It is very important to thoroughly flush the supply
4.
lines to prevent foreign matter, i.e. copper chips, sand,
stones, etc. from damaging the sealing surfaces of car-
tridge. Remove aerator and open hot and cold to full
open then open both supplies. Let water run through
hot and cold long enough to flush supply lines thor-
oughly. Shut off faucet and replace aerator. Check for
leaks.
Replacing handle
Remove screw from top of handle. Remove red or blue
1.
washer and then remove handle (LL-122) or (LL-123).
. Reassemble handle (LL-122) or (LL-123) in reverse
2
fashion.
Replacing cartridge
Remove screw from top of handle. Remove red or blue
1.
washer and then remove handle (LL-122) or (LL-123).
Unthread cartridge cover (LL-127) from faucet.
2.
Place wrench on cartridge (LL-124) hex nut, turn
3.
wrench counter clockwise until cartridge is removed.
Install new cartridge (LL-124). Turn cartridge with
4.
wrench until cartridge does not turn easily then turn
1/4 to 1/2 turn further.
Reassemble cartridge cover (LL-127).
5.
Reassemble (LL-122) or (LL-123) handle in reverse
6.
fashion.
S2502PP
S2502PPLWG
