361SH, 362SH
Showerhead Series
Operation & Maintenance Manual
Model Number
☐
361SH
4" 1 Mode Showerhead
☐
362SH
3" 1 Mode Showerhead
Modifications
☐
-1.5
CG
1.5 gpm (5.7 L/min) flow restrictor
☐
-2.0
2.0 gpm (7.6 L/min) flow restrictor
☐
-BBZ
Brushed Bronze finish
☐
-MB
Matte Black finish
☐
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.
Dimensions
361SH
362SH
Note: Dimensions subject to change without notice.
Duro
A A
D D
®
Specification
•

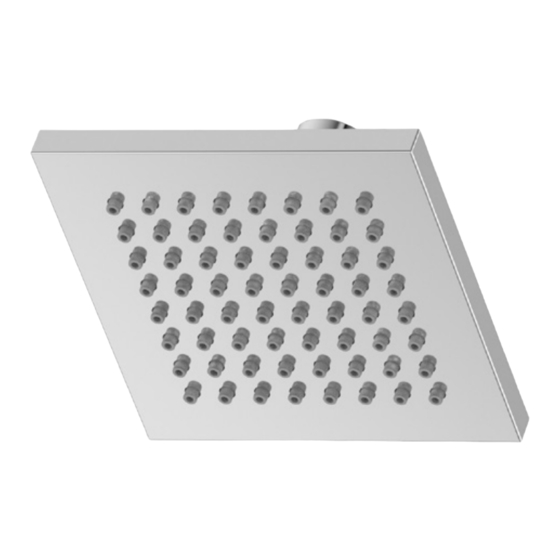

4" 1 mode showerhead (361SH)
•
3" 1 mode showerhead (362SH)
•
Easy to clean rubber nozzles
•
2.5 gpm (9.5 L/min) standard flow restrictor
•
Plated in standard polished chrome finish
Compliance
- ASME A112.18.1/CSA B125.1
- WaterSense 1.5 gpm, 2.0 gpm
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
B B
C C
E E
F F
Measurements
A
Sq. 4", 102 mm
B
2-1/8", 54 mm
C
1/2-14 NPT
D
3-1/2", 89 mm
E
3-1/2", 89 mm
F
1/2-14 NPT
Certi ed by
CSA Group
