SUTO S 600 Instruction And Operation Manual

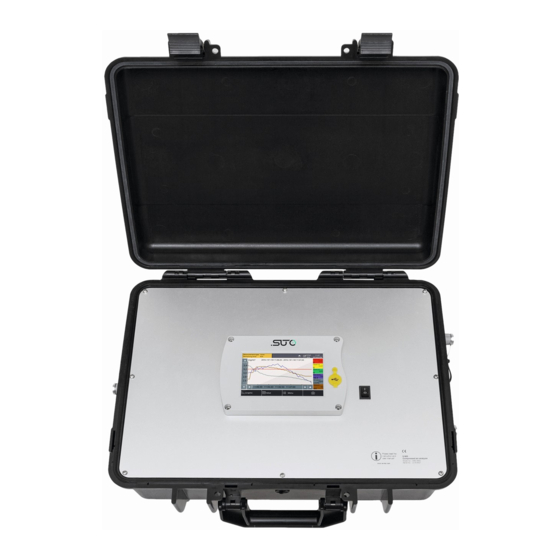

Portable compressed air purity analyzer
Hide thumbs Also See for S 600:
Table of Contents

Advertisement

Quick Links

Download this manual
English
Instruction and operation manual
S 600
Portable compressed air purity analyzer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S 600 and is the answer not in the manual?

Questions and answers

Related Manuals for SUTO S 600

Summary of Contents for SUTO S 600

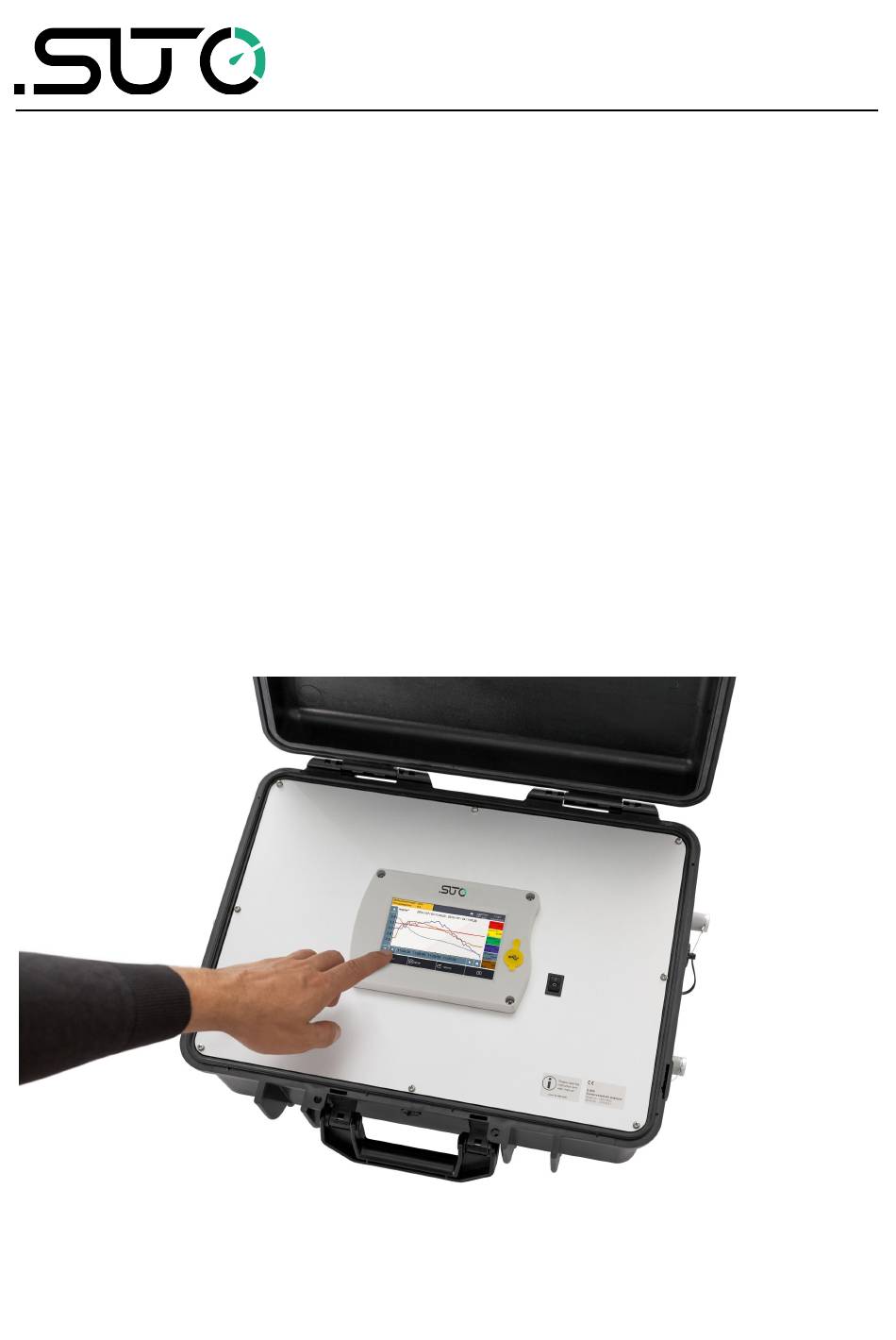

  • Page 1 English Instruction and operation manual S 600 Portable compressed air purity analyzer...
  • Page 2 The device is designed exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.

  • Page 3: Table Of Contents

    8.3.1 Files................25 8.3.2 Service Info ..............25 8.3.3 System Setting...............26 8.4 Icons in the status bar............27 9. Guided measurement..............27 9.1 Steps for guided measurement..........29 9.2 Reports for guided measurements...........33 10. Optional accessories..............34 11. Maintenance................34 12. Disposal or waste..............34 13. Warranty................34 S 600...

  • Page 4: Safety Instructions

    • Any contact with energized parts of the product, may lead to a electrical shock which can lead to serious injuries or even death! • Consider all regulations for electrical installations. • The system must be disconnected from any power supply during maintenance work. S 600...
  • Page 5 • Always observe the direction of the flow when installing the sensor. The direction is indicated on the housing. • Do not exceed the maximum operation temperature at the sensors tip. • Avoid condensation on the sensor element as this will affect the accuracy enormously. S 600...
  • Page 6 • Observe the measuring point always before measurement if it is free of contamination like water drops, oil drops or other rough contaminations. • Should water hit the inner electronics, the senors could be seriously damaged. • Check your measurement point with the enclosed test kit. S 600...
  • Page 7 1. Safety instructions ATTENTION! Overpressure! Remove always all protection caps before connecting the compressed air to the inlet. S 600...

  • Page 8: Application

    The S 600 is mainly used in industrial environments, and is not developed to be used in explosive areas. For the use in explosive areas, please contact the manufacturer.

  • Page 9: Technical Data

    Dew point Ceramic humidity sensor, oscillating crystal Oil vapor Volume flow Thermal mass flow (Anemometer) Medium Compressed air, non corrosive components Humidity of the < 40%, non condensation medium Temp. of the 0 °C ... 50 °C medium S 600...

  • Page 10: Electrical Data

    100% @ 0.4 ... 5.0 µm (per JIS) Dew point ± 2° C Oil vapor 5% of value ± 0.003 mg/m Volume flow ± 2 % of value ± 0.3 % of range Temperature ± 0.1 K Pressure ± 0.08 bar S 600...

  • Page 11: Dimensions

    5. Dimensions 5. Dimensions Dimensions S 600 in mm (cover closed): S 600...
  • Page 12 5. Dimensions Dimensions isokinetic sampling device (option) in mm: S 600...
  • Page 13 5. Dimensions 3D view of the S 600 and the isokinetic sampling device: S 600...

  • Page 14: Installation On Site

    The tubes should be not bended too strong and be installed with a big curve radius to avoid turbulence in the air flow. The isokinetic sampling device must be set up next to the S 600 to get a straight and short connection. Please observe the following chapter, connecting the isokinetic sampling device to the S 600.
  • Page 15 2. Check the filter in the test kit to see if it shows high contamination of water, oil or dust. 3. If the filter is contaminated severely, stop using the S 600 for measurement because this may lead to serious damage to the device.
  • Page 16 ATTENTION! Always use the 6 mm Teflon hose adapter to connect the teflon hoses to the S 600 and to the isokinetic sampling device! You may damage the device if not used. Directly plugging and pulling the teflon hose more than once may lead to particle contamination, which can affect the measurement.

  • Page 17: Connection With The Optional Isokinetic Sampling Device

    6. Installation on site 6.2 Connection with the optional isokinetic sampling device The picture above shows the S 600 setup with the isokinetic sampling device connected. Please connect the isokinetic sampling device using the teflon hose delivered with the device. On the next page you can find the detailed description of the sampling device.

  • Page 18: Connection Without The Isokinetic Sampling Device

    6.3 Connection without the isokinetic sampling device Connect your compressed air system using two teflon hoses to the corresponding inlets at the S 600. They are marked: Gas inlet Oil / Dew point measurement and Gas inlet Particle measurement. S 600...

  • Page 19: Electrical Connections

    6. Installation on site 6.4 Electrical connections The S 600 offers three types of electrical connections. The power supply connector 1, the communication port for the isokinetic sampling device 2 and an Ethernet port 3 to communicate with network devices.

  • Page 20: Compressed Air Connections (Inlet And Outlet)

    6. Installation on site 6.5 Compressed air connections (inlet and outlet) The S 600 offers two compressed air inputs on the right side of the housing. The inlets are shown on the picture above and are marked respectively to their functions: Gas inlet Oil / Dew point measurement and Gas inlet Particle measurement.
  • Page 21 Also the other two outlets need to be opened before connected to the compressed air. Note! All gas outlets of the measurement device must stay opened during the complete usage of the device. S 600...

  • Page 22: Setup And Configuration

    7. Setup and configuration 7. Setup and configuration The S 600 is configured ex-works and ready to work out of the box. The S 600 provides a guided measurement procedure to guide you through device setup for each measurement parameter. All these setup settings are automatically saved into the device even after a power failure.

  • Page 23: Value View

    Value in the bottom. Note: During the first five minutes, the S 600 performs a purge process to ensure any remaining particles in the system are blown out. During this period, the counting numbers on the Particle pane appear green and blink.

  • Page 24: Graphic View

    Menu in the bottom bar. The screen with sub- menus is shown. The main menu offers the access to the following sub-menus. Guided To start the guided measurements, which lead you Measurement through a complete measurement cycle. For more S 600...

  • Page 25: Files

    Communication To perform field bus settings and configure communication parameters 8.3.1 Files The files menu shows all screenshots for you to view, export, and delete them. You can also check the memory status. 8.3.2 Service Info Shows contact information for technical support. S 600...

  • Page 26: System Setting

    Calibrate touch To calibrate the touch screen if it does not screen respond to user inputs correctly or precisely, it can be calibrated. Language To select the interface language. Date time To configure date and time. S 600...

  • Page 27: Icons In The Status Bar

    - STOP—Indicates that the data logger is not running. - LOG—Indicates that the data logger is running. 9. Guided measurement The S 600 provides a software-based guided measurement which takes you through the complete measurement. This leads to a simplified measurement process and prevents you from wrong measurements.
  • Page 28 3. Perform the guided measurement following the onscreen instructions. For more information, see section 9.1 Steps for guided measurement. 4. To view and manage the measurement files generated, click Report Manager. For more information, see section 9.2 Reports for guided measurements S 600...

  • Page 29: Steps For Guided Measurement

    Select Yes if you have the isokinetic sampling device connected. Otherwise, click No. 3. Input your data, which will be then shown on the report. S 600...
  • Page 30 6. Enter how long the measurement will take. The longer it takes, the more stabilized the values will be and the more exactly it will represent the system conditions. S 600...
  • Page 31 The following 3 steps only apply if you select Yes for the isokinetic sampling device, otherwise skip the next 3 steps 1. The S 600 is now ready for measurement. Please read the instructions shown on the screen carefully.
  • Page 32 2. Follow the onscreen instructions to proceed. 3. Perform Isokinetic setup as instructed on the screen. Now the device is well set up and starts to measure data. The remaining time is shown on the top left corner. S 600...

  • Page 33: Reports For Guided Measurements

    (not the check box on the right). A window appears showing the PDF for your preview. To copy, export , or • delete files, select the file check boxes, and then click the corresponding button at the bottom. S 600...

  • Page 34: Optional Accessories

    13. Warranty SUTO provides a warranty for this product of 24 months covering the material and workmanship under the stated operating conditions from the date of delivery. Please report any findings immediately and within the warranty time.
  • Page 35 • If the warranty sealing is removed or damaged. Other claims, especially those for damage occurring outside the instrument are not included unless responsibility is legally binding. Warranty repairs do not extend the period of warranty. ATTENTION! Batteries have a reduced warranty time of 12 months. S 600...
  • Page 36 SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Werkstr. 2 Room 10, 6/F, Block B, Cambridge Plaza 79426 Buggingen 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7631 936889-0 Tel: +852 2328 9782 Fax: +49 (0) 7631 936889-19...
