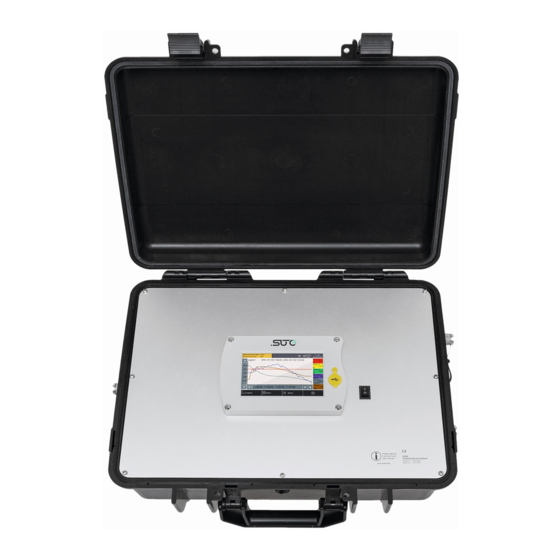

SUTO S 600 Instruction And Operation Manual
Portable compressed air purity analyzer
Hide thumbs
Also See for S 600:
- Instruction and operation manual (48 pages) ,
- Instruction and operation manual (36 pages) ,
- Instruction and operation manual (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for SUTO S 600
Summary of Contents for SUTO S 600

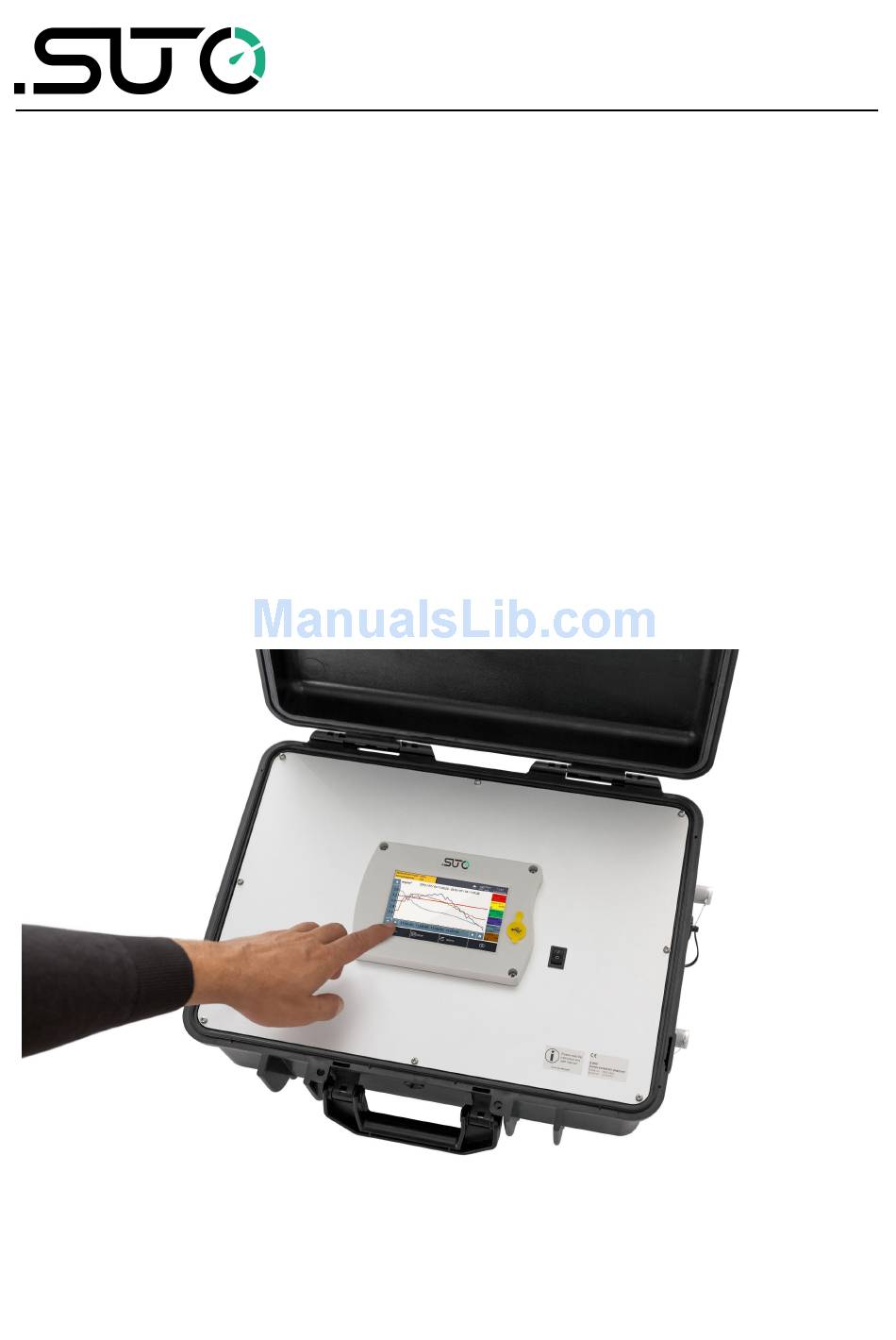

- Page 1 English Instruction and operation manual S 600 Portable compressed air purity analyzer...
- Page 2 The device is destined exclusively for the described application. SUTO iTEC GmbH offers no guarantee for the suitability for any other purpose. SUTO iTEC GmbH is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
4.3 Accuracy................10 5. Dimensions................11 6. Installation on site..............14 6.1 Installation requirements............14 6.2 Connecting the isokinetic sampling device to the S 600 analyzer (Option)..................17 6.3 Using the S 600 without the isokinetic sampling device....19 6.4 Electrical connections on the S 600.........19 6.5 Compressed air connections (In and outlet)......20... -
Page 4: Safety Instructions
• Any contact with energized parts of the product, may lead to a electrical shock which can lead to serious injuries or even death! • Consider all regulations for electrical installations. • The system must be disconnected from any power supply during maintenance work. S 600... - Page 5 • Always observe the direction of the flow when installing the sensor. The direction is indicated on the housing. • Do not exceed the maximum operation temperature at the sensors tip. • Avoid condensation on the sensor element as this will affect the accuracy enormously. S 600...
- Page 6 • Please make sure that the storage temperature of the sensor is between -10°C... 50°C. • Avoid direct UV and solar radiation during storage. • For the storage the humidity has to be <90%, no condensation. S 600...
- Page 7 • Should water hit the inner electronics, the senors could be seriously damaged. • Check your measurement point with the enclosed test kit. ATTENTION! Overpressure! Remove always all protection caps before connecting the compressed air to the inlet. S 600...
-
Page 8: Application
(particle quantity, dew point, temperature, pressure, oil vapor content) of a compressed air system. The S 600 is not developed to be used in explosive areas. For the use in such areas, please contact the manufacturer. -
Page 9: Technical Data
Laser optical detection quantity Dew point Ceramic humidity sensor, oscillating crystal Oil vapor Volume flow Thermal mass flow (Anemometer) Medium Compressed air, non corrosive components Humidity of the < 40%, not condensing medium Temp. of the 0°C... 50°C medium S 600... -
Page 10: Electrical Data
100% @ 0,4... 5,0 µm (per JIS) Dew point ± 2° Oil vapor 5% of value ± 0,003 mg/m Volume flow ± 2 % of value ± 0,3 % of range Temperature ± 0,1 K Pressure ± 0,08 bar S 600... -
Page 11: Dimensions
5. Dimensions 5. Dimensions Dimensions S 600 in mm (cover closed): S 600... - Page 12 5. Dimensions Dimensions isokinetic sampling device (option) in mm: S 600...
- Page 13 5. Dimensions 3D view of the S 600 and the isokinetic sampling device: S 600...
-
Page 14: Installation On Site
The tubes should be not bended to strong and be installed with a big curve radius to avoid turbulences in the air flow. The isokinetic sampling device must be set up next to the S 600 to get a straight and short connection. Please observe the following chapter, connecting the isokinetic sampling device to the S 600. - Page 15 Should the filter be contaminated to high do not continue to measure with the S 600 as this may lead to serious damage. In case you are not sure, please contact the manufacturer.
- Page 16 ATTENTION! Always use the 6 mm Teflon hose adapter to connect the teflon hoses to the S 600 and to the isokinetic sampling device! You may damage the device if not used. Using a quick connector more than once may lead to particle contamination which can affect the measurement.
-
Page 17: Connecting The Isokinetic Sampling Device To The S 600 Analyzer (Option)
(Option) The picture above shows the setup together with the isokinetic sampling device connected to the S 600. Please connect the isokinetic sampling device using the teflon hose which came with the device. On the next page you will find a detailed description of the sampling device. Also you will find which outlets of the sampling device need to be connected to which input at the S 600. - Page 18 (quick connector, teflon hose, etc.). Connect your compressed air system using the correct fitting to the inlet 1. Connect the outlet valve 2 to the inlet for dew point and oil vapor measurement at the S 600 using a teflon hose. S 600...
-
Page 19: Using The S 600 Without The Isokinetic Sampling Device
6.3 Using the S 600 without the isokinetic sampling device Connect your compressed air system using two teflon hoses to the corresponding inlets at the S 600. They are marked: Gas inlet Oil / Dew point measurement and Gas inlet Particle measurement. -
Page 20: Compressed Air Connections (In And Outlet)
6. Installation on site 6.5 Compressed air connections (In and outlet) The S 600 offers two compressed air inputs on the right side of the housing. The inlets are shown on the picture above and are marked respectively to their functions: Gas inlet Oil / Dew point measurement and Gas inlet Particle measurement. -
Page 21: Setup And Configuration
These two outlets need to be opened during the measurement. 7. Setup and configuration The S 600 is configured ex work and ready to measure as you receive it. There are no additional setups which must be done by the user. The setup of the single measurement rows are done during the measurement, as the user is guided through the single steps. -
Page 22: Operation
If you are facing problems setting up you device, please feel free to contact the manufacturer or your local dealer for assistance. 8. Operation When the S 600 gets powered you will see the start up screen. The progress bar shows, that... -
Page 23: Value Screen
By pressing the camera symbol, you are able to take screenshots. 8.1 Value screen In this view, the S 600 shows all measured values in realtime. The user can switch to the value screen by pressing value in bottom bar. It will show the measured values in realtime. -
Page 24: The Menu
System error, press the connected. By pressing button to get further the icon the stick can informations. be ejected. Calibration is overdue, please contact the The S 600 is connected manufacturer of your to a PC by USB cable. local dealer. S 600... -
Page 25: Graphic View
In case something needs to be changed, it can be easily done by following the instructions above. 8.6 Files The files menu shows the user the screenshots. The screenshots can be shown, exported and deleted. At the same time the memory status can be checked. S 600... -
Page 26: Service Info
8. Operation 8.7 Service Info Shows contact informations in case support is needed. 8.8 System Setting General settings can be done in this menu. For this click the corresponding buttons. S 600... -
Page 27: Report Menu
PDF preview. If you mark the file on the right side box, you will see the bottom menu and you can copy the PDF report or the raw data to a connected USB OTG stick. S 600... -
Page 28: Guided Measurement
9. Guided measurement 9. Guided measurement The S 600 provides a software based guided measurement which will lead the user trough the complete measurement. This leads to a simplified measurement process and prevents the user from wrong measurements. The guided measurement is started by clicking the menu button guided measurement. -
Page 29: Guided Measurement
Then you can decide if you want to keep the data or if you want to delete the data. This can be used to monitor values and to see if there are any changes. 9.1 Guided measurement A overview will be given about the selected measurement type. S 600... - Page 30 The ambient conditions like the sea level are needed to be defined. Also the oil type can be selected (Isobutylene is recommended as this will meet the most oil characteristics). S 600...
- Page 31 It has to be defined how long the measurement should take. The longer it takes, the more the values are stabilized and represent the system conditions exactly. S 600...
- Page 32 The following 3 steps only apply if you selected yes for the isokinetic sampling device, otherwise skip the next 3 steps The S 600 is now ready for measurement. Please read the instructions shown on the screen carefully.
- Page 33 Logging is indicated by the pens moving on the screen. Also the status bar icon switches from STOP to LOG. The remaining time is displayed in the upper left corner. Please wait. The system will stop the measurement automatically. S 600...
-
Page 34: Optional Accessories
Electronic devices are recyclable material and do not belong in the household waste. The sensor, the accessories and its packings must be disposed according to your local statutory requirements. The dispose can also be carried by the manufacturer of the product, for this please contact the manufacturer. S 600... -
Page 35: Warranty
13. Warranty 13. Warranty SUTO iTEC GmbH provides a warranty for this product of 24 months covering the material and workmanship under the stated operating conditions from the date of delivery. Please report any findings immediately and within the warranty time. If faults occurring during the... - Page 36 SUTO iTEC GmbH CS-iTEC Co., Ltd. Werkstr. 2 Room 10, 6/F, Block B, Cambridge Plaza 79426 Buggingen 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7631 936889-0 Tel: +86 (0) 755 8619 3164 Fax: +49 (0) 7631 936889-19...
