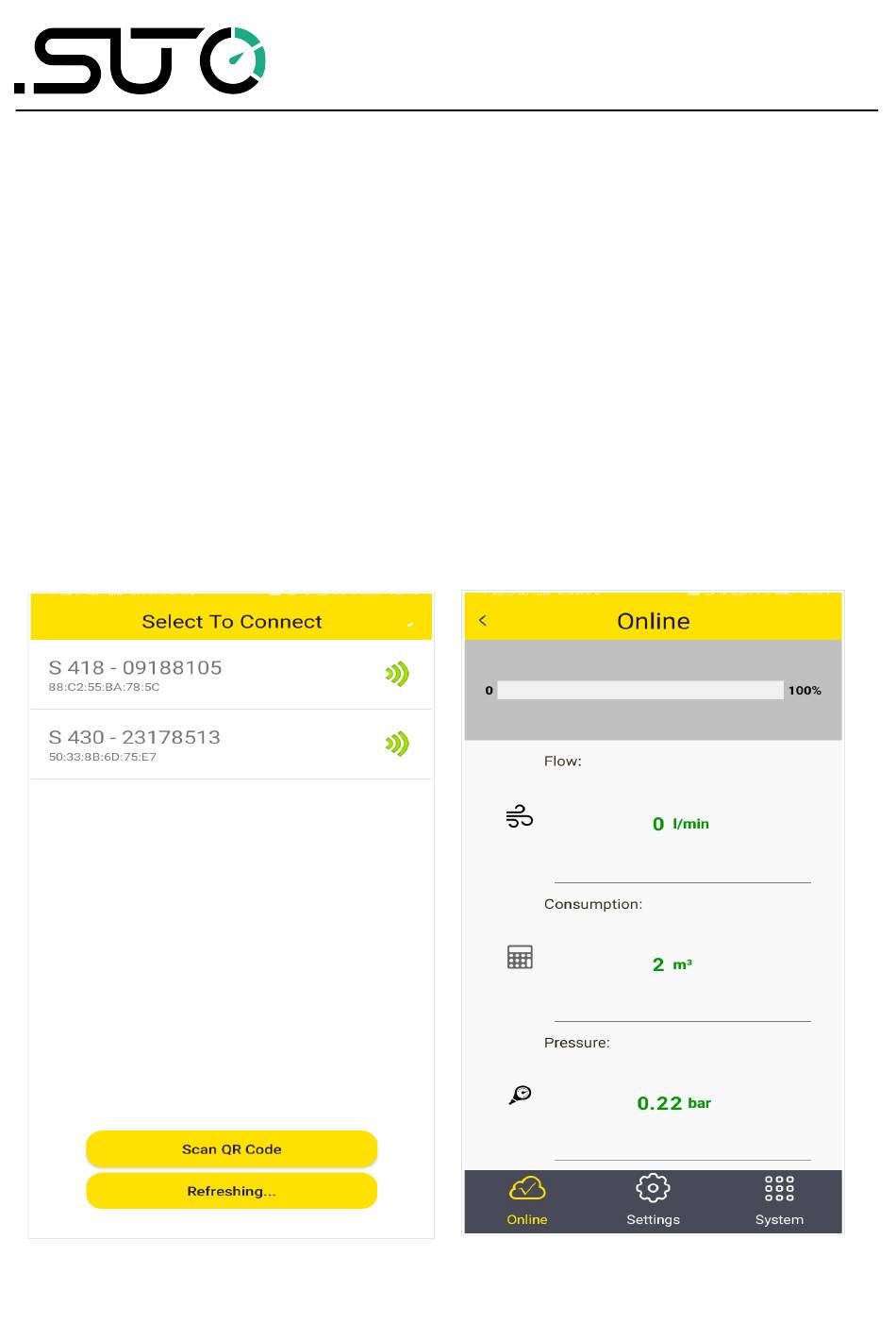

- Page 1 English Instruction and Operation Manual S4C-FS Smartphone App for Air and Gas Flow Meter...
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
6.4 Reference conditions............14 6.5 Factory settings..............14 6.6 Counter settings..............15 6.7 Output settings..............15 6.8 Calibration................17 6.8.1 Calibration type............17 6.8.2 Calibration parameters..........17 6.9 Logger settings..............18 6.10 Upload settings..............18 6.11 Download settings.............18 7 System..................19 7.1 Sensor information..............19 7.2 Language................19 7.3 App version................19 8 Maintenance................20 S4C-FS... -
Page 4: Registered Trademarks
1 Registered trademarks 1 Registered trademarks Trademark Trademark owner SUTO ® SUTO iTEC MODBUS ® Modbus Organization, Hopkinton, USA HART ® HART Communication Foundation, Austin, USA Android™, Google LLC Google Play S4C-FS... -
Page 5: Application
2 Application 2 Application The S4C-FS is an app that enables you to view measurement readings and change settings for SUTO flow meters through Android or iOS devices. The S4C-FS supports the following SUTO flow meters: • S401, S402 and S421 •... -
Page 6: Features
When the S4C-FS detects a flow meter for the first time, the S4C-FS has the Read-only access to the flow meter and can only view readings and settings. -
Page 7: Enable The Configuration
4 Installation and connection Note: The S4C-FS can detect and connect to multiple flow meters. A flow meter can connect to only one Android or iOS device at a time. 4.2 Enable the configuration Before using the S4C-FS App to configure or calibrate flow meters, you must obtain configuration permissions. -
Page 8: Register For Configuring S431
4.2.2 Register for configuring S431 This function is only applicable to the S431. Before using the S4C-FS App to configure or calibrate the S431, you must register. Only registered users are able to modify settings. Please get in touch with SUTO service teams and provide the required registration information. -
Page 9: Menus
5 Menus 5 Menus On the main screen of S4C-FS, click on a flow meter record to enter the sensor screen. The screen provides three menus at the bottom for you to operate: Online, Settings, and System. S4C-FS... -
Page 10: Online
5.2 Settings The Settings menu enables you to change sensor settings and calibrate a sensor. The Settings menu is enabled only when the S4C-FS is completed with scanning the QR code of the flow meter. SUTO flow meters provide various settings which influence the performance and the features of the flow meters. -
Page 11: System
• Logger settings For more information about the settings, see chapter 6 on page 11. 5.3 System The System menu enables you to view or configure information of the flow meter and S4C-FS: • Sensor Info • Language • Version For more information, see chapter 7 on page 19. -
Page 12: Gas Type
O, Ar, Natural gas, CH , Propane, Butane, Others S415 Air, N S418 Air, CO O, Ar, Natural gas, CH , Propane, Butane, Others S418-V S431 Wet/dry air, Others 6.3 Units settings To set units for flow, pressure, temperature, and consumption. S4C-FS... -
Page 13: Flow Units
6.3.2 Pressure units Flow meter Pressure units S401 S402 S421 S430 bar, psi, MPa S415 S418 bar, psi S418-V bar, psi S431 bar, psi, kPa, MPa 6.3.3 Temperature units Flow meter Temperature units S401 S402 S421 S430 °C, °F S415 S418 S4C-FS... -
Page 14: Consumption Units
These settings are ex-factory and not changeable by users. Parameter Remarks Filter grade Enter a value between 0 … 127 as the filter grade. It's a damping of the flow value which is used to stabilize the flow rate in systems S4C-FS... -
Page 15: Counter Settings
- 1 pulse per 100 consumption unit Modbus/RTU Description Device address Each device must have a unique device address within (1 ... 247) with the ex-factory value of 1. Baudrate Select a baud rate from: 1200, 2400, 4800, 9600, 19200 (default), 38400, 57600, 115200 S4C-FS... - Page 16 Shows TCP/Server, identifying that the flow meter works Connection as a TCP server. Read only Setting LocalPort Shows the port number used for communication between the server and client. Default: 502 If needed, you can change the port number. Range: 0 … 65535 S4C-FS...
-
Page 17: Calibration
(1 point). For VSD compressors there are up to 5 calibration points available. It's recommended to select them over the range of 10%...100%. In general 3 points should be sufficient (10%, 50%, 90%). Act. Flow This is the flow without the user calibration as it is measured. S4C-FS... -
Page 18: Logger Settings
Calibration points are sorted and user can delete any of the calibration points. 6.9 Logger settings When a flow meter comes with the data logger, you can use the S4C-FS to change logger-related settings of the flow meter. Parameter Remarks Logger Status To enable or disable the logger function. -
Page 19: System
Production date Calibration date Option name Bi-directional measurement Hardware version Firmware version 7.2 Language To set the language for S4C-FS. Language Sprache Langue 语言 English Deutsch Francais 中文 7.3 App version To view the current version of the S4C-FS. S4C-FS... -
Page 20: Maintenance
Please check whether the latest version is installed on your device. For Android device, you can download the latest version from Google Play Store or the SUTO Website. For iOS device, download the App from Apple App Store. SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd.
