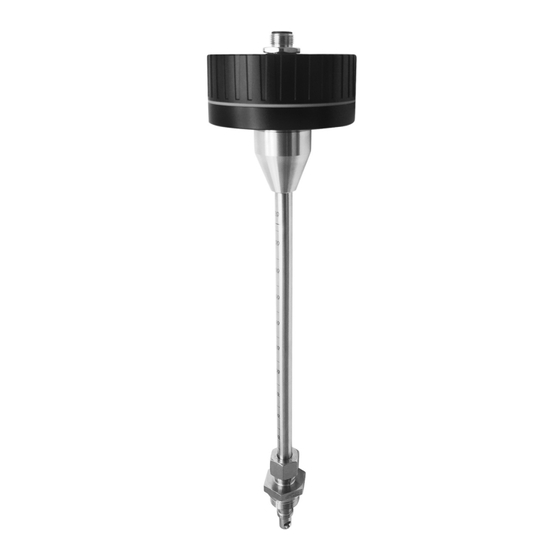

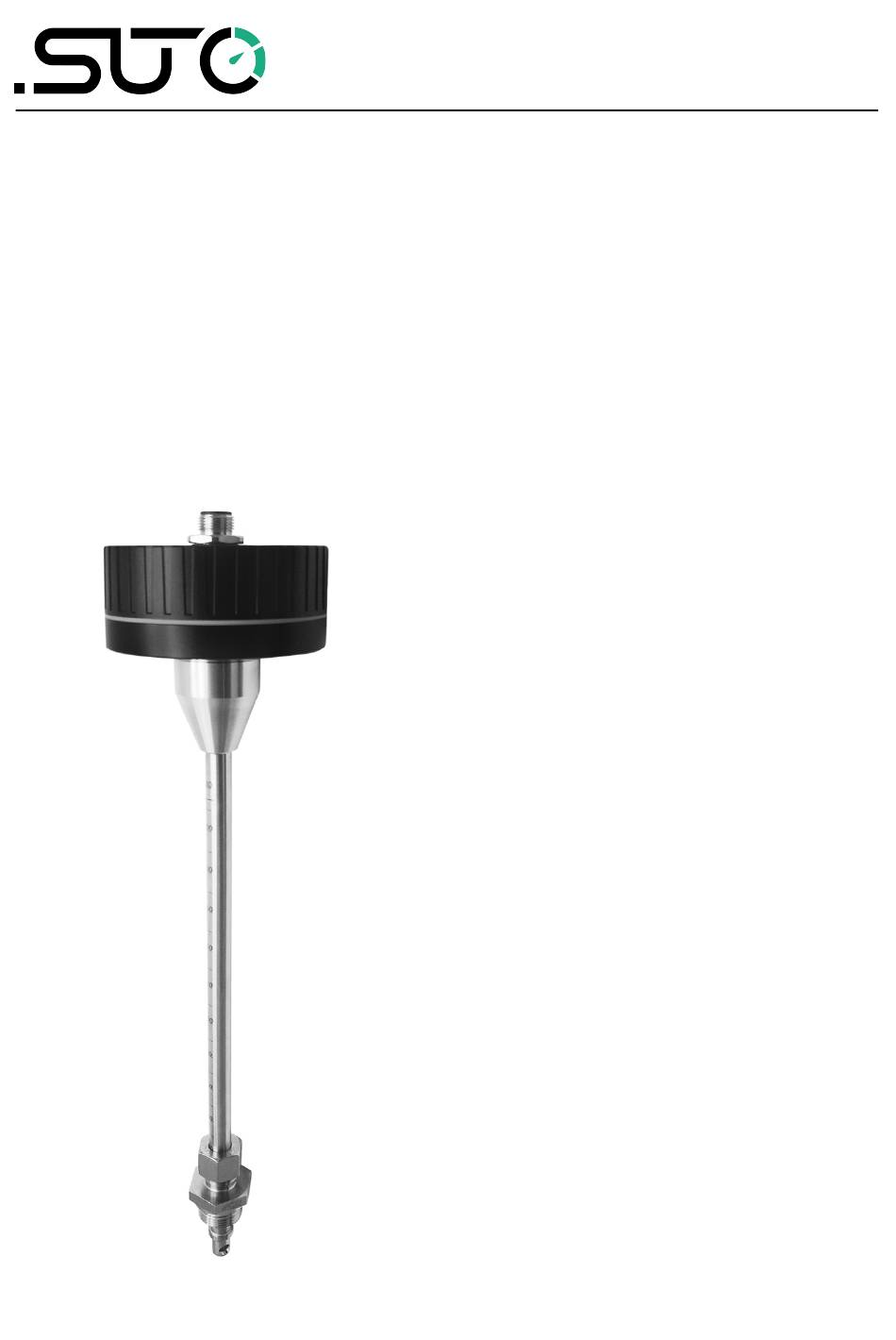

- Page 1 English Instruction and Operation Manual S402 Thermal Mass Flow Meter (Insertion)
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
9.3 Electrical connection..............21 10 Sensor signal outputs..............23 10.1 Analog output..............23 10.2 Pulse output...............23 10.2.1 Pulse connection diagram..........25 10.3 Modbus Interface..............26 10.3.1 Modbus settings registers..........28 10.3.2 Values registers............29 11 Service App S4C-FS..............30 12 Calibration................31 13 Maintenance................31 14 Disposal or waste..............31 S402... -
Page 4: Safety Instructions
• Consider all regulations for electrical installations. • The system must be disconnected from any power supply during maintenance. • Any electrical work on the system is only allowed by authorized qualified personal. S402... - Page 5 • Always observe the direction of the flow when installing the flow meter. The direction is indicated on the housing. • Do not exceed the maximum operation temperature at the sensor probe tip. • Avoid condensation on the sensor element because this will affect accuracy enormously. S402...
-
Page 6: Registered Trademarks
• Avoid direct UV and solar radiation during storage. • For the storage the humidity must be <90%, no condensation. 2 Registered trademarks SUTO ® Registered trademark of SUTO iTEC MODBUS ® Registered trademark of the Modbus Organization, Hopkinton, USA Android™,... -
Page 7: Rf Exposure Information And Statement
• Consult the dealer or an experienced radio/TV technician for help 。 • This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. S402... -
Page 8: Application
4 Application 4 Application The S402 is a flow meter that is designed to measure the consumption of compressed air and gases within the permissible operating parameters. These parameters can be found in chapter 6 Technical data. The S402 can measure the following values: •... -
Page 9: Technical Data
6 Technical data 6 Technical data 6.1 General FCC ID：2ASK2-SUTO-005 Parameters Standard unit flow: m Other units: m /min, l/min, l/s, cfm, kg/h, kg/min, kg/s Consumption units: m , ft , kg Reference conditions ISO1217 20°C 1000 mbar (Standard-Unit) DIN1343 0°C 1013.25 mbar (Norm-Unit) -
Page 10: Output-Signals
Temperature drift: < 0.05%/K Stated accuracy at Ambient/process temperature 23°C ± 3°C Ambient/process humidity <90% Process pressure at 0.6 MPa(g) Repeatability ±0.25% of reading Specified accuracy is valid only within the minimum and maximum flow rates that are indicated in section 6.5. S402... -
Page 11: Volumetric Flow Ranges
6 Technical data 6.5 Volumetric flow ranges The measuring ranges are stated under the following conditions: • Standard flow in air • Reference pressure: 1000 hPa • Reference temperature: 20°C Inch Inner S402-S S402-M diameter (m³/h) (m³/h) (mm) 1" DN25 27.3... -
Page 12: Dimensional Drawing
7 Dimensional drawing 7 Dimensional drawing S402... -
Page 13: Determining The Installation Point
• The flow meter is for indoor use only! At an outdoor installation, the flow meter must be protected from solar radiation and rain. • It is strongly recommend not to install S402 permanently in wet environment, which exists usually right after a compressor outlet. - Page 14 8 Determining the installation point • Expansion • Reduction • 90° bend • 2 x 90° bend • 3 dimensional bend • T-piece • Shut-off valve • Filter or similar (unknown objects) S402...
-
Page 15: Installing The Sensor
9 Installing the flow meter Before installing the flow meter, please make sure that all components listed below are included in your package. Qty Description Item no. S402 OEM Thermal Mass S695 4105 Flow Meter Copper gasket sealing ring Alignment key... -
Page 16: Installation
OD is Outer Diameter of the pipe y=length of the ball valve Calculation example: A 2”-diameter pipe and an 87 mm- length ball valve: OD=60.3 mm 60.3 mm =30.15 mm y=87 mm ; Insertion depth = 30.15 mm +87 mm=117.15 mm S402... - Page 17 = wall thickness of pipe y = length of the ball valve Calculation example: A 12”-diameter pipe with the wall thickness of 9 mm An 87 mm-long ball valve x=9 mm ; y=87 mm Insertion depth = 9 mm+ 87 mm+100 mm=196 mm S402...
-
Page 18: Installing The Sensor
7. Tighten the locking nut by hand so that the flow meter cannot be moved by the pressure in the pipe. Note: The locking nut is a hex nut with the adjacent edge angle of 60 degrees. See the figure on the next page. S402... - Page 19 120 degrees clockwise. Note: If there is still gas leakage after the above steps, use a wrench to continue to turn the locking nut clockwise by 30 degrees. S402...
-
Page 20: Install Safety Line
9 Installing the flow meter 9.2.3 Install safety line The S402 comes with a safety line made by steel to prevent from shooting out while being uninstalled. Follow the steps below to install the safety line. Preparation The safety line and its components are shown on the left. -
Page 21: Removing The Sensor
5. Close the ball valve. 6. Release the connection thread and unscrew the flow meter. 9.3 Electrical connection The S402 provides an M12 connector, which has 5-pin or 6-pin depending on the output signal type you choose. Remark: For the 5-pin M12 version, the delivery package is supplied with a 5- pore M12 connector by default;... - Page 22 Active pulse output (related to -VB) active Isolated pulse output (switch) Modbus data + Modbus data - M-Bus M-Bus data Not applicable ATTENTION! Do not screw the M12 plug using force. Otherwise, it may damage the connecting pins. S402...
-
Page 23: Sensor Signal Outputs
The flow meter will send out one pulse per consumption unit. This pulse output can be connected to an external pulse counter to count the total consumption. The number of m per second are summed up and indicated after one second. Pulse length depends on flow rate. S402... - Page 24 10 Signal outputs In case that the flow rate is too high and the S402 cannot output pulses with the default settings (one pulse per one consumption unit), use our mobile service app S4C-FS to set the pulse output to 1 pulse per 10 consumption units or 1 pulse per 100 consumption units.
-
Page 25: Pulse Connection Diagram
10 Signal outputs 10.2.1 Pulse connection diagram The pulse connections for 6-pin M12 connector are shown below. The pulse connection for 5-pin M12 connector is shown below. S402... -
Page 26: Modbus Interface
(EMMMMMMM *) SEEEEEEE) Byte 0 Byte 3 UINT32 1-0-3-2 Byte 1 Byte 2 INT32 Byte 1 Byte 0 UINT16 INT16 Byte 1 Byte 0 UINT8 XXX * DATA INT8 * S: Sign, E: Exponent, M: Mantissa, XXX: no value S402... - Page 27 Available measurement channels: Length Register Channel description Resolution Format (Byte) address Medium temperature FLOAT Pipe pressure 0.001 FLOAT Velocity FLOAT Flow FLOAT Consumption UNIT32 Flow air FLOAT Consumption air UNIT32 System status UNIT32 Casing temperature FLOAT Bridge voltage (VBR) 0.001 FLOAT S402...
-
Page 28: Modbus Settings Registers
Write comment Register Byte Modbus 2001 2000 UInt16 Modbus ID 1...247 0=1200 1=2400 Baud 2=4800 2002 2001 UInt16 rate 3=9600 4=19200 5=38400 0=none 2003 2002 UInt16 Parity 1=even 2=odd Word 0xABCD=Big Endian 2005 2003 UInt16 0xCDAB order 0xCDAB=Mid Endian S402... -
Page 29: Values Registers
UINT32 Consumption in Nltr 1293 1292 UINT32 Consumption in cf 1299 1298 UINT32 Consumption in Ncf 1305 1304 UINT32 Consumption in kg 1347 1346 FLOAT Velocity in m/s 1355 1354 FLOAT Velocity in Nm/s 1363 1362 FLOAT Velocity in Ft/min S402... -
Page 30: Service App S4C-Fs
11 Service App S4C-FS S4C-FS is an Android-based mobile app that enables you to remotely view online measurements and change settings for SUTO flow meters. Download S4C-FS from the Google Play Store or SUTO website. To change settings, you need to scan the QR code on the calibration certificate using the app. -
Page 31: Calibration
The flow meter, the accessories and its packings must be disposed according to your local statutory requirements. The dispose can also be carried by the manufacturer of the product, for this please contact the manufacturer. S402... - Page 32 SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Grißheimer Weg 21 Room 10, 6/F, Block B, Cambridge Plaza D-79423 Heitersheim 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7634 50488 00 Tel: +852 2328 9782...
