Setting Up The FF CP Card

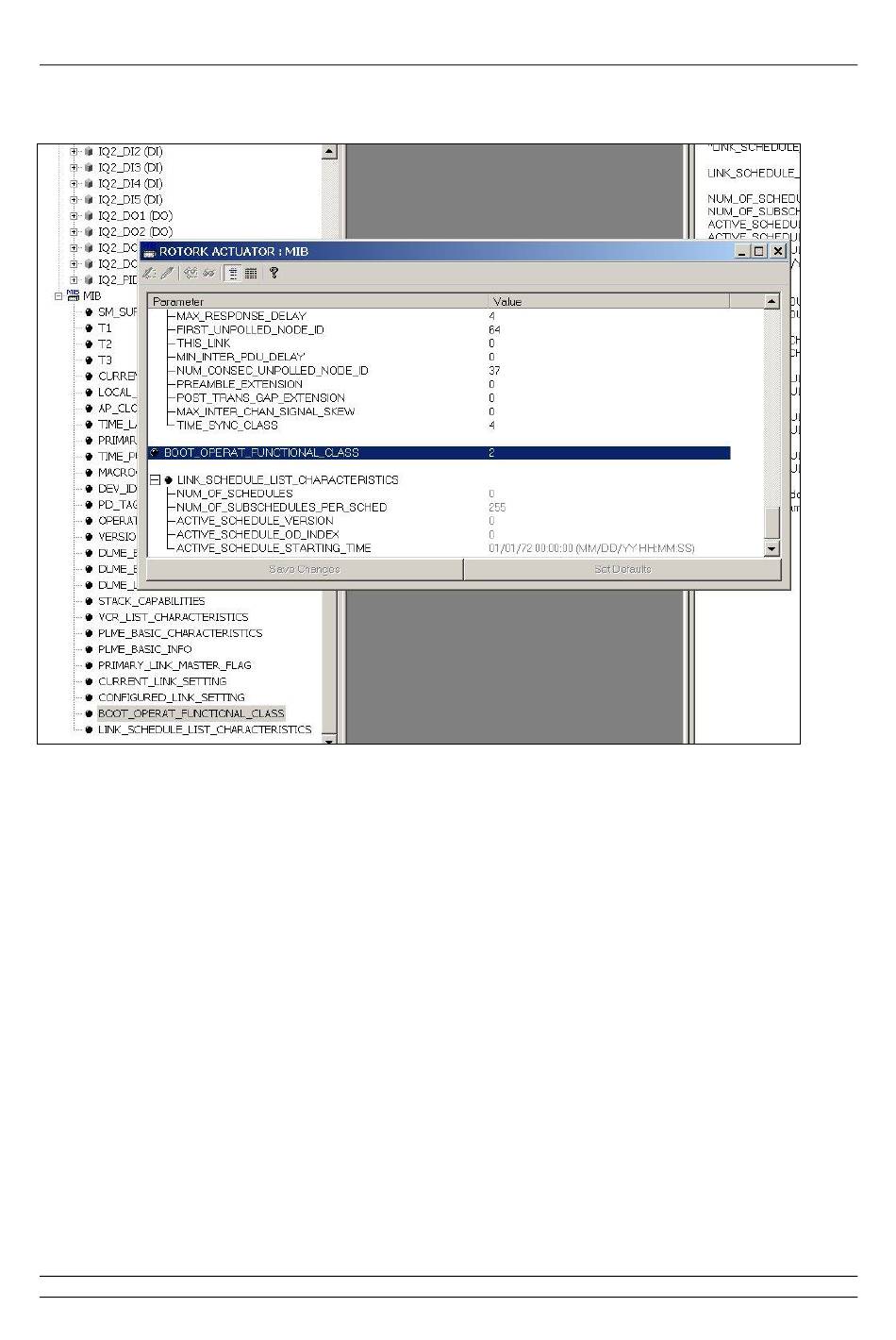

Fig 7.3: Management Information Base (MIB) showing BOOT_OPERAT_FUNCTIONAL_CLASS
Once the LM type has been selected, the configuration tool can be used to download the system
configuration. The schedule will reside in all the Link Masters and be executed by the one that is
active, the Link Active Scheduler. Should the LAS fail, then any of the remaining Link Master units is
able to take the role of LAS. This is usually the LM with the lowest address.
