RUGGEDCOM RST2228
Installation Guide
Communication Ports
The RUGGEDCOM RST2228 features four Small Form-factor Pluggable (SFP+) transceiver sockets for uplink
communications, as well as six slots for field-replaceable media modules. Modules can be used to expand and
customize the capabilities of the device to suit specific applications. A variety of modules are available, each
featuring a specific type of communication port: copper Ethernet, fiber optic Ethernet and SFP.
RUGGEDCOM ROS has the ability to analyze SFP types and port hardware capabilities at runtime. Different types of
SFP modules using different integrated MAC and PHY hardware are supported.
Modules can be installed in any one of the available slots in the device chassis.
Use RUGGEDCOM ROS to determine which ports are equipped on the device. For more information, refer to the
RUGGEDCOM ROS User Guide for the device.

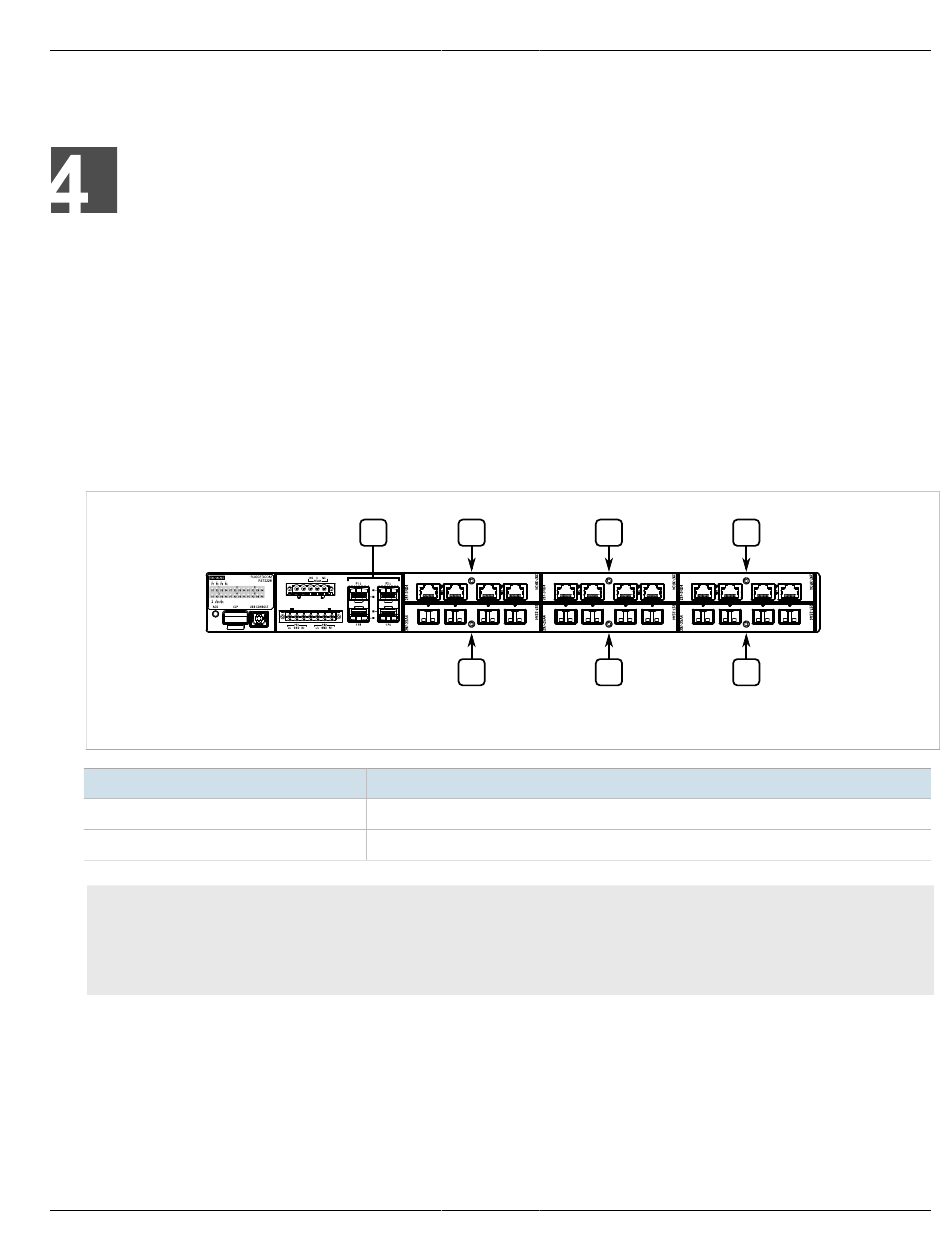

Figure 24: RUGGEDCOM RST2228 Fixed Ports and Module Slots
Slot
0
1 to 6
CONTENTS
•
Section 4.1, "SFP Transceivers"
•
Section 4.2, "Available Modules"
•
Section 4.3, "Installing/Removing Modules"
Section 4.1
SFP Transceivers
The RUGGEDCOM RST2228 supports up to four Small Form-factor Pluggable (SFP) transceiver sockets, which are
compatible with the wide array of SFP/SFP+ transceivers available from Siemens.
SFP Transceivers
0
1
2
4 x SFP/SFP+ Transceivers
Field-replaceable modules
3
5
4
6
Media Type
Chapter 4
Communication Ports
25
