Summary of Contents for Smartgen BAC1203VL

  • Page 1 BAC1203VL BATTERY CHARGER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD.
  • Page 2 Smartgen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. Smartgen Technology reserves the right to change the contents of this document without prior notice. Table 1 Software Version...
  • Page 3: Table Of Contents

    BAC1203VL Battery Charger User Manual CONTENT 1. OVERVIEW ............................4 2. PERFORMANCE AND CHARACTERISTICS ..................4 3. CHARGING PRINCIPLE ........................4 4. PARAMETERS CONFIGURATION ...................... 5 5. OPERATION ............................5 6. CASE DIMENSIONS ..........................6 7. APPENDIX: PACK LIST ........................7 BAC1203VL Battery Charger Version 1.0...
  • Page 4: Overview

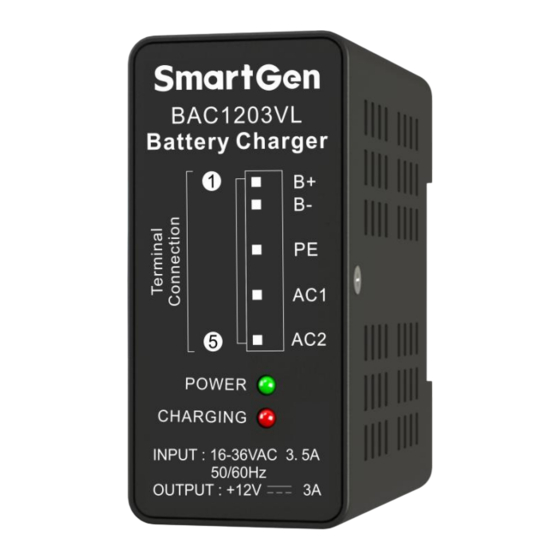

    BAC1203VL Battery Charger User Manual OVERVIEW Fit with up-to-date power supply device, battery charger BAC1203VL is specially designed for meeting the charging characteristics of lead-acid batteries and can be used for long-term supplement (float) charging of 12V battery pack. PERFORMANCE AND CHARACTERISTICS...
  • Page 5: Parameters Configuration

    BAC1203VL Battery Charger User Manual PARAMETERS CONFIGURATION Table 2 Technical Parameters Items Contents Nominal AC Voltage AC (16~36)V Max. AC Current 3.5A Input No-load Power Consumption <2W Characteristics AC Frequency 45Hz~65Hz Max. Efficiency No-load Output Voltage 13.8V, error±2% Output Rated Charging Current 3.0A, error±5%...
  • Page 6: Version

    BAC1203VL Battery Charger User Manual CASE DIMENSIONS Figure 3 BAC1203VL Guide Rail Installation Size Figure 4 BAC1203VL Screw Installation Size BAC1203VL Battery Charger Version 1.0 2019-06-20 Page 6 of 7...
  • Page 7: Appendix: Pack List

    BAC1203VL Battery Charger User Manual APPENDIX: PACK LIST Table 4 Pack List Accessory Quantity Remark BAC1203VL Connecting Plug Contact Pin Quality Certificate User Manual _______________________________________ BAC1203VL Battery Charger Version 1.0 2019-06-20 Page 7 of 7...
