- Page 1 BAC150CAN BATTERY CHARGER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD...
- Page 2 Smartgen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. Smartgen Technology reserves the right to change the contents of this document without prior notice. Table 1 Software Version Date...
-
Page 3: Table Of Contents
BAC150CAN Battery Charger User Manual CONTENT 1 OVERVIEW ..........................4 2 PERFORMANCE AND CHARACTERISTICS ............... 4 3 CHARGING PRINCIPLE ....................... 5 4 PARAMETERS SPECIFICATION ..................7 5 PARAMETERS CONFIGURATION ..................8 6 OPERATION ........................11 7 CONNECTION ........................12 8 CASE DIMENSIONS ......................13 BAC150CAN Battery Charger Version 1.0... -
Page 4: Overview

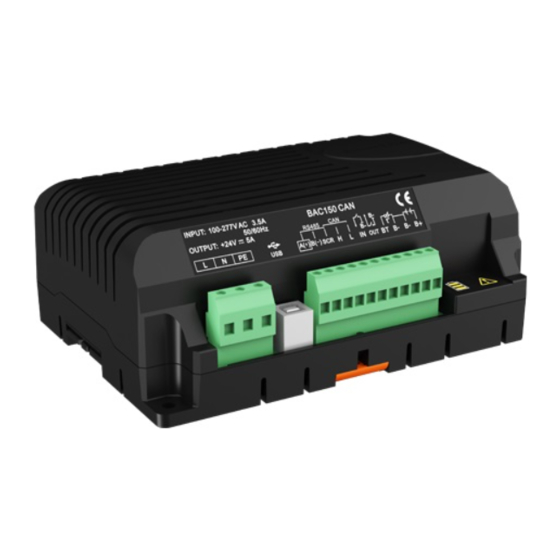

BAC150CAN Battery Charger User Manual 1 OVERVIEW BAC150CAN is a kind of battery charger with intelligent multi-functions, which is specially designed for genset lead-acid battery to meet the charging characteristics. It is suitable for 12V/24V battery with maximum10A output current. -
Page 5: Charging Principle
BAC150CAN Battery Charger User Manual 3 CHARGING PRINCIPLE Fig. 1 3-Stage Charging Curve Gragh Three-stage charging method is applied for the charger to work according to the battery charging characteristics. The first stage is ‘Constant Current’ mode. When the terminal voltage is comparatively low, the charging current is small, which effectively prevents the battery from damaging because of high temperature, calling ‘low voltage trickle charging’. - Page 6 BAC150CAN Battery Charger User Manual Fig. 2 2-Stage Charging Curve Graph Two-stage charging method is applied for the charger to work according to the battery charging characteristics. The first stage is ‘Constant Current’ mode. When the terminal voltage is comparatively low, the charging current is small, which effectively prevents the battery from damaging because of high temperature.
-
Page 7: Parameters Specification
BAC150CAN Battery Charger User Manual 4 PARAMETERS SPECIFICATION Table 2 Product Parameters Parameters Type Item Nominal AC (100~277)V Voltage Max. AC (90~305)V Voltage Input Max. Current 1.8A 3.5A Characteristics No-load Power <3W Consumption AC Frequency 50Hz/60Hz Efficiency No-load Output Voltage 13.5V, Error ± 0.2V 27.0V, Error ±... -
Page 8: Parameters Configuration
BAC150CAN Battery Charger User Manual 5 PARAMETERS CONFIGURATION Table 3 Parameter Configuration Default Adjustable Range Items Description 0: 12V Battery Selection (0~2) 1: 24V 2: Self-adjusted 2: Two-stage; Charging Method (2~3) 3: Three-stage Max. Rated Current 5.0A Maximum charging current... - Page 9 BAC150CAN Battery Charger User Manual Default Adjustable Range Items Description The transition voltage from ‘under Under Voltage 12.5V 25.0V (8~15)V (16~30)V voltage’ to ‘normal voltage’ Return Value Under voltage alarm will be Under Voltage removed if the battery voltage has...
- Page 10 BAC150CAN Battery Charger User Manual Default Adjustable Range Items Description 0: Not Used; Shutdown; battery charger enters Standby Status if the input is active. 2: Reserved; 3: Manual BOOST: The battery charger enters (0~5) Auxiliary Input Port 3 BOOST if the input is active.
-
Page 11: Operation
BAC150CAN Battery Charger User Manual 6 OPERATION Fig. 3 BAC150CAN Panel Drawing Table 4 Connection Description Terminal Function Description Input Connect terminals L and N to AC (100~240)V; Port AC Terminals bigger than BVR 1.5mm multi-strand copper line is recommended. -
Page 12: Connection
BAC150CAN Battery Charger User Manual NOTES: 1) Because there are diode and current-limiting circuit inside the charger, it can be used together with charging generator, and it is needless to disconnect the charger when cranking. 2) When this is applied on the genset, as charging current is very large, it shall produce voltage drop in the charging wire. -
Page 13: Case Dimensions
BAC150CAN Battery Charger User Manual 8 CASE DIMENSIONS Unit: mm (a) Bolt Mounting (b) Guide Rail Mounting Fig. 5 BAC150CAN Mounting Case Dimension _____________________________________ BAC150CAN Battery Charger Version 1.0 2019-03-05 Page 13 of 13...
