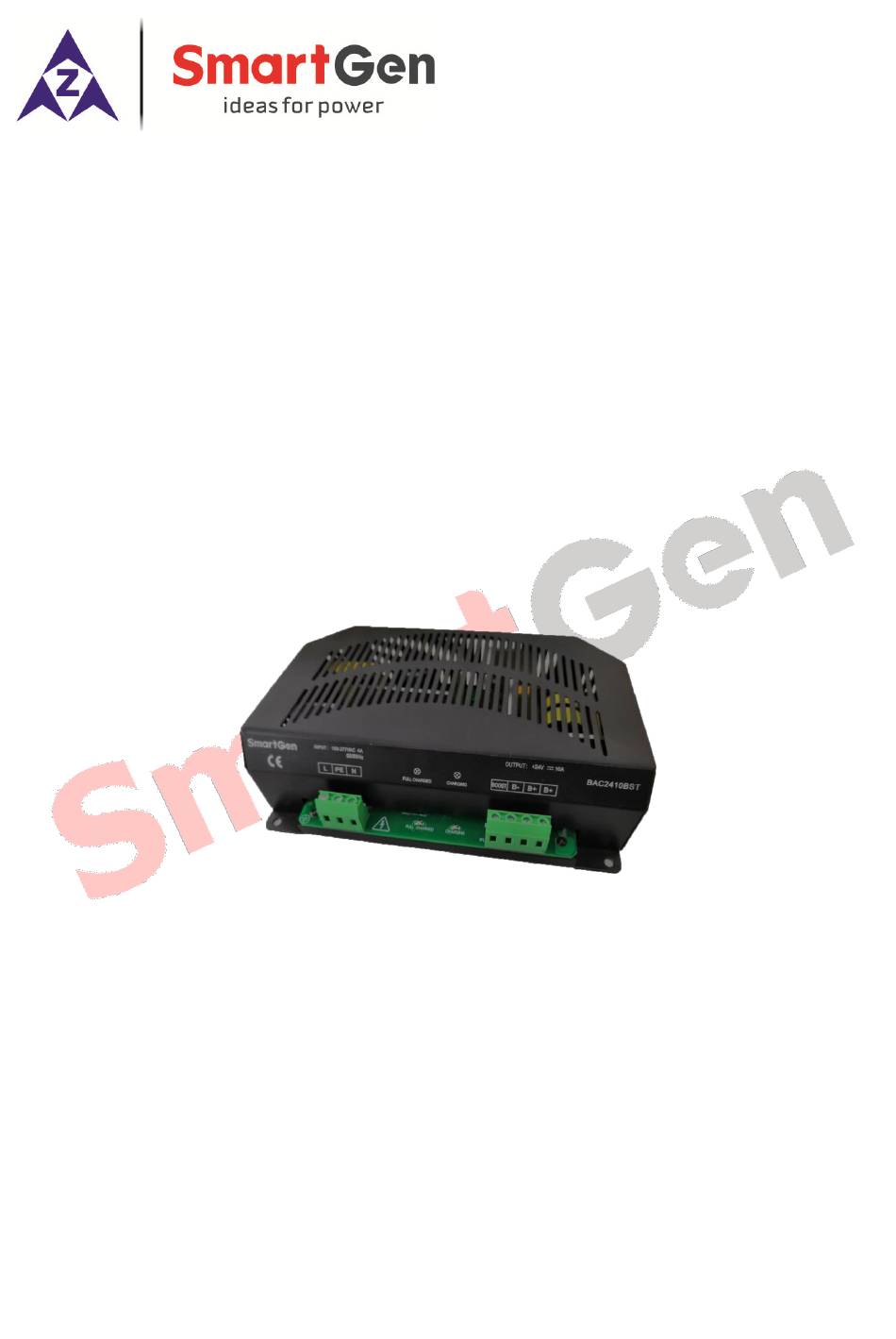

Page 1: User Manual
BAC2410BST BATTERY CHARGER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD. - Page 2 SmartGen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Table 1 Software Version Date...
- Page 3 BAC2410BST Battery Charger User Manual CONTENT 1 OVERVIEW ............................4 2 PERFORMANCE AND CHARACTERISTICS ..................4 3 CHARGING PRINCIPLE ........................4 4 PARAMETERS CONFIGURATION ...................... 6 5 EFFICIENCY CURVE ........................... 6 6 OPERATION ............................7 7 CASE DIMENSIONS ..........................8 BAC2410BST Battery Charger Version 1.0...

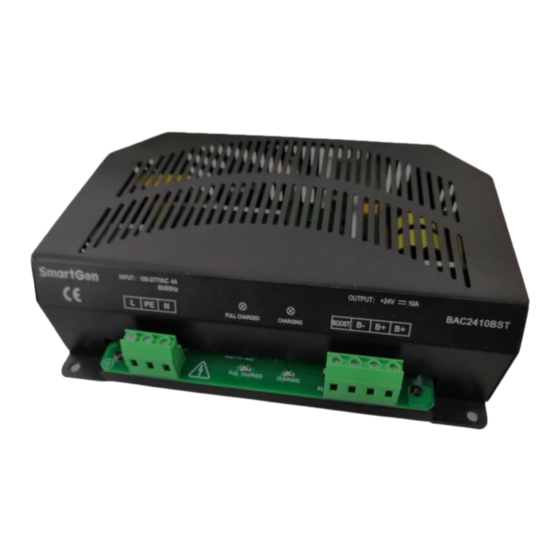

- Page 4 BAC2410BST Battery Charger User Manual 1 OVERVIEW BAC2410BST Battery Charger applies up-to-date switching power supply device, and is designed especially for meeting the charging characteristics of lead-acid engine starter battery. It is applicable for long-term supplement (floating) charging and 24V battery pack.
- Page 5 BAC2410BST Battery Charger User Manual — Second stage is Absorption mode. After constant current charging, battery voltage grows to absorption voltage soon. At this time battery shall keep constant voltage output, the charging current decreases slowly, and battery terminal voltage keeps steadily at absorption voltage value.
- Page 6 BAC2410BST Battery Charger User Manual 4 PARAMETERS CONFIGURATION Table 2 Technical Parameters Items Contents Parameters Nominal AC Voltage AC (100～277)V Max. AC Voltage AC (90～305)V AC Frequency 50Hz/60Hz Max. Active Power 370W Input Max. Current Characteristics AC 110V AC 220V Efficiency >82%...
- Page 7 BAC2410BST Battery Charger User Manual 6 OPERATION Fig. 4 BAC2410BST MASK Table 3 Connection Description Terminal Function Description Connect terminals L and N to AC voltage (100~240)V by AC Terminals using greater than BVR 1.5mm multi-strand copper line. GND Terminals Connect to shell internally already.
- Page 8 BAC2410BST Battery Charger User Manual 7 CASE DIMENSIONS Unit: mm Fig. 5 BAC2410BST Case Dimension ___________________________________ BAC2410BST Battery Charger Version 1.0 2019-05-25 Page 8 of 8...
