Page 1: User Manual

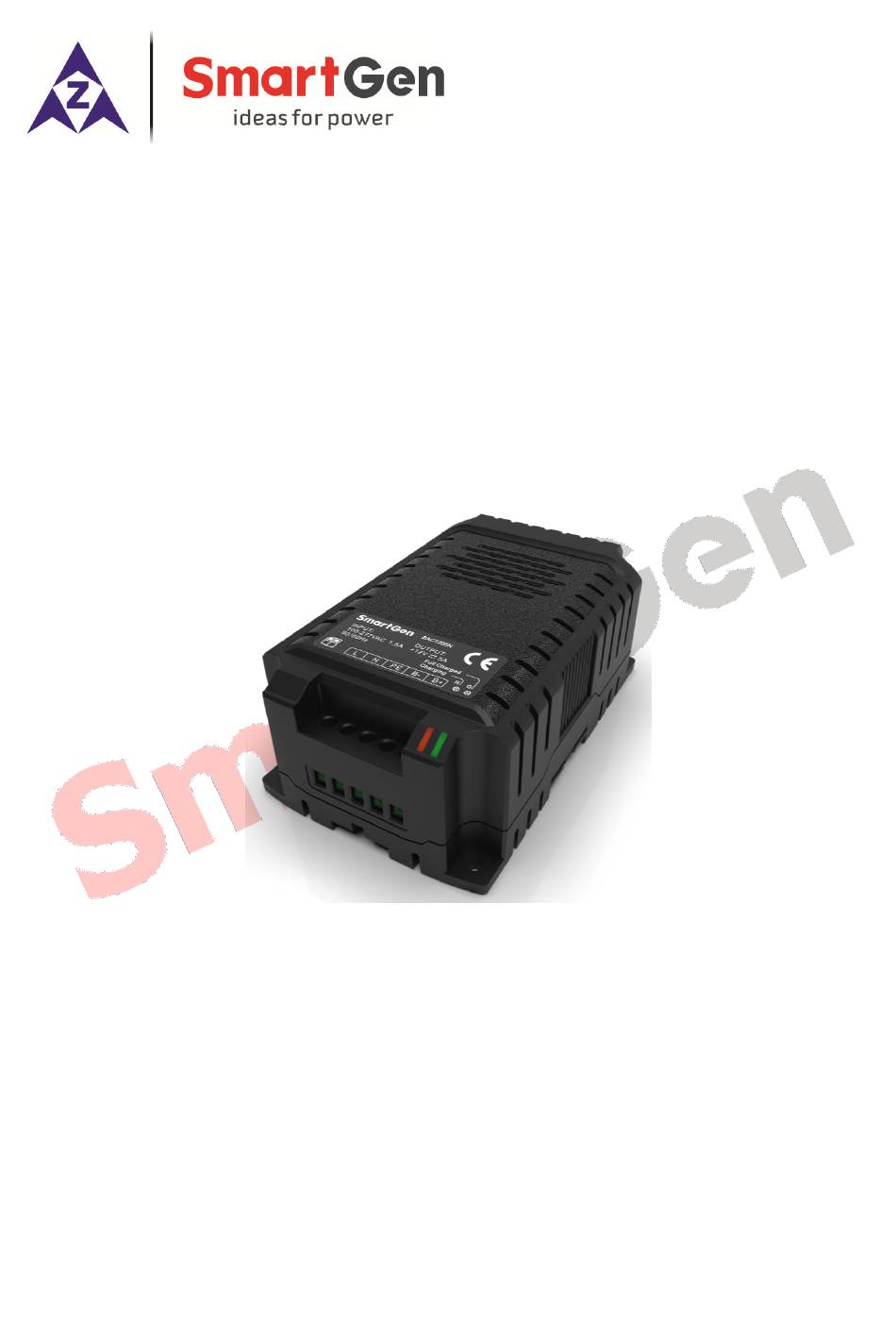

BAC1205N/BAC2403N BATTERY CHARGER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD. - Page 2 SmartGen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Table 1 - Software Version Date...
- Page 3 BAC1205N/BAC2403N Battery Charger User Manual CONTENT 1. OVERVIEW ............................4 2. PERFORMANCE AND CHARACTERISTICS ..................4 3. CHARGING PRINCIPLE ........................4 4. PARAMETERS SPECIFICATION ......................5 5. OPERATION ............................5 6. CASE DIMENSIONS AND INSTALLATION ..................6 7. BATTERY TYPE SELECTION ......................7 BAC1205N/BAC2403N Battery Charger Version 1.0...
- Page 4 — With short circuit and reverse connection protection; — Suitable for charging 12V or 24V batteries with corresponding model BAC1205N or BAC2403N; — LED display: charging indication and full charged indication; — Easy installation: guide-rail way installation, screw mounting installation;...
- Page 5 Shape Weight 0.45kg Structure Dimension 95mm×149mm×61mm (length×width×height) OPERATION Fig.2 – BAC1205N(left) & BAC2403N(right) Panel Drawings BAC1205N panel drawing description: — Connect terminals L and N to alternating voltage (100~277)V using BVR 1mm or above multi-strand copper line. — Connect B+ and B- to battery positive and negative using multi-strand BVR1.5mm or above copper wires.
- Page 6 BAC1205N/BAC2403N Battery Charger User Manual — Full Charged: full charged indicator(Green), illuminated when charger is no-load or battery is full charged. Note: 1) Because there is diode and current-limiting circuit inner the charger, it can be used parallel with charger of generator, and there is no need to disconnect the charger when cranking.
- Page 7 7. BATTERY TYPE SELECTION There are two types of battery for choose: — BAC1205N is designed for 12V battery with the maximum output current 5A. — BAC2403N is designed for 24V battery with the maximum output current 3A. Please pay attention to the charger model when place orders.
