Summary of Contents for Smartgen BAC06H

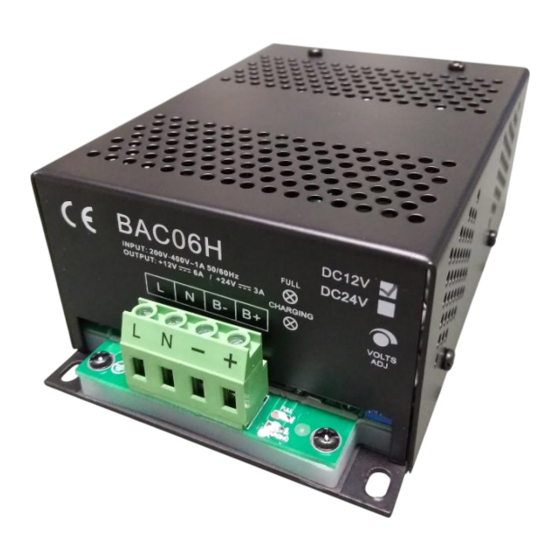

- Page 1 BAC06H BATTERY CHARGER USER MANUAL ZHENGZHOU SMARTGEN TECHNOLOGY CO.,LTD.
- Page 2 All rights reserved. No part of this publication may be reproduced in any material form (including photocopying or storing in any medium by electronic means or other) without the written permission of the copyright holder. SmartGen Technology reserves the right to change the contents of this document without prior notice. Software Version Date...
- Page 3 BAC06H BATTERY CHARGER USER MANUAL CONTENTS OVERVIEW............................ 4 PERFORMANCE AND CHARACTERISTICS ................4 CHARGING PRINCIPLE ....................... 4 SPECIFICATION ........................... 5 VOLTAGE ADJUSTMENT ......................5 OPERATION ..........................5 CASE DIMENSIONS ........................6 MODEL SELECTION ........................6 BAC06H Battery Charger Version 1.1...
-
Page 4: Performance And Characteristics
The charger is suitable for lead-acid battery float charge. BAC06H is a kind of high voltage charger and its input voltage can be reached at 480V. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A. -
Page 5: Specification
BAC06H BATTERY CHARGER USER MANUAL 4 SPECIFICATION Parameter Category Items Nominal AC Voltage AC(200～400) V Max. AC Voltage AC(180～480)V Max. Input Current Input No-load Power <3W Consumption AC Frequency 50Hz～60Hz Max. Efficiency No-load Voltage 13.8V，Error:±1% 27.6V，Error:±1% Rated Charging 6A，Error:±5% 3A，Error:±5%... -
Page 6: Case Dimensions
BAC06H Dimension 8 MODEL SELECTION There are two models as follows, BAC06H-12V is 12V battery charger with the max. charge current 6A. 24V battery charger with the max. charge current 3A. BAC06H-24V is Please pay attention to the charger model before place order.
