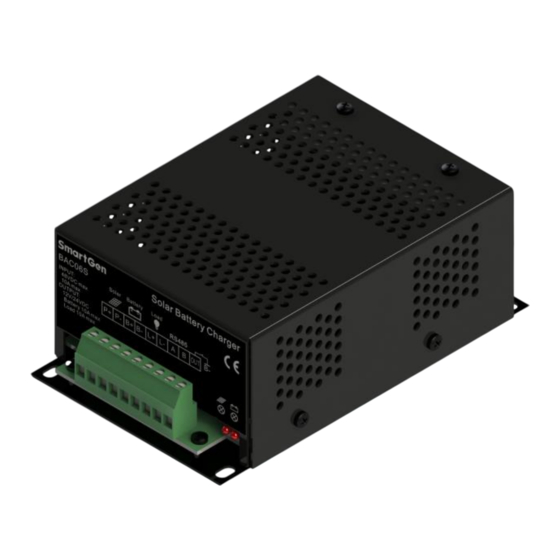

- Page 1 BAC06S SOLAR BATTERY CHARGER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO.,LTD. ZHENGZHOU SMARTGEN TECHNOLOGY CO.,LTD...
-
Page 2: Specification
BAC06S SOLAR BATTERY CHARGER USER MANUAL 3. SPECIFICATION Category Items Parameter System Voltage Max. Input Voltage DC48V Max. Input Power 160W 320W Input ≤96% ≤97% Efficiency MPPT Efficiency >99% Max. Output Voltage Factory Default Float 13.8V 27.6V Voltage Output Rated Charging Current Max. -
Page 3: Charging Principle
BAC06S SOLAR BATTERY CHARGER USER MANUAL 4. CHARGING PRINCIPLE Three-stage Method Charging is performed according to the battery charging characteristics using three-stage method. The first stage is named as „constant current‟: a): Trickle Charge: when the battery terminal voltage is relatively low, then the charging current is low likewise which can prevent the battery temperature is too high. - Page 4 BAC06S SOLAR BATTERY CHARGER USER MANUAL Two-stage Method Charging is performed according to the battery charging characteristics using two-stage method. The first stage is named as „constant current‟: a): Trickle Charge: when the battery terminal voltage is relatively low, then the charging current is low likewise which can prevent the battery temperature is too high.
-
Page 5: Parameter Configuration
BAC06S SOLAR BATTERY CHARGER USER MANUAL 5. PARAMETER CONFIGURATION Basic Parameter Settings, Default Adjustable Range Items Description 0:12V ； 1:24V ； Battery Type (0~2) 2:Self-adaption 2: Two Stage; Charging Stage (2~3) 3: Three Stage Max. Rated Maximum charging 10.0A Nonadjustable... - Page 6 BAC06S SOLAR BATTERY CHARGER USER MANUAL Default Adjustable Range Items Description battery voltage falls below the set value. “Under voltage” alarm will be initiated if the Under Voltage battery voltage falls 120s (0~3600)s Delay below the set value and the delay timer has expired.
-
Page 7: Terminal Definition
BAC06S SOLAR BATTERY CHARGER USER MANUAL 7. TERMINAL DEFINITION BAC06S Mask Terminal Function Description Solar Power + Connect to solar cell panel output Solar Power- Battery + Connect with the battery to be charged Battery - Load + Supply power to load... -
Page 8: Application Instruction
BAC06S SOLAR BATTERY CHARGER USER MANUAL 8. APPLICATION APPLICATION INSTRUCTION: Solar Choose 18V or 36V solar panel, please reference solar type as below. Battery Choose 12V or 24V battery (24V battery cannot be charged while using 18V solar panel). Load Used for controlling lighting lamps to provide lighting in the dark, and also available for other functional load. - Page 9 BAC06S SOLAR BATTERY CHARGER USER MANUAL 10. CASE DIMENSIONS Unit: mm BAC06S Mounting Dimensions BAC06S Solar Battery Charger Version 1.0 2017-07-20 Page 18 of 19...
