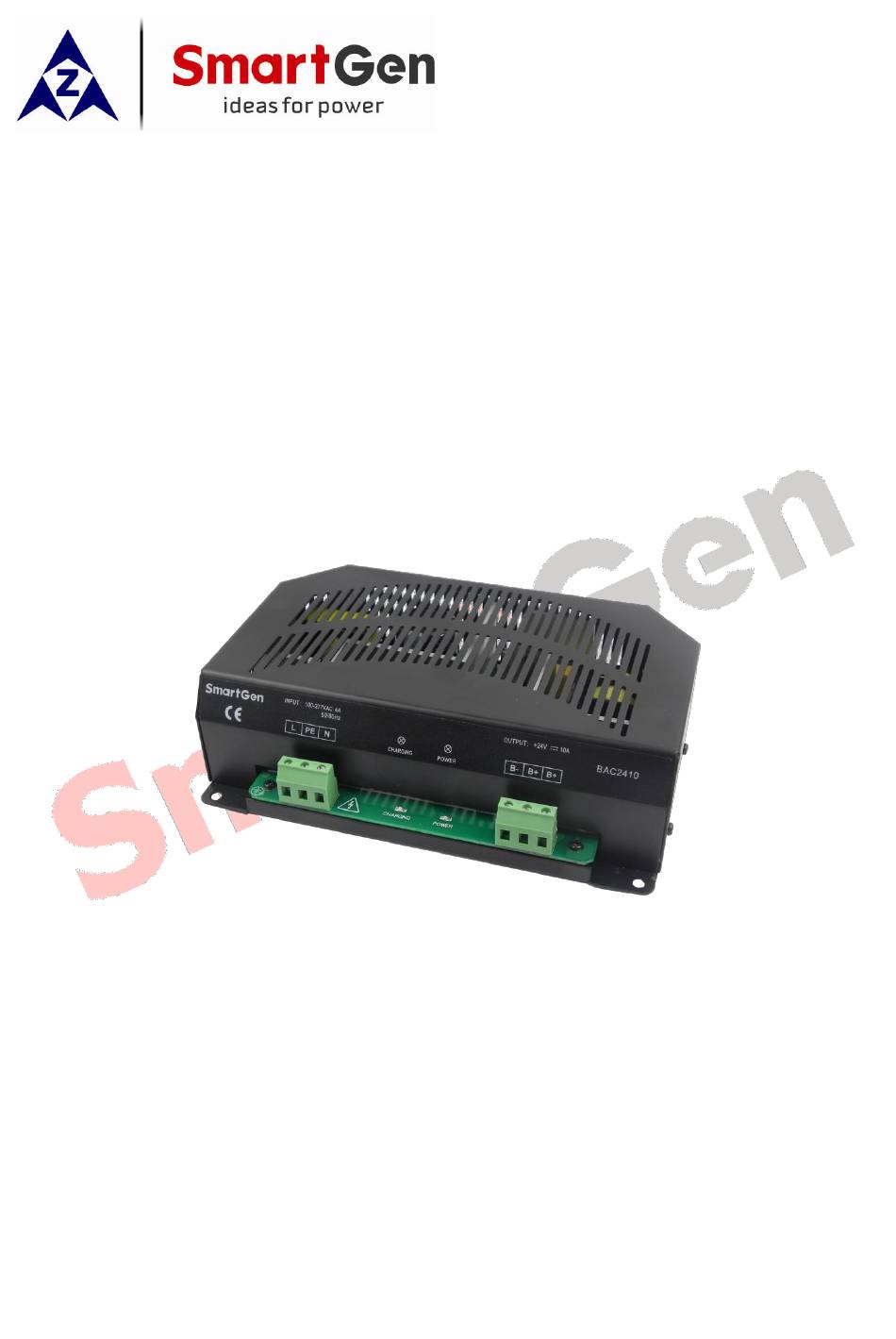

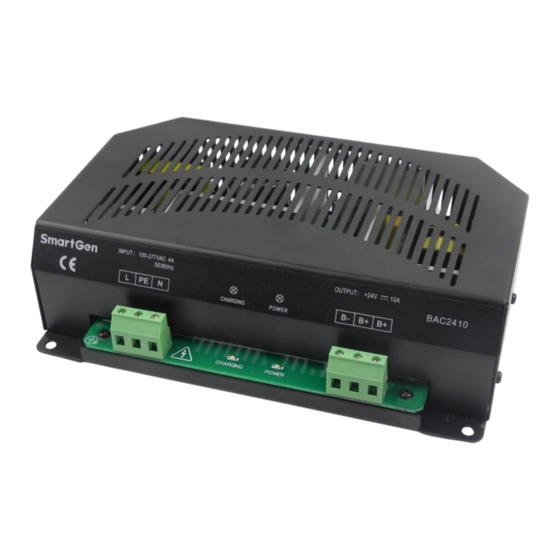

- Page 1 BAC2410 BATTERY CHARGER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD.
- Page 2 Smartgen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. Smartgen Technology reserves the right to change the contents of this document without prior notice. Software Version Date...
- Page 3 BAC2410 Battery Charger User Manual CONTENT 1 OVERVIEW ........................4 2 PERFORMANCE AND CHARACTERISTICS ..............4 3 CHARGING PRINCIPLE ....................4 4 PARAMETERS CONFIGURATION ................5 5 EFFICIENCY CURVE ..................... 5 6 OPERATION........................6 7 CASE DIMENSIONS ...................... 6 BAC2410 Battery Charger Version 1.0...
- Page 4 BAC2410 Battery Charger User Manual 1 OVERVIEW Fit with up-to-date power supply device, float charger BAC2410 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries.
- Page 5 BAC2410 Battery Charger User Manual 4 PARAMETERS CONFIGURATION Items Contents Parameters Nominal AC Voltage AC (100～277)V Max. AC Voltage AC (90～305)V AC Frequency 50Hz/60Hz Max. On-load Current 340W Input Max. Current Characteristics AC 110V AC 220V Efficiency >86% >88% AC 110V...
- Page 6 BAC2410 Battery Charger User Manual 6 OPERATION BAC2410 MASK Terminal Function Description Connect terminals L and N to AC voltage (100~240)V using AC Terminals greater than BVR 1.5mm multi-strand copper line. GND Terminals Connect to shell internally. Connect to battery negative using greater than BVR 2.5mm Battery Negative multi-strand copper lines.
