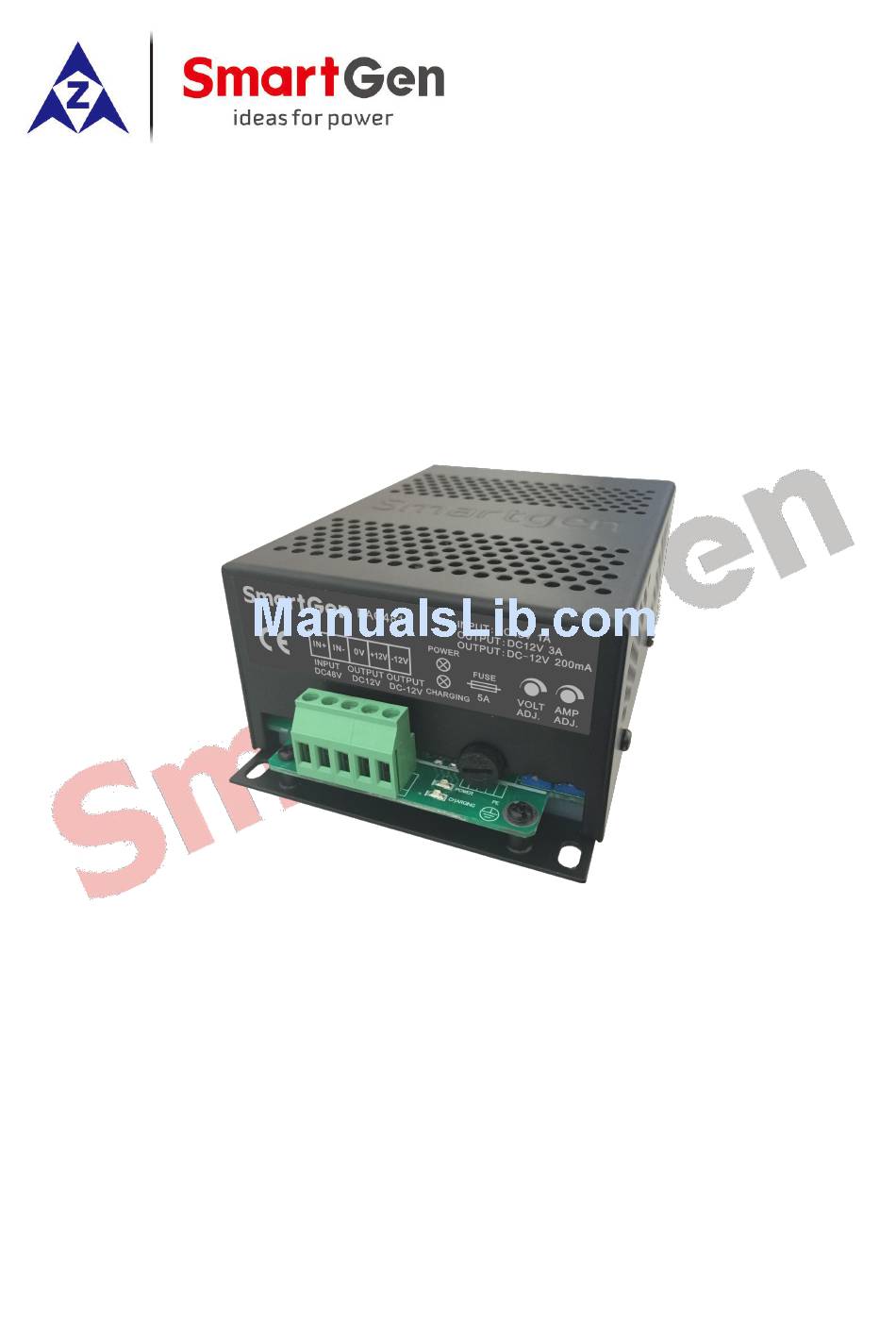

- Page 1 BAC4812 BATTERY CHARGER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD.
- Page 2 Smartgen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. Smartgen Technology reserves the right to change the contents of this document without prior notice. Software Version Date...
-
Page 3: Table Of Contents
BAC4812 Battery Charger User Manual CONTENT 1. OVERVIEW..........................4 2. PERFORMANCE AND CHARACTERISTICS.................4 3. CHARGING PRINCIPLE......................5 4. PARAMETERS CONFIGURATION..................6 5. SETTING............................7 5.1. VOLTAGE REGULATION.....................7 5.2. CURRENT REGULATION....................7 6. OPERATION..........................7 7. CASE DIMENSIONS........................8 BAC4812 Battery Charger Version 1.0... -
Page 4: Overview

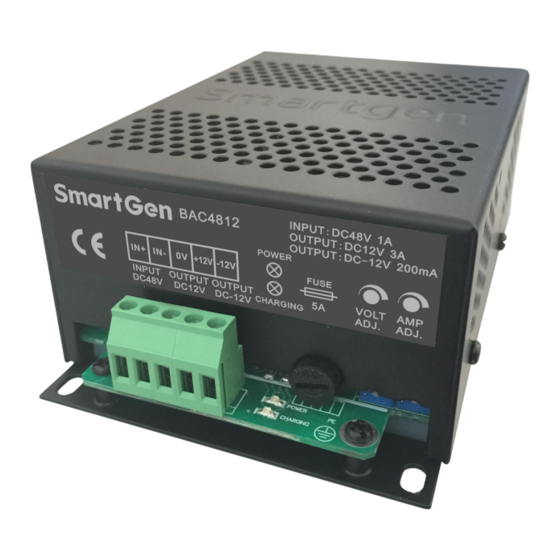

BAC4812 Battery Charger User Manual OVERVIEW Fit with up-to-date power supply device, float charger BAC4812-KP is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries. The maximum charging current is 3A. -
Page 5: Charging Principle
BAC4812 Battery Charger User Manual CHARGING PRINCIPLE Two-Stage Method Charging is performed according to the battery charging characteristics using two-stage method. Charging type is ‘constant current type’ which means that when the battery terminal voltage falls below the pre-set value, charging current will be constant; when the battery terminal voltage exceeds the pre-set value, charging current will decrease with the rising of terminal voltage until the pre-set current value is reached;... -
Page 6: Parameters Configuration
BAC4812 Battery Charger User Manual PARAMETERS CONFIGURATION Items Contents Parameters Nominal DC Voltage DC48V Input Max. DC Voltage DC (36~72)V Characteristics Max. Current No-load power consumption <3W Main Output No-load Output 13.8V, (Error ±1%) Voltage Main Output Rated Charging Output 3A, (Error±2%) -
Page 7: Setting
BAC4812 Battery Charger User Manual 5. SETTING 5.1. VOLTAGE REGULATION When regulating current on the scene, it needs to disconnect battery and charger and measure charger output voltage while measuring voltage potentiometer until suitable value. 5.2. CURRENT REGULATION Output connects to battery. Measure charging current when charging voltage isn’t higher than 12.5V and set suitable value by regulating current potentiometer (AMP). -
Page 8: Case Dimensions
BAC4812 Battery Charger User Manual 7. CASE DIMENSIONS Unit: mm BAC4812 Battery Charger Version 1.0 2016-06-24 Page 8 of 8...
