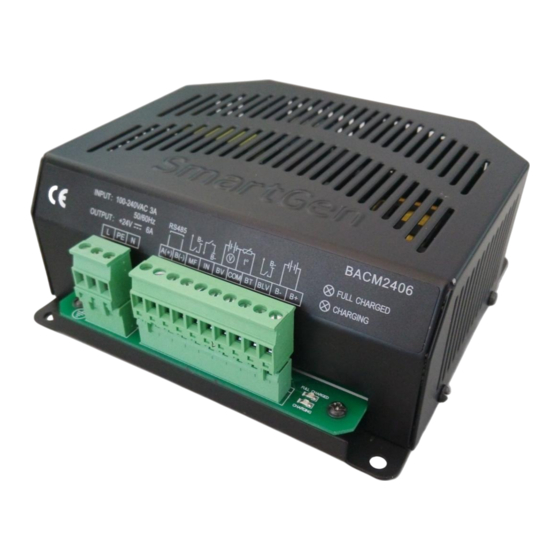

- Page 1 BACMXX06 Series Battery Charger BACM2406/BACM1206 USER MANUAL ZHENGZHOU SMARTGEN TECHNOLOGY CO.,LTD...
- Page 2 All rights reserved. No part of this publication may be reproduced in any material form (including photocopying or storing in any medium by electronic means or other) without the written permission of the copyright holder. Smartgen Technology reserves the right to change the contents of this document without prior notice. Software Version...
- Page 3 This manual is suitable for BACMXX06 Series Battery Charger only. Clarification of notation used within this publication. SIGN INSTRUCTION Highlights an essential element of a procedure to ensure correctness. Note Indicates a procedure or practice, which, if not strictly observed, could result Caution! in damage or destruction of equipment.
-
Page 4: Table Of Contents
BACMXX06 Series Battery Charger CONTENTS SUMMARY ..........................5 PERFORMANCE AND CHARACTERISTICS ............... 6 CHARGING PRINCIPLE ......................7 PARAMETERS CONFIGURATION ..................10 PARAMETERS SPECIFICATION ..................13 EFFICIENCY CURVE ......................14 OPERATION ........................15 CONNECTION ........................17 CASE DIMENSIONS ......................18 BACMXX06 Series Battery Charger Version 1.0... -
Page 5: Summary
BACMXX06 Series Battery Charger 1 SUMMARY BACMXX06 series battery charger is intelligent and multi-function which is specially designed for meet the charging characteristics of the lead-acid engine starter batteries. BACMXX06 battery chargers are divided into 2 types according to the battery voltage: BACM2406 (suitable for 24V) and BACM1206 (suitable for 12V). -
Page 6: Performance And Characteristics
BACMXX06 Series Battery Charger 2 PERFORMANCE AND CHARACTERISTICS 1) Switch power supply structure, wide input AC voltage range, small size, light weight, high efficiency rate; 2) Users can select automatic two-stage charging process or automatic three-stage charging process as needed. Both the two charging process are carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;... -
Page 7: Charging Principle
BACMXX06 Series Battery Charger 3 CHARGING PRINCIPLE Three-stage Method Charging is performed according to the battery charging characteristics using three-stage method. The first stage is named as „constant current‟: 1): Trickle Charge: when the battery terminal voltage is relatively low, then the charging current is low likewise which can prevent the battery temperature is too high. - Page 8 BACMXX06 Series Battery Charger Two-stage Method Charging is performed according to the battery charging characteristics using two-stage method. The first stage is named as „constant current‟: 1): Trickle Charge: when the battery terminal voltage is relatively low, then the charging current is low likewise which can prevent the battery temperature is too high.
- Page 9 BACMXX06 Series Battery Charger Charging Indicator Status Charging Stage Constant Current Constant Charge Float Charge Trickle Quick Voltage Failure Charging Mode Charge Charge Flash(Slowly) Flash(Rapidly) None Flash(Rapidly) →Off Stage Green None Off→On Flash(Rapidly) Flash(Rapidly) Flash(Slowly) Flash(Rapidly) Three Stage Green Flash(Rapidly) BACMXX06 Series Battery Charger Version 1.0...
-
Page 10: Parameters Configuration
BACMXX06 Series Battery Charger 4 PARAMETERS CONFIGURATION Items Default Adjustable Range Description BACM BACM BACM2406 BACM1206 2406 1206 2: Two Stage; Charging Stage (2~3) 3: Three Stage Rated Output Maximum charging 6.0A Unadjustable Current current Charging Maximum charging 100% (0~100)%... - Page 11 BACMXX06 Series Battery Charger “Under voltage” alarm will be initiated if the Under Voltage battery voltage has fallen 120s (0~3600)s Delay below the set value and the delay timer has expired. The transition voltage from “under voltage” Under Voltage 24.0V 12.0V...
- Page 12 BACMXX06 Series Battery Charger the input is active. 2、Enable Battery Detection： The battery charger enters into Standby Status if the input is active but there is no battery voltage signal. 3、Manual BOOST： The battery charger enters into BOOST if the input is active.
-
Page 13: Parameters Specification
BACMXX06 Series Battery Charger 5 PARAMETERS SPECIFICATION Items Contents Parameters BACM2406 BACM1206 Nominal AC (100~240)V Voltage Max. AC (90~280)V Voltage AC Frequency 50Hz/60Hz Input Max. Active 210W 105W Characteristics Power Max. Current 1.5A AC 110V AC 220V AC 110V AC 220V Efficiency >86%... -
Page 14: Efficiency Curve
BACMXX06 Series Battery Charger 6 EFFICIENCY CURVE BACMXX06 Series Battery Charger Version 1.0 2014-12-20 Page 14 of 18... -
Page 15: Operation
BACMXX06 Series Battery Charger 7 OPERATION BACM2406 BACM1206 Terminal Function Description Connect terminals L and N to AC voltage AC Terminals (100~240)V using greater than BVR 1mm multi-strand copper line. GND Terminals Connect to shell innerly. A(+) RS485 Communication Standard RS485 communication port... - Page 16 BACMXX06 Series Battery Charger charging generator, and there is no need to disconnect the charger when cranking. 2) During genset is running, high current will cause voltage drop in charging line, so recommend separately connecting to battery terminal to avoid disturbance on sampling precision.
-
Page 17: Connection
BACMXX06 Series Battery Charger CONNECTION BACMXX06 Series Battery Charger Version 1.0 2014-12-20 Page 17 of 18... -
Page 18: Case Dimensions
BACMXX06 Series Battery Charger 9 CASE DIMENSIONS BACMXX06 Series Battery Charger Version 1.0 2014-12-20 Page 18 of 18...
