Summary of Contents for Smartgen BAC06A
- Page 1 BAC06A SWITCH-TYPE BATTERY CHARGER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO.,LTD.
- Page 2 Smartgen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Software Version Date...
- Page 3 BAC06A Switch-type Battery Charger User Manual CONTENTS OVERVIEW............................ 4 PERFORMANCE AND CHARACTERISTICS ................4 CHARGING PRINCIPLE ....................... 4 SPECIFICATION ........................... 5 SETTING ............................5 VOLTAGE ADJUSTMENT ......................5 CURRENT ADJUSTMENT ....................... 5 OPERATION ..........................6 PANEL DRAWING DESCRIPTION ..................6 TROUBLESHOOTING ......................

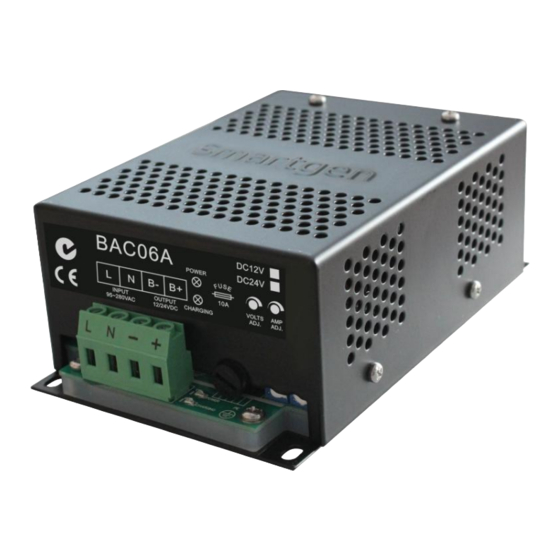

- Page 4 BAC06A Switch-type Battery Charger User Manual 1 OVERVIEW BAC06A switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.
- Page 5 BAC06A Switch-type Battery Charger User Manual 4 SPECIFICATION Table 2 Product Parameters Category Items Nominal AC Voltage AC (95～280)V Input Max. AC Voltage AC (90～305)V Characteristi AC Frequency 50Hz/60Hz Max. Input Current Max. Efficiency Charging Current 4A～6A,(Error± 2%) 2A～3A,(Error± 2%)
- Page 6 BAC06A Switch-type Battery Charger User Manual 6 OPERATION 6.1 PANEL DRAWING DESCRIPTION Chart 2. BAC06A — Terminals L and N connect AC 220V, using multi-strand BVR 1mm copper wires. — Terminals B+ and B- connect battery positive and negative, using multi-strand BVR1.5mm...
- Page 7 BAC06A Switch-type Battery Charger User Manual 7 CASE DIMENSIONS Chart 3. BAC06A Dimension 8 ORDER INFORMATION When ordering BAC06A chargers, please choose charger types according to installation and voltage as the chart below: Table 3 Charger Model Model Installation Battery Type...
