Page 1: User Manual

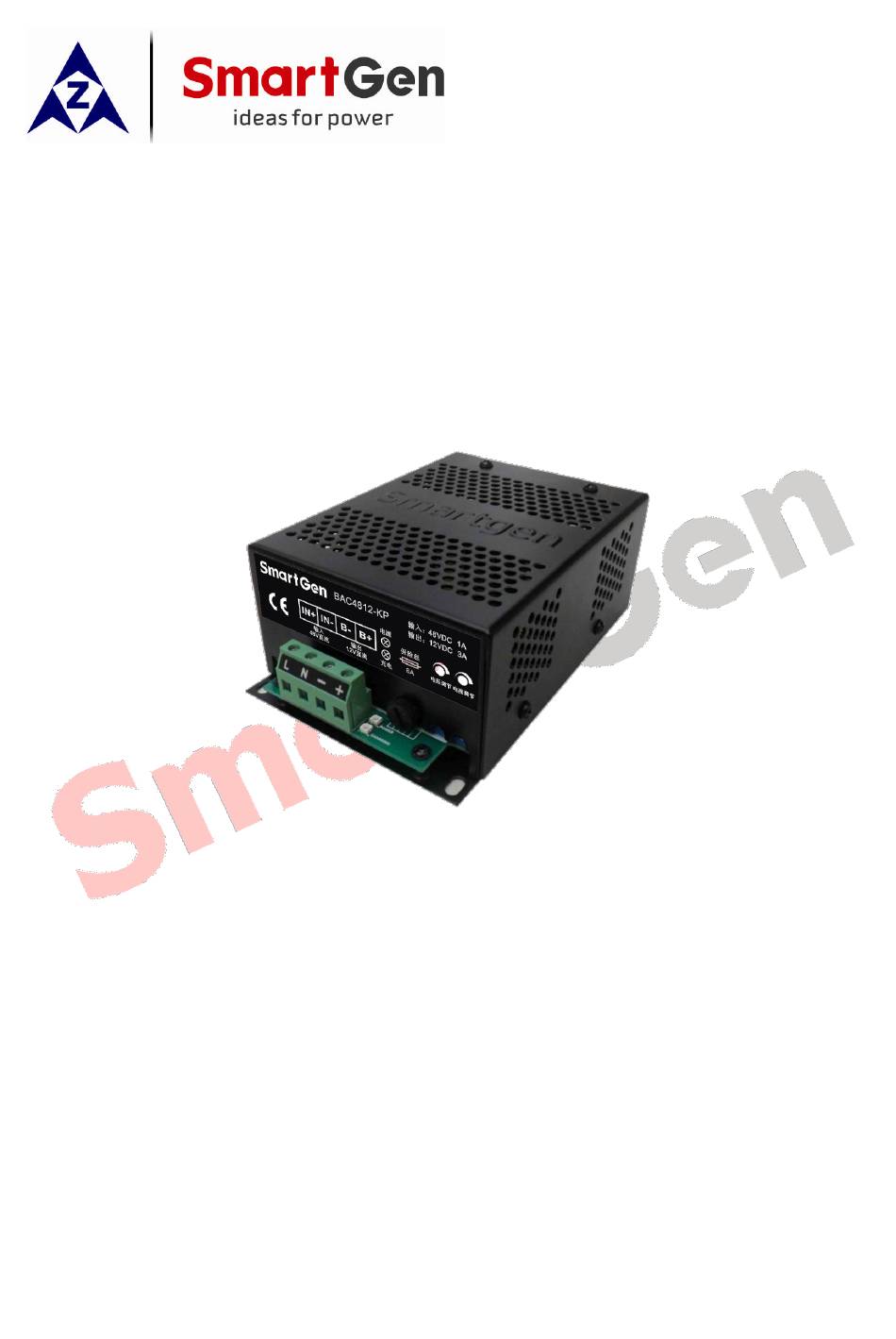

BAC4812-KP BATTERY CHARGER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD. - Page 2 Smartgen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Software Version Date...
- Page 3 BAC4812-KP BATTERY CHARGER USER MANUAL CONTENT 1. OVERVIEW ............................4 2. PERFORMANCE AND CHARACTERISTICS ..................4 3. CHARGING PRINCIPLE ........................4 4. PARAMETERS CONFIGURATION ...................... 5 5. VOLTAGE/CURRENT REGULATION ....................5 5.1 VOLTAGE REGULATION ......................5 5.2 CURRENT REGULATION ......................5 6.
- Page 4 BAC4812-KP BATTERY CHARGER USER MANUAL OVERVIEW Fit with up-to-date power supply device, float charger BAC4812-KP is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries.
- Page 5 BAC4812-KP BATTERY CHARGER USER MANUAL PARAMETERS CONFIGURATION Items Contents Parameters Nominal DC DC48V Voltage Input Max. Current Characteristics No-load Power <3W Consumption No-load Output 13.8V, (Error ±1%) Voltage Output Characteristics Rated Charging 3A，(Error±2%) Current Insulating Between input and output, input and shell both are: DC500V ≧500MΩ...
- Page 6 BAC4812-KP BATTERY CHARGER USER MANUAL OPERATION 6.1 MASK DESCRIPTION BAC4812-KP MASK ─ Connect terminals L and N to direct voltage 48V using BVR 1mm multi-strand copper line. ─ Connect B+ and B- to battery positive and negative using BVR 1.5mm multi-strand copper line.
- Page 7 BAC4812-KP BATTERY CHARGER USER MANUAL CASE DIMENSIONS Unit: mm _________________________________ BAC4812-KP Battery Charger Version 1.2 2017-11-10 Page 7 of 7...
