BAC1203VE BATTERY CHARGER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD. - Page 2 SmartGen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Table 1 - Software Version Date...
- Page 3 BAC123VE BATTERY CHARGER USER MANUAL CONTENTS OVERVIEW ..........................4 PERFORMANCE AND CHARACTERISTICS ................4 CHARGING PRINCIPLE ......................4 SPECIFICATION.......................... 5 OPERATION ..........................5 CASE DIMENSIONS ........................7 APPENDIX: PACKING LIST ......................8 BAC1203VE Battery Charger Version 1.1 2018-04-11 Page 3 of 8...
- Page 4 BAC123VE BATTERY CHARGER USER MANUAL OVERVIEW Fit with up-to-date power supply device, charger BAC1203VE is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries with the maximum output current 3A.

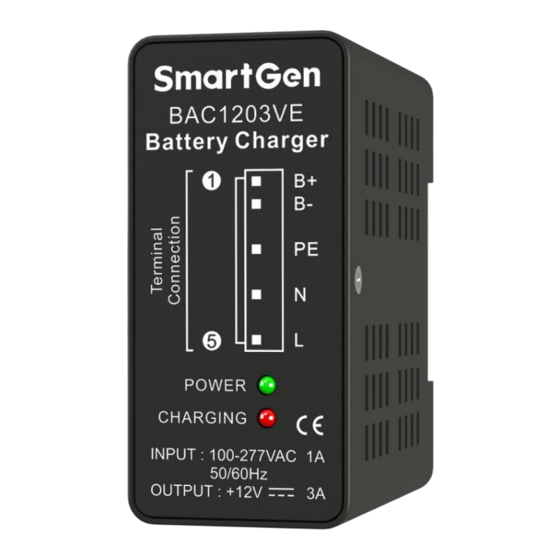

- Page 5 AC3kV, and in 1min leakage current: I Working Temperature (-30~+55)°C Working Conditions Storage Temperature (-40~+85)°C Working Humidity 20%RH~93%RH ( No condensation) Weight 150g Shape Structure Dimension 80mm×35.5mm×65mm (length*width*height) OPERATION Fig.2 - BAC1203VE Mask BAC1203VE Battery Charger Version 1.1 2018-04-11 Page 5 of 8...
- Page 6 Lamp illuminates while charger is working. NOTE 1: During genset is running, charging current will cause voltage drop in charging line, so recommend separately connecting to battery terminal to avoid disturbance on sampling precision. BAC1203VE Battery Charger Version 1.1 2018-04-11 Page 6 of 8...
- Page 7 BAC123VE BATTERY CHARGER USER MANUAL CASE DIMENSIONS Fig.3 – BAC1203VE Guide-rail Installation Fig.4 – BAC1203VE Screw Fixed Installation BAC1203VE Battery Charger Version 1.1 2018-04-11 Page 7 of 8...
- Page 8 BAC123VE BATTERY CHARGER USER MANUAL APPENDIX: PACKING LIST Table 4 – Packing List Name Quantity Remark BAC1203VE battery charger Dupont plug Certification Installation instruction BAC1203VE Battery Charger Version 1.1 2018-04-11 Page 8 of 8...
