IDK FDX-08 Command Reference Manual

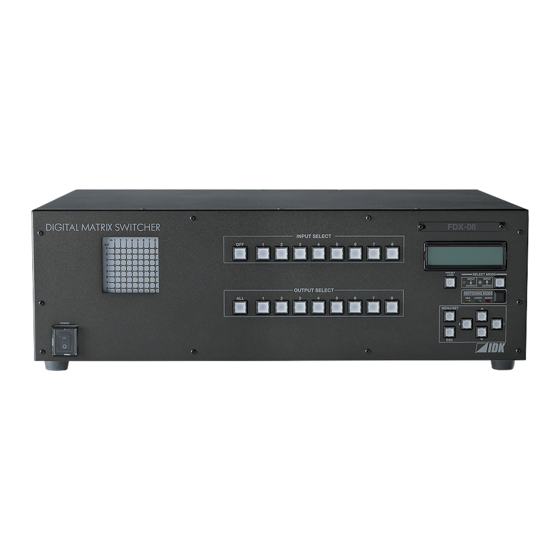

Modular matrix switcher
Hide thumbs Also See for FDX-08:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
DIGITAL MATRIX SWITCHER
POWER
Thank you for choosing our product.
To ensure the best performance of this product, please read this user guide fully and carefully before
using it and keep this manual together with the product for future reference as needed.
INPUT SELECT
1
2
3
4
5
6
OFF
7
OUTPUT SELECT
ALL
1
2
3
4
5
6
7
RS-232C
LAN
UPDATE
INPUT
A
B
～
1
4
A
D
DVI-D(HDMI)
DVI-D(HDMI)
INPUT
INPUT
LOOP OUT
INPUT
LOOP OUT
～
5
8
A
D
A
SDI
B
SDI
IDK Corporation
Modular Matrix Switcher
<Command Reference Guide>
FDX-08
8
PRESET
SELECT MODE
LOAD
INPUT
INPUT
OUTPUT
OUTPUT
SWITCHING MODE
8
V&A
VIDEO
AUDIO
MENU/SET
ESC
OPTION
ALARM
C
D
LINK
DVI-D(HDMI)
DVI-D(HDMI)
A
HDBaseT
INPUT
LOOP OUT
INPUT
LOOP OUT
DVI-D(HDMI)
C
SDI
D
SDI
FDX-08
Ver.1.0.0
BREAKER
S/N
LINK
LINK
B
HDBaseT
C
HDBaseT
A
AC 100-240V
50/60Hz
FG
OUTPUT
LINK
1
～
4
D
HDBaseT
A
D
B
OUTPUT
5
～
8
DVI-D(HDMI)
A
D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDX-08 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDK FDX-08

Summary of Contents for IDK FDX-08

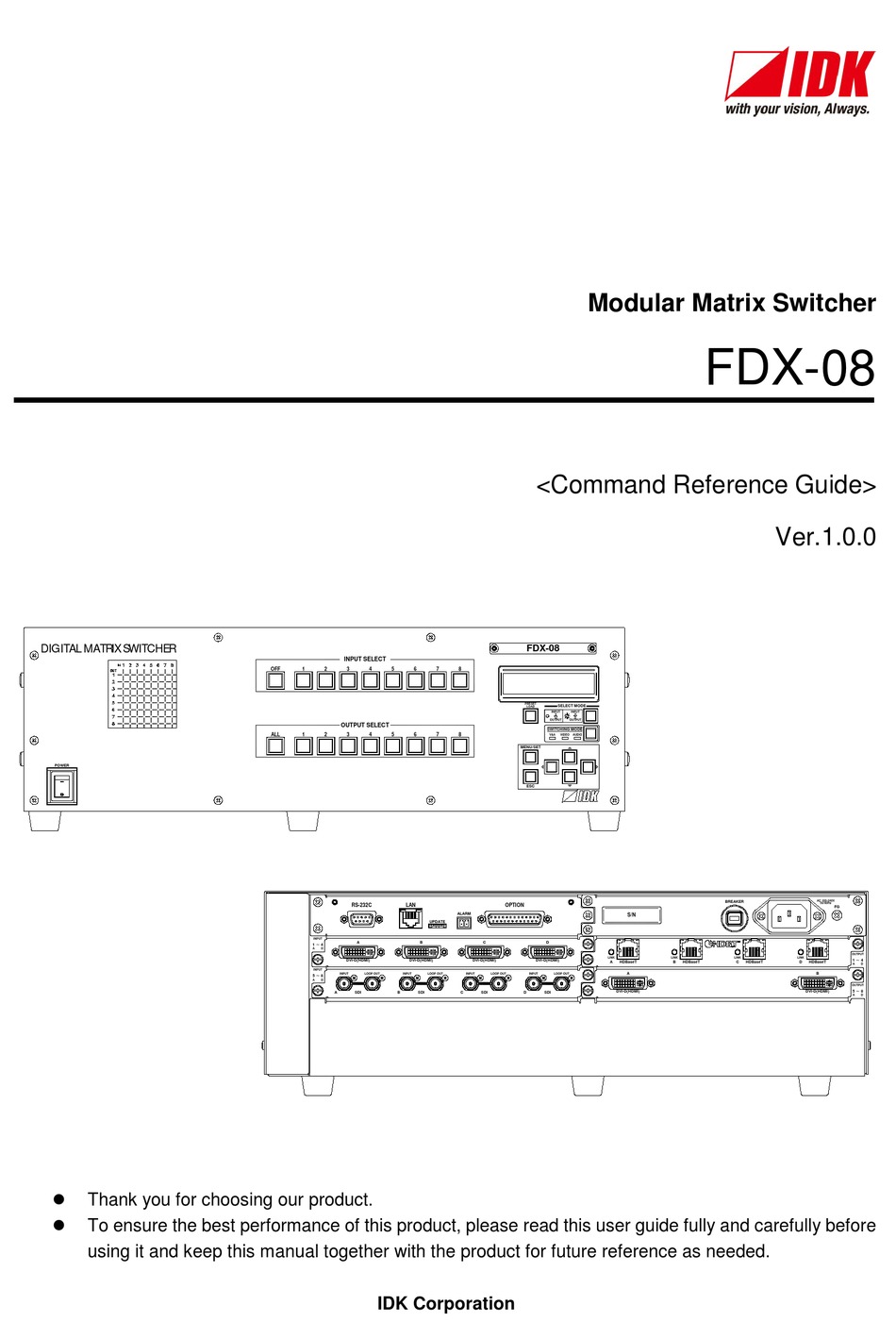

  • Page 1 Modular Matrix Switcher FDX-08 <Command Reference Guide> Ver.1.0.0 DIGITAL MATRIX SWITCHER FDX-08 INPUT SELECT PRESET SELECT MODE LOAD INPUT INPUT OUTPUT OUTPUT OUTPUT SELECT SWITCHING MODE V&A VIDEO AUDIO MENU/SET POWER AC 100-240V BREAKER 50/60Hz RS-232C OPTION ALARM UPDATE INPUT ～...
  • Page 2 FDX-08 Command Guide Trademarks  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.  HDBaseT™ and the HDBaseT Alliance Logo are trademarks of the HDBaseT Alliance.
  • Page 3  Some information contained in this Command guide such as exact product appearance, diagrams, menu operations, communication commands, and so on may differ depending on the product version.  This Command guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...

  • Page 4: Table Of Contents

    FDX-08 Command Guide Table of Contents 1 About this guide ............................5 2 Communication specifications ........................6 RS-232C communication ........................6 2.1.1 Setup of RS-232C communication ....................6 2.1.2 RS-232C connector specification ....................8 2.1.3 RS-232C communication specification ..................8 LAN communication ..........................

  • Page 5: About This Guide

    FDX-08 Command Guide 1 About this guide This guide contains the procedure for controlling FDX using commands via RS-232C communication or LAN communication. LAN communication Control via commands Control via WEB browser DIGITAL MATRIX SWITCHER FDX-08 INPUT SELECT PRESET SELECT MODE...

  • Page 6: Communication Specifications

    FDX-08 Command Guide 2 Communication specifications 2.1 RS-232C communication 2.1.1 Setup of RS-232C communication The FDX can be controlled via RS-232C communication. Connect the FDX with a control device (such as PC) via an RS-232C cable and use commands to control the FDX or acquire its status.
  • Page 7 FDX-08 Command Guide To set RS-232C communication: 【See: 2.1.3 RS-232C communication specification】 Selecting menu Procedure Press the “MENU/SET” key to open the main menu. PRESET SELECT MODE LOAD INPUT INPUT Use “▲” and “▼” keys to select OUTPUT OUTPUT SWITCHING MODE “COM PORT”.

  • Page 8: Rs-232C Connector Specification

    FDX-08 Command Guide 2.1.2 RS-232C connector specification RS-232C pin assignments Control device Pin# Signal Signal RS-232C connector Cross cable 　 N.C. （No connection） N.C. 　 RD （Received data） 　 TD （Transmitted data） 　 N.C. （No connection） N.C. 　 GND （Ground）...

  • Page 9: Lan Communication

    FDX-08 Command Guide 2.2 LAN communication 2.2.1 LAN communication The FDX can be controlled via LAN communication. Connect the FDX with a control device (such as PC) via an LAN cable and use commands to control the FDX and acquire its status.
  • Page 10 FDX-08 Command Guide To set LAN communication: Setting IP address, subnet mask, and port number: ■ IP address Selecting menu Procedure Press the “MENU/SET” key to open the main menu. PRESET SELECT MODE LOAD Use “▲” and “▼” keys to select “LAN”.
  • Page 11 FDX-08 Command Guide ■ Subnet mask Selecting menu Procedure Press the “MENU/SET” key to open the main menu. PRESET Use “▲” and “▼” keys to select “LAN”. SELECT MODE LOAD INPUT INPUT OUTPUT OUTPUT SWITCHING MODE Press the “MENU/SET” key to open the sub V&A...
  • Page 12 FDX-08 Command Guide ■ TCP port number Selecting menu Procedure Press the “MENU/SET” key to open the main menu. PRESET SELECT MODE Use “▲” and “▼” keys to select “LAN”. LOAD INPUT INPUT OUTPUT OUTPUT SWITCHING MODE V&A VIDEO AUDIO Press the “MENU/SET”...

  • Page 13: Lan Connector Specification

    FDX-08 Command Guide 2.2.2 LAN connector specification LAN connector assignments are as follows. Since Auto MDI/MDI-X that distinguishes and switches straight/cross cables automatically is supported, extra care is not necessary to connect the FDX to PC, HUB or the like.

  • Page 14: Limit On The Number Of Tcp-Ip Connections And Port Overload Management

    FDX-08 Command Guide 2.2.4 Limit on the number of TCP-IP connections and port overload management The FDX’s maintenance port supports a maximum of eight simultaneous connections (eight logical ports). To maintain optimal system accessibility, it is advisable to issue “port-open” and “port-close” commands before and after command or query strings are issued.

  • Page 15: Channel Configuration

    FDX-08 Command Guide 3 Channel Configuration 3.1 Outline An I/O board has four channels. An output board has four channels or two channels (scan converter output board). 3.1.1 Channel of output board ・ The channel numbers of scan converter output board are the first two channels only; the rest of two channels cannot be set.

  • Page 16: Command

    FDX-08 Command Guide 4 Command 4.1 Summary 4.1.1 Regular command A command consists of “@” (“40” in hexadecimal), 3 one-byte alphabetical characters (upper and lower cases) followed by parameters (one-byte numbers). For some commands, multiple parameter values can be specified or parameters are not necessary. Processing is executed by sending a delimiter at the end of the command.

  • Page 17: Command List

    FDX-08 Command Guide 4.2 Command list Error status Command Function Page @ERR Error status I/O channel selection Command Function Page @GVA / @IOS Switching I/O channels of FDX and MAU-1616 (optional) simultaneously @GCP / @IOV Switching only FDX I/O channels...
  • Page 18 FDX-08 Command Guide Output timing settings Command Function Page @GOT / @SOT Output resolution @GUM / @SUM Aspect ratio of sink device @GTP / @STP Output test pattern @GMR / @SMR Display size/position @GBC / @SBC Blank color/Background color @GOC / @SOC...
  • Page 19 FDX-08 Command Guide Others Command Function Page @GLM / @SLM Front key function lock @GST Board status @GSS Board mounting status @GIV Version @GIS Input signal status (For each channel) @GII Input signal status @GOS Sink device status (For each channel)

  • Page 20: Details Of Commands

    FDX-08 Command Guide 4.3 Details of commands 4.3.1 Error status @ERR Error status Function Getting Format Return value only Return value @ERR, error Parameter error: Error status 1 = Erroneous parameter format or value 2 = Undefined command or wrong format...

  • Page 21: I/O Channel Selection

    FDX-08 Command Guide 4.3.2 I/O channel selection @GVA / @IOS Switching I/O channels of FDX and MAU-1616 (optional) simultaneously Function Getting Setting Format @IOS,in_1,out_1 (,in_2,out_2･･･) @GVA @GVA,v_1,a_1, ･･･ v_8,a_8 Return value @IOS,in_1,out_1 (,in_2,out_2･･･) Parameter in_1 to in_8: Input channels of FDX and MAU-1616...
  • Page 22 FDX-08 Command Guide @GCA / @IOA Switching only MAU-1616 I/O channels Function Getting Setting Format @IOA,in_1,out_1 (,in_2,out_2･･･) @GCA @GCA,a_1,a_2, ･･･ a_7,a_8 Return value @IOA,in_1,out_1 (,in_2,out_2･･･) Parameter in_1 to in_8: MAU-1616 input channel 0 = OFF, 1 to 8 = INPUT1 to INPUT8...
  • Page 23 FDX-08 Command Guide @SSA Straight Switching* I/O channel of MAU-1616 Function Setting Format @SSA Return value @SSA － Parameter Example @SSA Setting I/O channel of MAU-1616 to the same number I/O @SSA Completed Remarks *Straight switching: For example, OUTPUT1 is connected to INPUT1; OUTPUT2 is connected to INPUT2;...

  • Page 24: Input Settings

    FDX-08 Command Guide 4.3.3 Input settings @GIQ / @SIQ Input equalizer Function Getting Setting Format @SIQ,in_1,level_1 (,in_2,level_2･･･) @GIQ @GIQ,level_1, ･･･ level_8 Return value @SIQ,in_1,level_1 (,in_2,level_2･･･) Parameter in_1 to in_8: Input channel 0 = All inputs, 1 to 8 = INPUT1 to INPUT8...
  • Page 25 FDX-08 Command Guide @GHE / @SHE HDCP input enabled/disabled Function Getting Setting Format @SHE,in_1,hdcp_1 (,in_2,hdcp_2･･･) @GHE @GHE,hdcp_1, ･･･ hdcp_8 Return value @SHE,in_1,hdcp_1 (,in_2,hdcp_2･･･) Parameter in_1 to in_8: Input channel 0 = All inputs, 1 to 8 = INPUT1 to INPUT8...
  • Page 26 FDX-08 Command Guide @GAG / @SAG SDI input audio group Function Getting Setting Format @SAG,in_1,primary_1,secondary_1 @GAG (,in_2,primary_2,secondary_2･･･) @GAG,primary_1,secondary_1, ･･･ Return value @SAG,in_1,primary_1,secondary_1 primary_8,secondary_8 (,in_2,primary_2,secondary_2･･･) Parameter in_1 to in_8: Input channel 0 = All inputs, 1 to 8 = INPUT1 Input 1 to INPUT8...
  • Page 27 FDX-08 Command Guide @GDU / @SDU SDI Dual Stream input video Function Getting Setting Format @SDU,in_1,select_1(,in_2,select_2･･･) @GDU @GDU,select_1, ･･･ select_8 Return value @SDU,in_1,select_1(,in_2,select_2･･･) Parameter in_1 to in_8: Input channel 0 = All inputs, 1 to 8 = INPUT1 to INPUT8...

  • Page 28: Input Timing Settings

    FDX-08 Command Guide 4.3.4 Input timing settings @GPI / @SPI Input video start position Function Getting Setting @SPI,in_ch,h_posi,v_posi Format @GPI,in_ch @GPI,in_ch,h_posi,v_posi @SPI,in_ch,h_posi,v_posi Return value @GPI,in_ch,error Parameter in_ch: Input channel 1 to 8 = INPUT1 to INPUT8 h_posi: Horizontal start position...
  • Page 29 FDX-08 Command Guide @GSI / @SSI Input video active area Function Getting Setting Format @SSI,in_ch,h_size,v_size @GSI,in_ch Return value @GSI,in_ch,h_size,v_size @SSI,in_ch,h_size,v_size @GSI,in_ch,error Parameter in_ch: Input channel 1 to 8 = INPUT1 to INPUT8 h_size: Horizontal active area 0 = [Default], -100 to +100 = -100 dots to +100 dots...
  • Page 30 FDX-08 Command Guide @GAP / @SAP Input video aspect ratio Function Getting Setting Format @SAP,in_ch,aspect @GAP,in_ch Return value @GAP,in_ch,aspect @SAP,in_ch,aspect @GAP,in_ch,error Parameter in_ch: Input channel 1 to 8 = INPUT1 to INPUT8 aspect: Input video aspect ratio 0 = AUTO [Default]...
  • Page 31 FDX-08 Command Guide @GIC / @SIC Input contrast Function Getting Setting Format @SIC,in_ch,red,green,blue @GIC,in_ch Return value @GIC,in_ch,red,green,blue @SIC,in_ch,red,green,blue @GIC,in_ch,error Parameter in_ch: Input channel 1 to 8 = INPUT1 to INPUT8 : Input video contrast (Red) green : Input video contrast (Green)
  • Page 32 FDX-08 Command Guide @GIB / @SIB Input brightness Function Getting Setting Format @SIB,in_ch,brightness @GIB,in_ch Return value @GIB,in_ch,brightness @SIB,in_ch,brightness @GIB,in_ch,error Parameter in_ch: Input channel 1 to 8 = INPUT1 to INPUT8 brightness: Input brightness 100 = 100% [Default] 80 to 120 = 80% to 120% error: - 1 = Input board is not mounted.
  • Page 33 FDX-08 Command Guide @GGM / @SGM Input gamma Function Getting Setting Format @SGM,in_ch, gamma @GGM,in_ch Return value @GGM,in_ch,gamma @SGM,in_ch, gamma @GGM,in_ch,error Parameter in_ch: Input channel 1 to 8 = INPUT1 to INPUT8 gamma: Input gamma 10 = 1.0 [Default] 1 to 30 = 0.1 to 3.0 error: - 1 = Input board is not mounted.
  • Page 34 FDX-08 Command Guide @GFL / @SFL Input sharpness Function Getting Setting Format @SFL,in_ch,sharpness @GFL,in_ch Return value @GFL,in_ch,sharpness @SFL,in_ch,sharpness @GFL,in_ch,error Parameter in_ch: Input channel 1 to 8 = INPUT1 to INPUT8 sharpness: Input sharpness 0 = NORMAL [Default] -5 to 15 = -5 to +15 error: - 1 = Input board is not mounted.
  • Page 35 FDX-08 Command Guide @GHU / @SHU Input HUE Function Getting Setting Format @SHU,in_ch,hue @GHU,in_ch Return value @GHU,in_ch,hue @SHU,in_ch,hue @GHU,in_ch,error Parameter in_ch: Input channel 1 to 8 = INPUT1 to INPUT8 hue: Input HUE 0 = 0° [Default] 0 to 359 = 0° to 359°...
  • Page 36 FDX-08 Command Guide @GSR / @SSR Input saturation Function Getting Setting Format @SSR,in_ch,saturation @GSR,in_ch Return value @GSR,in_ch,saturation @SSR,in_ch,saturation @GSR,in_ch,error Parameter in_ch: Input channel 1 to 8 = INPUT1 to INPUT8 saturation: Input saturation 100 = 100% [Default] 0 to 200 = 0% to 200% error: - 1 = Input board is not mounted.
  • Page 37 FDX-08 Command Guide @GEF / @SEF Input video settings Function Getting Setting Format @SEF,in_ch,h_size,v_size,h_posi,v_posi, @GEF,in_ch aspect,red,green,blue,brightness,gamma, sharpness,hue,saturation Return value @GEF,in_ch,h_size,v_size,h_posi,v_posi, @SEF,in_ch,h_size,v_size,h_posi,v_posi, aspect,red,green,blue,brightness,gamma, aspect,red,green,blue,brightness,gamma, sharpness,hue,saturation sharpness,hue,saturation @GEF,in_ch,error Parameter in_ch: Input channel 1 to 8 = INPUT1 to INPUT8 h_size: Horizontal active area...
  • Page 38 FDX-08 Command Guide @GEF / @SEF Input video settings (cont’d) Parameter : Input video contrast (Red) green : Input video contrast (Green) blue : Input video contrast (Blue) 100 = 100% [Default] 0 to 200 = 0% to 200% brightness: Input brightness...
  • Page 39 FDX-08 Command Guide @GEF / @SEF Input video settings (cont’d) Example @SEF,1,+0,+0,+0,+0,0,100,100,100, Setting the input video of input channel 1 100,10,0,0,100 input video as follows: - Horizontal and Vertical active area: “0” - Horizontal and Vertical start position: “0” - Aspect ratio: AUTO...

  • Page 40: Output Settings

    FDX-08 Command Guide 4.3.5 Output settings @GEQ / @SEQ Output equalizer Function Getting Setting Format @GEQ @SEQ,out_1,level_1 (,out_2,level_2･･･) @GEQ,level_1, ･･･ level_8 Return value @SEQ,out_1,level_1 (,out_2,level_2･･･) Parameter out_1 to out_8: Output channel 0 = All outputs, 1 to 8 = OUTPUT1 to OUTPUT8...
  • Page 41 FDX-08 Command Guide @GHM / @SHM Sink device EDID check Function Getting Setting Format @SHM,out_1,mode_1 (,out_2,mode_2･･) @GHM @GHM,mode_1, ･･･ mode_8 Return value @SHM,out_1,mode_1 (,out_2,mode_2･･) Parameter out_1 to out_8: Output channel 0 = All outputs, 1 to 8 = OUTPUT1 to OUTPUT8 mode_1 to mode_8: Sink device EDID check method of each output channel 0 = In case of EDID load error, the sink device is treated as a DVI device.
  • Page 42 FDX-08 Command Guide @GMK / @SMK Hot plug ignoring duration Function Getting Setting Format @SMK,out_1,mask_1 (,out_2,mask_2･･) @GMK @GMK,mask_1, ･･･ mask_8 Return value @SMK,out_1,mask_1 (,out_2,mask_2･･) Parameter out_1 to out_8: Output channel 0 = All outputs, 1 to 8 = OUTPUT1 to OUTPUT8...

  • Page 43: Output Timing Settings

    FDX-08 Command Guide 4.3.6 Output timing settings @GOT / @SOT Output resolution Function Getting Setting @SOT,out_ch,auto,resolution Format @GOT,out_ch @GOT,out_ch,auto,resolution @SOT,out_ch,auto,resolution Return value @GOT,out_ch,error Parameter out_ch: Output channel 1 to 8 = OUTPUT1 to OUTPUT8 auto: Output resolution mode 0 = Resolution can be specified for the “resolution” parameter below.
  • Page 44 FDX-08 Command Guide @GOT / @SOT Output resolution (cont’d) @GOT,1 Example Getting the output resolution setting of output channel 1 @GOT,1,1,25 1080p@59.94 (1920x1080) (AUTO) @SOT,1,0,25 Setting the output resolution of output channel 1 to 1080p@59.94 (1920x1080) @SOT,1,0,25 Completed Remarks Supported since firmware ver.2.xx...
  • Page 45 FDX-08 Command Guide @GTP / @STP Output test pattern Function Getting Setting Format @STP,out_ch,pattern @GTP,out_ch Return value @GTP,out_ch,pattern @STP,out_ch,pattern @GTP,out_ch,error Parameter out_ch: Output channel 1 to 8 = OUTPUT1 to OUTPUT8 pattern: Test pattern 0 = OFF [Default] 1 = V-STRIPES...
  • Page 46 FDX-08 Command Guide @GMR / @SMR Display size/position Function Getting Setting Format @SMR,out_ch,h_zoom,v_zoom,h_posi, @GMR,out_ch v_posi Return value @GMR,out_ch,h_zoom,v_zoom,h_posi, @SMR,out_ch,h_zoom,v_zoom,h_posi, v_posi v_posi @GMR,out_ch,error Parameter out_ch: Output channel 1 to 8 = OUTPUT1 to OUTPUT8 h_zoom: Horizontal size v_zoom : Vertical size 1000 = 100% [Default] 200 to 4000 = 20.0% to 400%...
  • Page 47 FDX-08 Command Guide @GBC / @SBC Blank color/Background color Function Getting Setting Format @SBC,out_ch,mred,mgreen,mblue,bred, @GBC,out_ch bgreen,bblue Return value @GBC,out_ch,mred,mgreen,mblue,bred, @SBC,out_ch,mred,mgreen,mblue,bred, bgreen,bblue bgreen,bblue @GBC,out_ch,error Parameter out_ch: Output channel 0 = All outputs 1 to 8 = OUTPUT1 to OUTPUT8 mred : Blank color (Red)
  • Page 48 FDX-08 Command Guide @GOC / @SOC Output contrast Function Getting Setting Format @SOC,out_ch,contrast @GOC,out_ch Return value @GOC,out_ch,contrast @SOC,out_ch,contrast @GOC,out_ch,error Parameter out_ch: Output channel 0 = All outputs 1 to 8 = OUTPUT1 to OUTPUT8 contrast: Output contrast 100 = 100% [Default]...
  • Page 49 FDX-08 Command Guide @GOB / @SOB Output brightness Function Getting Setting Format @SOB,out _ch,brightness @GOB,out _ch Return value @GOB,out _ch,brightness @SOB,out _ch,brightness @GOB,out _ch,error Parameter out_ch: Output channel 0 = All outputs 1 to 8 = OUTPUT1 to OUTPUT8 brightness: Output brightness...
  • Page 50 FDX-08 Command Guide @GFA / @SFA Dissolve effect Function Getting Setting Format @GFA,out_ch @SFA,out_ch,mode Return value @GFA,out_ch,mode @SFA,out_ch,mode @GFA,out_ch,error Parameter out_ch: Output channel 0 = All outputs 1 to 8 = OUTPUT1 to OUTPUT8 mode : Dissolve effect 1 = Enabled [Default]...
  • Page 51 FDX-08 Command Guide @GEN / @SEN HDCP output Function Getting Setting Format @GEN,out_ch @SEN,out_ch,hdcp Return value @GEN,out_ch,hdcp @SEN,out_ch,hdcp @GEN,out_ch,error Parameter out_ch: Output channel 0 = All outputs 1 to 8 = OUTPUT1 to OUTPUT8 hdcp: HDCP output 0 = HDCP is not output until an input channel with HDCP is selected. [Default] 1 = HDCP is encrypted only if input signal is with HDCP.
  • Page 52 FDX-08 Command Guide @GOA / @SOA Output settings Function Getting Setting Format @GOA,out_ch @SOA,out_ch,auto,resolution,aspect,patte rn,h_zoom,v_zoom,h_posi,v_posi,mred, mgreen,mblue,bred,bgreen,bblue,contrast, brightness,mode,hdcp Return value @GOA,out_ch,auto,resolution,aspect,patt @SOA,out_ch,auto,resolution,aspect,patte ern,h_zoom,v_zoom,h_posi,v_posi,mred, rn,h_zoom,v_zoom,h_posi,v_posi,mred, mgreen,mblue,bred,bgreen,bblue, mgreen,mblue,bred,bgreen,bblue,contrast, contrast,brightness,mode,hdcp brightness,mode,hdcp @GOA,out_ch,error Parameter out_ch: Output channel 1 to 8 = OUTPUT1 to OUTPUT8 auto: Output resolution mode 0 = Resolution can be specified for the “resolution”...
  • Page 53 FDX-08 Command Guide @GOA / @SOA Output settings (cont’d) Parameter aspect: Aspect ratio of sink device 0 = To be output with aspect ratio of output resolution [Default] 1 = 4:3 2 = 5:3 3 = 5:4 4 = 16:9...
  • Page 54 FDX-08 Command Guide @GOA / @SOA Output settings (cont’d) Parameter mode: Dissolve effect 1 = Enabled [Default] 0 = Disabled hdcp: HDCP output 0 = HDCP is not output until an input channel with HDCP is selected. [Default] 1 = HDCP is encrypted only if input signal is with HDCP.
  • Page 55 FDX-08 Command Guide @GOA / @SOA Output settings (cont’d) Example @SOA,1,0,25,0,0,1000,1000,+0,+0,0,0,0, Setting output channel 1 as follows: 0,0,0,100,100,1,0 - Output resolution mode: AUTO - Output resolution: 1080p@59.94(1920x1080) - Sink device aspect ratio: To be output with aspect ratio of output...

  • Page 56: Audio

    FDX-08 Command Guide 4.3.7 Audio @GDO / @SDO Digital audio output Function Getting Setting Format @GDO @SDO,out_1,mode_1 (,out_2,mode_2･･) @GDO,mode_1, ･･･ mode_8 Return value @SDO,out_1,mode_1 (,out_2,mode_2･･) Parameter out_1 to out_8: Output channel 0 = All outputs, 1 to 8 = OUTPUT1 to OUTPUT8...

  • Page 57: Edid Settings

    FDX-08 Command Guide 4.3.8 EDID settings @GED / @SED EDID resolution Function Getting Setting Format @GED @SED,in_1,format_1 (,in_2,format_2･･･) @GED,format_1, ･･･ format_8 Return value @SED,in_1,format_1 (,in_2,format_2･･･) Parameter in_1 to in_8: Input channel 0 = All inputs, 1 to 8 = INPUT1 to INPUT8...
  • Page 58 FDX-08 Command Guide @RME Copying EDID Function Setting Format @RME,out,number Return value @RME,out,number Parameter out: Channel to be copied 1 to 8 = OUTPUT1 to OUTPUT8 number: Destination COPY DATA number 1 to 4 = Destinations 1 to 4 Example...
  • Page 59 FDX-08 Command Guide @GDI / @SDI Deep Color input Function Getting Setting Format @SDI,in_1,color_1 (,in_2,color_2･･･) @GDI @GDI,color_1, ･･･ color_8 Return value @SDI,in_1,color_1 (,in_2,color_2･･･) Parameter in_1 to in_8: Input channel 0 = All inputs, 1 to 8 = INPUT1 to INPUT8...
  • Page 60 FDX-08 Command Guide @GSP / @SSP The number of audio channels Function Getting Setting Format @SSP,in_1,ch_1 (,in_2,ch_2･･･) @GSP @GSP,ch_1,ch_2 ･･･ ch_7,ch_8 Return value @SSP,in_1,ch_1 (,in_2,ch_2･･･) Parameter in_1 to in_8: Input channel 0 = All inputs, 1 to 8 = INPUT1 to INPUT8 ch_1 to ch_8: The number of audio channels of each input channel 0 = 2 channels [Default], 1 = 2.1 channels, 2 = 5.1 channels,...
  • Page 61 FDX-08 Command Guide @GAF / @SAF Audio format Function Getting Setting Format @SAF,in,format_1,frequency_1 (,format_ @GAF,in 2, frequency_2･･･) @GAF,in,format_1,frequency_1, ･･･ for Return value @SAF,in,format_1,frequency_1 (,format_ mat_7,frequency_7 2, frequency_2･･･) Parameter in: Input channel 1 to 8 = INPUT1 to INPUT8 format_1 to format_7: Audio format...

  • Page 62: Rs-232C Communication

    FDX-08 Command Guide 4.3.9 RS-232C communication @GCT / @SCT RS-232C communication Function Getting Setting @SCT,baudrate,length,parity,stop Format @GCT @GCT,baudrate,length,parity,stop @SCT,baudrate,length,parity,stop Return value Parameter baudrate: Baud rate 0 = 4800 bps, 1 = 9600 bps [Default], 2 = 14400 bps, 3 = 19200 bps,...

  • Page 63: Lan Communication

    FDX-08 Command Guide 4.3.10 LAN communication @GIP / @SIP IP address Function Getting Setting @GIP @SIP,unit_1,unit_2,unit_3,unit_4 Format @GIP,unit_1,unit_2,unit_3,unit_4 @SIP,unit_1,unit_2,unit_3,unit_4 Return value Parameter unit_1 to unit_4: Upper bit of the IP address to lower bit of the IP address 0 to 255 = 8 bit (Decimal notation) [Default]192.168.1.199...
  • Page 64 FDX-08 Command Guide @GLP / @SLP TCP port number Function Getting Setting Format @GLP @SLP,port,add Return value @GLP,port,add @SLP,port,add Parameter port: Port number 1100 [Default], 6000 to 6999 add: 8-connection setting 0 = 8-connection setting OFF [Default] (WEB browser 4 connections/communication command control 4 connections),...

  • Page 65: Preset Memory

    FDX-08 Command Guide 4.3.11 Preset memory @RPM Recalling preset memory Function Setting @RPM,preset Format @RPM,preset Return value Parameter preset: preset memory 1 to 32 = The number of preset memory @RPM,1 Example Recalling preset memory 1 @RPM,1 Completed － Remarks @SPM Saving preset memory –...
  • Page 66 FDX-08 Command Guide @SEM Saving preset memory – [C] Continue Function Setting Format @SEM,preset (,name) Return value @SEM,preset (,name) Parameter preset: Preset memory 1 to 32 = The number of preset memory name: Memory name Up to 10 characters from 0x20 to 0x7D of ASCII code...
  • Page 67 FDX-08 Command Guide @GPM Preset memory number matching current I/O channel status Function Getting Format @GPM Return value @GPM, video, audio Parameter video: Preset memory number matching FDX I/O status audio: Preset memory number matching MAU-1616 (optional) channel status 000 = None, 001 to 032 = The number of preset memory...

  • Page 68: Others

    FDX-08 Command Guide 4.3.12 Others @GLM / @SLM Front key function lock Function Getting Setting @GLM @SLM,channel,menu,preset Format @GLM,channel,menu,preset @SLM,channel,menu,preset Return value Parameter channel: I/O channel selection keys, channel switching selection keys, switching mode selection keys menu: Menu operation keys...
  • Page 69 FDX-08 Command Guide @GSS Board mounting status Function Getting Format @GSS,board Return value @GSS,board,slot1,slot2 Parameter board: Board selection 0 = Input board, 1 = Output board slot1 to slot4: Board mounting status If “board” is set to “0”: 0 =Board is not mounted,...
  • Page 70 FDX-08 Command Guide @GIS Input signal status (For each channel) Function Getting Format @GIS,in,mode Return value @GIS,in,mode,status_1 (,status_2,status_3) Parameter in: Input channel 1 to 8 = INPUT1 to INPUT8 mode : Status 0 = All statuses of input signals, 1 = Input mode/Input color depth,...
  • Page 71 FDX-08 Command Guide @GII Input signal status Function Getting Format @GII @GII,status_1, ･･･ status_8 Return value Parameter status_1 to status_8: Input signal status -1 = Input board is not mounted. -3 = No input signal In other cases, six characters is replied to show input signal status...
  • Page 72 FDX-08 Command Guide @GII Input signal status (cont’d) Parameter The last digit: the number of input audio channels Example Description No audio input Compressed audio 2 channels 2.1 channels 5 channels 7.1 channels @GII Example Getting input signal status @GII,H01022,H01022,-3,-3,-1,-1,-1,-1 - Input channel 1 to 2: Input mode: HDMI signal, HDCP;...
  • Page 73 FDX-08 Command Guide @GOS Sink device status (For each channel) Function Getting Format @GOS,out,mode Return value @GOS,out,mode,status_1 (,status_2) Parameter out : Output channel 1 to 8 = OUTPUT1 to OUTPUT8 mode: Status 0 = All statuses of sink device, 1 = HDCP of sink device,...
  • Page 74 FDX-08 Command Guide @GOI Sink device status Function Getting Format @GOI @GOI,status_1, ･･･ status_8 Return value Parameter status_1 to status_8: Sink device status -2 = Output board is not mounted. Upper two digits = Sink device HDCP status, Lower three digits = HDCP authentication status between sink device...
  • Page 75 FDX-08 Command Guide @GFS Cooling fan status Function Getting Format @GFS Return value @GFS,rpm1,s1, rpm2,s2, rpm3,s3, rpm4,s4, rpm5,s5 Parameter rpm1 to rpm5: Cooling fan rotation speed s1 to s5: Status 0 = Normal, 1 = Abnormal Example @GFS Getting the cooling fan rotations @GFS,3540,0,3540,0,3540,0,3540,0,354 All cooling fan speed: 3540;...

  • Page 76: Rs-232C Transmission Mode

    FDX-08 Command Guide 4.3.13 RS-232C transmission mode Sink devices connected to HDC-R series and OPF-RH1000 via RS-232C can be controlled using FDX’s HDBaseT output board or optic output board. 【See: 2.1.1 Setup of RS-232C communication】 External control RS-232C RS-232C HDC-R series...
  • Page 77 FDX-08 Command Guide When the transmission mode is set to RS-232C transmission mode, received data will be sent to the specified output channel until normal mode is set. Several sending channels can be set while only 1 receiving channel can be set.
  • Page 78 FDX-08 Command Guide @G++ / @S++ RS-232C transmission sending channel Function Getting Setting Format @G++ @S++,ch_1 (,ch_2,･･･) Return value @G++,ch_1,･･･ch_8 @S++,ch_1 (,ch_2,･･･) Parameter ch_1 to ch_8: RS-232C transmission sending channel 1 to 8 = OUTPUT1 to OUTPUT8 @G++ Example Getting status of RS-232C transmission...
