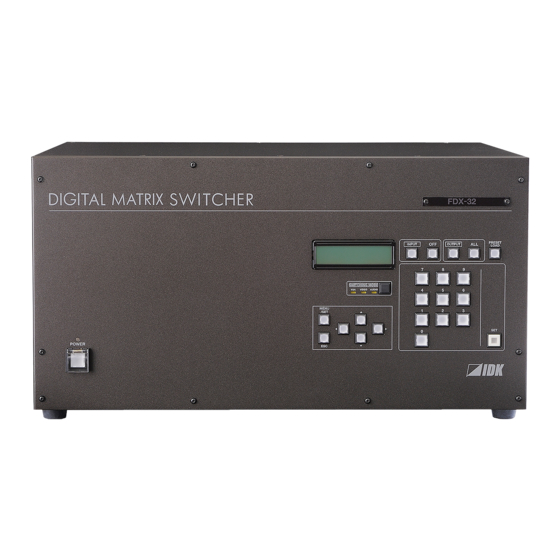

IDK FDX-32 Command Reference Manual

Digital matrix switcher
Hide thumbs Also See for FDX-32:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

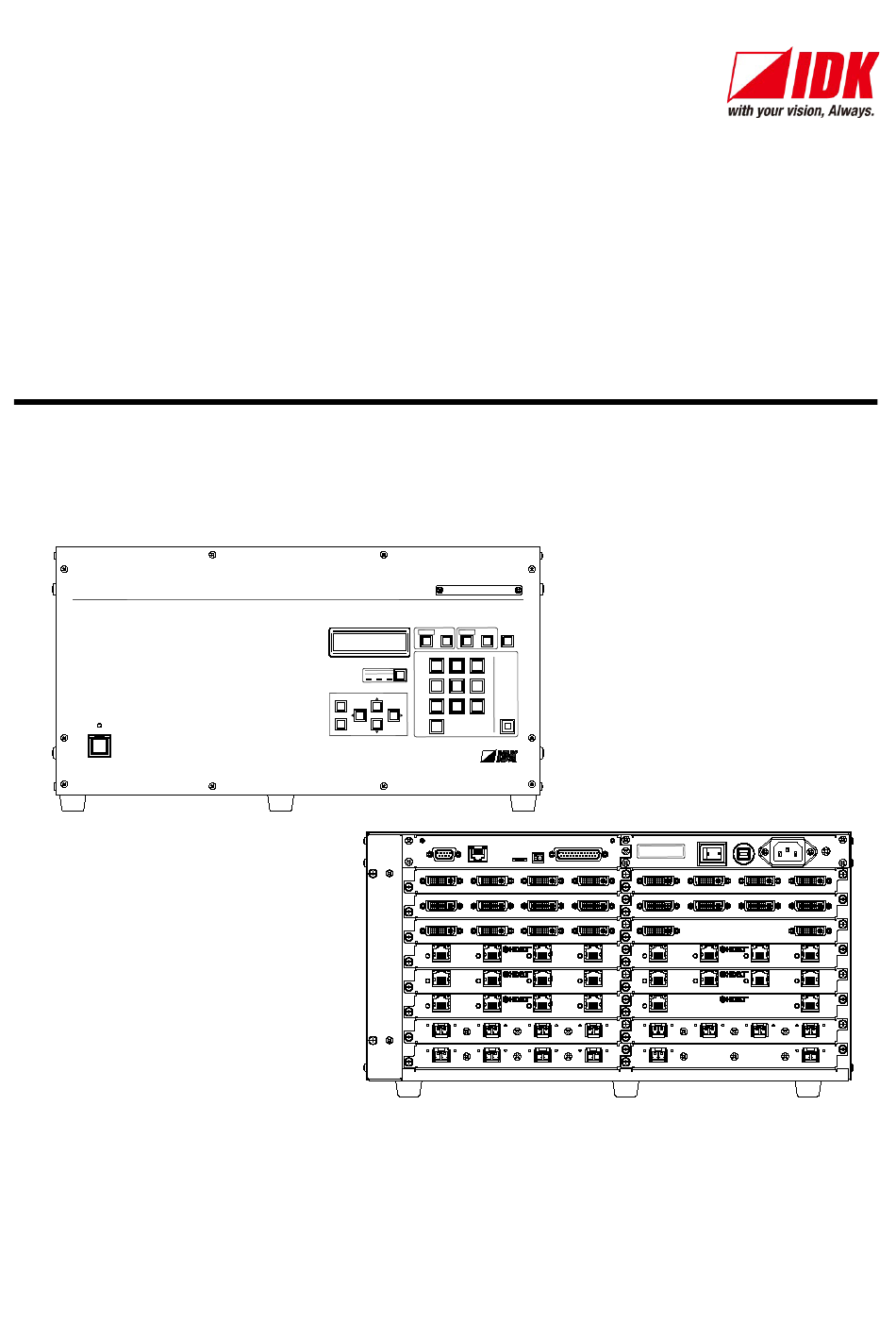

DIGITAL MATRIX SWITCHER
POWER
● Thank you for choosing our presentation switcher.
● To ensure the best performance of this product, please read this User's Guide fully and carefully before
using it and keep this manual beside the product.
FDX-32
PRESET
INPUT
OFF
OUTPUT
ALL
LOAD
7
8
9
SWITCHING MODE
V&A
VIDEO
AUDIO
4
5
6
MENU
1
2
3
/SET
SET
0
ESC
RS-232C
LAN
INPUT
A
B
1
～
4
A
D
DVI-D(HDMI)
DVI-D(HDMI)
INPUT
A
B
5
～
8
A
D
DVI-D(HDMI)
DVI-D(HDMI)
INPUT
A
B
9
～
12
A
D
DVI-D(HDMI)
DVI-D(HDMI)
INPUT
13 16
～
A
D
LINK
LINK
A
HDBaseT
B
HDBaseT
INPUT
17 20
～
A
D
LINK
LINK
A
HDBaseT
B
HDBaseT
INPUT
21 24
～
A
D
LINK
LINK
A
HDBaseT
B
HDBaseT
INPUT
～
25 28
A
D
RX
TX
RX
TX
A
OPTICAL
B
OPTICAL
INPUT
29 32
～
A
D
RX
TX
RX
TX
A
OPTICAL
B
OPTICAL
IDK Corporation
Digital Matrix Switcher
<Command Reference Guide>
OPTION
ALARM
S/N
UPDATE
C
D
A
DVI-D(HDMI)
DVI-D(HDMI)
DVI-D(HDMI)
C
D
A
DVI-D(HDMI)
DVI-D(HDMI)
DVI-D(HDMI)
C
D
A
DVI-D(HDMI)
DVI-D(HDMI)
DVI-D(HDMI)
LINK
LINK
LINK
C
HDBaseT
D
HDBaseT
A
HDBaseT
LINK
LINK
LINK
C
HDBaseT
D
HDBaseT
A
HDBaseT
LINK
LINK
LINK
C
HDBaseT
D
HDBaseT
A
HDBaseT
RX
TX
RX
TX
RX
TX
C
OPTICAL
D
OPTICAL
A
OPTICAL
RX
TX
RX
TX
RX
TX
C
OPTICAL
D
OPTICAL
A
OPTICAL
FDX-32
Ver.2.2.0
POWER
BREAKER
AC 100-240V
50/60Hz
FG
B
C
D
OUTPUT
～
DVI-D(HDMI)
DVI-D(HDMI)
DVI-D(HDMI)
1
4
A
D
B
C
D
OUTPUT
DVI-D(HDMI)
DVI-D(HDMI)
DVI-D(HDMI)
5
～
8
A
D
B
OUTPUT
～
DVI-D(HDMI)
9
12
A
D
OUTPUT
LINK
LINK
LINK
13 16
～
B
HDBaseT
C
HDBaseT
D
HDBaseT
A
D
OUTPUT
LINK
LINK
LINK
17 20
～
B
HDBaseT
C
HDBaseT
D
HDBaseT
A
D
OUTPUT
LINK
21 24
～
B
HDBaseT
A
D
RX
TX
RX
TX
RX
TX
OUTPUT
～
25 28
B
OPTICAL
C
OPTICAL
D
OPTICAL
A
D
RX
TX
OUTPUT
29 32
～
B
OPTICAL
A
D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDX-32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDK FDX-32

Summary of Contents for IDK FDX-32

  • Page 1 Digital Matrix Switcher FDX-32 <Command Reference Guide> Ver.2.2.0 DIGITAL MATRIX SWITCHER FDX-32 PRESET INPUT OUTPUT LOAD SWITCHING MODE V&A VIDEO AUDIO MENU /SET POWER POWER BREAKER AC 100-240V OPTION RS-232C 50/60Hz ALARM UPDATE INPUT ～ OUTPUT ～ DVI-D(HDMI) DVI-D(HDMI) DVI-D(HDMI)
  • Page 2 FDX-32 Command Guide Trademarks  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.  HDBaseT™ and the HDBaseT Alliance Logo are trademarks of the HDBaseT Alliance.
  • Page 3 ● Some of the contents in this command guide such as appearance diagrams, menu operations, communication commands, and so on may differ from your FDX depending on the version. ● This command guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idk.co.jp/en/index.html...

  • Page 4: Table Of Contents

    FDX-32 Command Guide Table of Contents 1 About this Guide ............................. 5 2 Communication Specification ........................6 RS-232C communication ......................... 6 2.1.1 Setting up RS-232C communication ..................6 2.1.2 RS-232C connector ........................8 2.1.3 RS-232C communication ......................8 LAN communication ........................9 2.2.1...

  • Page 5: About This Guide

    FDX-32 Command Guide 1 About this Guide This guide contains information of communication commands that control the FDX via RS-232C or LAN communication. LAN communication Control by WEB browser Control by command DIGITAL MATRIX SWITCHER FDX-32 PRESET INPUT OUTPUT LOAD SWITCHING MODE V&A...

  • Page 6: Communication Specification

    FDX-32 Command Guide 2 Communication Specification 2.1 RS-232C communication 2.1.1 Setting up RS-232C communication The FDX can be controlled via RS-232C communication. Connect the FDX with a control device (such as PC) via an RS-232C cable and use commands to control the FDX or acquire its status.
  • Page 7 FDX-32 Command Guide To set RS-232C communication: 【See 2.1.3 RS-232C】 Procedure Selecting menu Press the “MENU/SET” key to open the main menu. PRESET INPUT OUTPUT LOAD Use “▲” and “▼” keys to select “COM PORT”. Press the “MENU/SET” key to move to the SWITCHING MODE V&A...

  • Page 8: Rs-232C Connector

    FDX-32 Command Guide 2.1.2 RS-232C connector RS-232C pin assignments Control Unit RS-232C Signal Pin# Signal Cross connector 　 NC 　NC （No connection） Cable 　 RD 　RD （Received data） 　 TD 　TD （Transmitted data） 　 NC 　NC （No connection） 　 GND 　GND...

  • Page 9: Lan Communication

    FDX-32 Command Guide LAN communication 2.2.1 LAN communication The FDX can be controlled via LAN communication. Connect the FDX with a control device (such as PC) via an LAN cable and use commands to control the FDX and acquire its status.
  • Page 10 FDX-32 Command Guide To set LAN communication: Setting IP address, subnet mask, and port number. ■ IP address Selecting menu Procedure PRESET Press the “MENU/SET” key to open the main INPUT OUTPUT LOAD menu. Use “▲” and “▼” keys to select “LAN”.
  • Page 11 FDX-32 Command Guide ■ Subnet mask Procedure Selecting menu Press the “MENU/SET” key to open the main menu. PRESET INPUT OUTPUT LOAD Use “▲” and “▼” keys to select “LAN”. SWITCHING MODE Press the “MENU/SET” key to open the sub V&A...
  • Page 12 FDX-32 Command Guide ■ TCP port number Procedure Selecting menu Press the “MENU/SET” key to open the main menu. PRESET INPUT OUTPUT LOAD Use “▲” and “▼” keys to select “LAN”. Press the “MENU/SET” key to open the sub SWITCHING MODE V&A...

  • Page 13: Lan Connector

    FDX-32 Command Guide 2.2.2 LAN connector LAN connector pin assignments: Lights in orange when data can be Lights in green when the link is established. sent/received. Blinks in orange while data is being sent/received. LAN Connector Signal Name Pin #...

  • Page 14: The Number Of Tcp-Ip Connections

    FDX-32 Command Guide 2.2.4 The number of TCP-IP connections The FDX series can connect up to eight connections (eight ports) simultaneously. If the FDX is controlled from nine or more PCs, they may not be connected to the FDX normally, since the number of connections that can be used simultaneously is limited.

  • Page 15: Channel Configuration

    FDX-32 Command Guide 3 Channel Configuration Outline An I/O slot board has four channels. An output slot board has four channels or two channels (scan converter output slot board). 3.1.1 Channel of output slot board ・ The channel numbers of scan converter output slot board are the first two channels only; the rest of two channels cannot be set.

  • Page 16: Command

    FDX-32 Command Guide 4 Command Command specification The FDX can be controlled by regular command or compatible mode communication command. 4.1.1 Regular command A command consists of “@” (“40” in hex), 3 one-byte alphabetical characters (upper and lower cases), and parameters (one-byte numbers).

  • Page 17: Compatible Mode Communication Command

    FDX-32 Command Guide 4.1.2 Compatible mode communication command The FDX can be controlled by compatible mode communication command as well. To use this command, change the setting of communication command mode as follows. ■Compatible mode communication command Procedure Selecting menu Press the “MENU/SET”...
  • Page 18 FDX-32 Command Guide A command consists of one-byte alphabetical characters (upper and lower cases) and parameters (one-byte numbers). Processing is executed by sending a delimiter at the end of the command. Example: s,3 “,”( a comma, “2C” in hex) is used between a command and parameter and between two parameters.

  • Page 19: Command List

    FDX-32 Command Guide Command list Error status Command Description @ERR Error status I/O channel selection Command Description @GVA / @IOS Switching I/O channels of FDX and MAU-3232 (optional) simultaneously @GCP / @IOV Switching only FDX I/O channel @GCA / @IOA...
  • Page 20 FDX-32 Command Guide Output timing setting Command Description @GOT / @SOT Output resolution @GUM / @SUM Aspect ratio of sink device @GTP / @STP Test pattern output @GMR / @SMR Display size/position @GBC / @SBC Blank color /Background color @GOC / @SOC...
  • Page 21 FDX-32 Command Guide Other setting Command Description @GLM / @SLM Key lock @GST Slot board status @GSS Slot board mounting status @GIV Version @GIS Input signal status @GII Input signal status display @GOS Sink device status (for each channel) @GOI...

  • Page 22: Detailed Descriotion

    FDX-32 Command Guide Detailed description 4.3.1 Error status @ERR Error status Function Getting Format Only return value Return value @ERR, error Parameter error: error status 1 = Wrong parameter format or value 2 = Undefined command or wrong format 4 = EDID reading from sink device failed.

  • Page 23: I/O Channel Selection

    FDX-32 Command Guide 4.3.2 I/O channel selection @GVA / @IOS Switching I/O channels of FDX and MAU-3232 (optional) simultaneously Function Getting Setting Format @GVA @IOS,in_1,out_1 (,in_2,out_2･･･) @GVA,v_1,a_1, ･･･ v_32,a_32 Return value @IOS,in_1,out_1 (,in_2,out_2･･･) Parameter in_1 to in_32 : Input channels of FDX and MAU-3232...
  • Page 24 FDX-32 Command Guide @GCP / @IOV Switching only FDX I/O channels Function Getting Setting Format @GCP @IOV,in_1,out_1 (,in_2,out_2･･･) @GCP,v_1,v_2, ･･･ v_31,v_32 Return value @IOV,in_1,out_1 (,in_2,out_2･･･) Parameter in_1 to in_32 : FDX input channel 0 = OFF, 1 to 32 = INPUT1 to INPUT32...
  • Page 25 FDX-32 Command Guide @SSC Straight Switching* I/O of FDX and MAU-3232 Function Setting @SSC Format @SSC Return value － Parameter @SSC Example Setting I/O of FDX and MAU-3232 to the same number I/O. @SSC Completed normally. Remarks *For example, OUTPUT1 is connected to INPUT1; OUTPUT2 is connected to INPUT2;...
  • Page 26 FDX-32 Command Guide @GCY / @SCY Copying input channel setting of output channel Function Getting Setting Format @GCY,sch @SCY,sch,dch_1 (,dch_2･･･) @GCY,sch,dch_1, ･･･ dch_32 Return value @SCY,sch,dch_1 (,dch_2･･･) Parameter sch : Output channel that have target input channel for copying settings...

  • Page 27: Input Setting

    FDX-32 Command Guide 4.3.3 Input setting @GIQ / @SIQ Input equalizer Function Getting Setting Format @GIQ @SIQ,in_1,level_1 (,in_2,level_2･･･) @GIQ,level_1, ･･･ level_32 Return value @SIQ,in_1,level_1 (,in_2,level_2･･･) Parameter in_1 to in_32 : Input channel 0 = All inputs, 1 to 32 = INPUT1 to INPUT32...
  • Page 28 FDX-32 Command Guide @GHE / @SHE HDCP input enabled/disabled Function Getting Setting Format @GHE @SHE,in_1,hdcp_1 (,in_2,hdcp_2･･･) @GHE,hdcp_1, ･･･ hdcp_32 Return value @SHE,in_1,hdcp_1 (,in_2,hdcp_2･･･) Parameter in_1 to in_32 : Input channel 0 = All inputs, 1 to 32 = INPUT1 to INPUT32...

  • Page 29: Input Timing Setting

    FDX-32 Command Guide 4.3.4 Input timing setting @GPI / @SPI Start position of input video loading Function Getting Setting @SPI,in_ch,h_posi,v_posi Format @GPI,in_ch @GPI,in_ch,h_posi,v_posi @SPI,in_ch,h_posi,v_posi Return value Parameter in_ch : Input channel 1 to 32 = INPUT1 to INPUT32 - 1 = Input slot board is not installed...
  • Page 30 FDX-32 Command Guide @GSI / @SSI Input size Function Getting Setting @SSI,in_ch,h_size,v_size Format @GSI,in_ch @GSI,in_ch,h_size,v_size @SSI,in_ch,h_size,v_size Return value Parameter in_ch : Input channel 1 to 32 = INPUT1 to INPUT32 - 1 = Input slot board is not installed. - 2 = Scan converter output slot board is not installed.
  • Page 31 FDX-32 Command Guide @GAP / @SAP Input video aspect ratio Function Getting Setting @SAP,in_ch,aspect Format @GAP,in_ch @GAP,in_ch,aspect @SAP,in_ch,aspect Return value Parameter in_ch : Input channel 1 to 32 = INPUT1 to INPUT32 - 1 = Input slot board is not installed.
  • Page 32 FDX-32 Command Guide @GIC / @SIC Input contrast Function Getting Setting @SIC,in_ch,red,green,blue Format @GIC,in_ch @GIC,in_ch,red,green,blue @SIC,in_ch,red,green,blue Return value Parameter in_ch : Input channel 1 to 32 = INPUT1 to INPUT32 - 1 = Input slot board is not installed. - 2 = Digital scaler output slot board is not installed.
  • Page 33 FDX-32 Command Guide @GIB / @SIB Input brightness Function Getting Setting @SIB,in_ch,brightness Format @GIB,in_ch @GIB,in_ch,brightness @SIB,in_ch,brightness Return value Parameter in_ch : Input channel 1 to 32 = INPUT1 to INPUT32 - 1 = Input slot board is not installed. - 2 = Scan converter output slot board is not installed.
  • Page 34 FDX-32 Command Guide @GGM / @SGM Input gamma Function Getting Setting @SGM,in_ch, gamma Format @GGM,in_ch @GGM,in_ch,gamma @SGM,in_ch, gamma Return value Parameter in_ch : Input channel 1 to 32 = INPUT1 to INPUT32 - 1 = Input slot board is not installed.
  • Page 35 FDX-32 Command Guide @GHU / @SHU Input HUE Function Getting Setting @SHU,in_ch,hue Format @GHU,in_ch @GHU,in_ch,hue @SHU,in_ch,hue Return value Parameter in_ch : Input channel 1 to 32 = INPUT1 to INPUT32 - 1 = Input slot board is not installed.. - 2 = Scan converter output slot board is not installed..
  • Page 36 FDX-32 Command Guide @GEF / @SEF Input corrections Function Getting Setting Format @GEF,in_ch @SEF,in_ch,h_size,v_size,h_posi,v_posi, aspect,red,green,blue,brightness,gamma, sharpness,hue,saturation Return value @GEF,in_ch,h_size,v_size,h_posi,v_posi, @SEF,in_ch,h_size,v_size,h_posi,v_posi, aspect,red,green,blue,brightness,gamma, aspect,red,green,blue,brightness,gamma, sharpness,hue,saturation sharpness,hue,saturation Parameter in_ch : Input channel 1 to 32 = INPUT1 to INPUT32 - 1 = Input slot board is not installed..
  • Page 37 FDX-32 Command Guide @GEF / @SEF Input corrections Parameter : Input contrast value RED green : Input contrast value GREEN blue : Input contrast value BLUE 100 = 100 % [Default] 0 to 100 = 0% to 100% brightness : Input brightness value...
  • Page 38 FDX-32 Command Guide @GEF / @SEF Input corrections Example @SEF,1,+0,+0,+0,+0,0,100,100,100, Setting input channel correction values of 100,10,0,0,100 input channel1 as follows. ・Horizontal and vertical reading size: 0 ・Horizontal and vertical start position: 0 ・Input aspect ratio: Automatic correction ・Input contrast: Red, green, blue: 100% ・Input brightness:100%...

  • Page 39: Output Setting

    FDX-32 Command Guide 4.3.5 Output setting @GEQ / @SEQ Output equalizer Function Getting Setting Format @GEQ @SEQ,out_1,level_1 (,out_2,level_2･･･) @GEQ,level_1, ･･･ level_32 Return value @SEQ,out_1,level_1 (,out_2,level_2･･･) Parameter out_1 to out_32: Output channel 0 = All inputs, 1 to 32 = OUTPUT1 to OUTPUT32...
  • Page 40 FDX-32 Command Guide @GHM / @SHM Sink device EDID check Function Getting Setting Format @GHM @SHM,out_1,mode_1 (,out_2,mode_2･･) @GHM,mode_1, ･･･ mode_32 Return value @SHM,out_1,mode_1 (,out_2,mode_2･･) Parameter out_1 to out_32 :Output channel 0 = All inputs, 1 to 32 = OUTPUT1 to OUTPUT32 mode_1 to mode_32 :How to check EDID of output channel sink device 0 = At EDID reading error, it istreated as a DVI device.
  • Page 41 FDX-32 Command Guide @GMK / @SMK Hot plug off mask time Function Getting Setting Format @GMK @SMK,out_1,mask_1 (,out_2,mask_2･･) @GMK,mask_1, ･･･ mask_32 Return value @SMK,out_1,mask_1 (,out_2,mask_2･･) Parameter out_1 to out_32:Output channel 0 = All inputs, 1 to 32 = OUTPUT1 to OUTPUT32...

  • Page 42: Output Timing Setting

    FDX-32 Command Guide 4.3.6 Output timing setting @GOT / @SOT Output resolution Function Getting Setting @SOT,out_ch,auto,resolution Format @GOT,out_ch @GOT,out_ch,auto,resolution @SOT,out_ch,auto,resolution Return value Parameter out_ch: Output channel 1 to 32 = OUTPUT1 to OUTPUT32 -2 = Scan converter output slot board is not installed..
  • Page 43 FDX-32 Command Guide @GOT / @SOT Output resolution @GOT,1 Example Getting the current output resolution of output channel1. @GOT,1,1,25 Automatically set to 1080p@59.94 (1920x1080) @SOT,1,0,25 Setting output resolution of output channel1 to “25” 1080p@59.94(1920x1080)). @SOT,1,0,25 Completed normally. Remarks Supported since firmware ver.2.xx.
  • Page 44 FDX-32 Command Guide @GTP / @STP Test pattern output Function Getting Setting Format @GTP,out_ch @STP,out_ch,pattern @GTP,out_ch,pattern @STP,out_ch,pattern Return value Parameter out_ch: Output channel 1 to 32 = OUTPUT1 to OUTPUT32 - 2 = Scan converter output slot board is not installed..
  • Page 45 FDX-32 Command Guide @GMR / @SMR Display size/position Function Getting Setting Format @GMR,out_ch @SMR,out_ch,h_zoom,v_zoom,h_posi, v_posi Return value @GMR,out_ch,h_zoom,v_zoom,h_posi, @SMR,out_ch,h_zoom,v_zoom,h_posi, v_posi v_posi Parameter out_ch: Output channel 1 to 32 = OUTPUT1 to OUTPUT32 - 2 = Scan converter output slot board is not installed..
  • Page 46 FDX-32 Command Guide @GBC / @SBC Blank color /Background color Function Getting Setting Format @GBC,out_ch @SBC,out_ch,mred,mgreen,mblue,bred, bgreen,bblue Return value @GBC,out_ch,mred,mgreen,mblue,bred, @SMR,out_ch,mred,mgreen,mblue,bred, bgreen,bblue bgreen,bblue Parameter out_ch: Output channel 0 = All inputs 1 to 32 = OUTPUT1 to OUTPUT32 -2 = Scan converter output slot board is not installed..
  • Page 47 FDX-32 Command Guide @GOC / @SOC Output contrast Function Getting Setting Format @GOC,out_ch @SOC,out_ch,contrast @GOC,out_ch,contrast @SOC,out_ch,contrast Return value Parameter out_ch: Output channel 0 = All inputs 1 to 32 = OUTPUT1 to OUTPUT32 - 2 = Scan converter output slot board is not installed..
  • Page 48 FDX-32 Command Guide @GFA / @SFA Video switching effect Function Getting Setting @GFA,out_ch @SFA,out_ch,mode Format @GFA,out_ch,mode @SFA,out_ch,mode Return value Parameter out_ch: Output channel 0 = All inputs 1 to 32 = OUTPUT1 to OUTPUT32 - 2 = Scan converter output slot board is not installed..
  • Page 49 FDX-32 Command Guide @GEN / @SEN HDCP output Function Getting Setting @GEN,out_ch @SEN,out_ch,hdcp Format @GEN,out_ch,hdcp @SEN,out_ch,hdcp Return value Parameter out_ch: Output channel 0 = All inputs 1 to 32 = OUTPUT1 to OUTPUT32 - 2 = Scan converter output slot board is not installed..
  • Page 50 FDX-32 Command Guide @GOA / @SOA Output setting Function Getting Setting @GOA,out_ch Format @SOA,out_ch,auto,resolution,aspect,patte rn,h_zoom,v_zoom,h_posi,v_posi,mred, mgreen,mblue,bred,bgreen,bblue,contrast, brightness,mode,hdcp Return value @GOA,out_ch,auto,resolution,aspect,patt @SOA,out_ch,auto,resolution,aspect,patte ern,h_zoom,v_zoom,h_posi,v_posi,mred, rn,h_zoom,v_zoom,h_posi,v_posi,mred, mgreen,mblue,bred,bgreen,bblue, mgreen,mblue,bred,bgreen,bblue,contrast, contrast,brightness,mode,hdcp brightness,mode,hdcp Parameter out_ch: Output channel 1 to 32 = OUTPUT1 to OUTPUT32 - 2 = Scan converter output slot board is not installed..
  • Page 51 FDX-32 Command Guide @GOA / @SOA Output setting Parameter aspect : Aspect ratio of sink device 0 = To be output at the aspect ratio of output resolution [Default] 1 = Aspect ratio 4:3 2 = Aspect ratio 5:3 3 = Aspect ratio 5:4...
  • Page 52 FDX-32 Command Guide @GOA / @SOA Output setting Parameter mode : Fade out/in 1 = Valid [Default] 0 = Invalid hdcp : HDCP output 0 = HDCP is not output until an input channel which has HDCP is selected. [Default] 1 = HDCP is output only if input signals are with HDCP.
  • Page 53 FDX-32 Command Guide @GOA / @SOA Output setting Example @SOA,1,0,25,0,0,1000,1000,+0,+0,0,0,0, Setting output of output channel1 as 0,0,0,100,100,1,0 follows: ・Output resolution mode: Manual ・Output resolution: 1080p@59.94(1920x 1080) ・ Sink device aspect ratio: To be output at the aspect ratio of output resolution.

  • Page 54: Audio Setting

    FDX-32 Command Guide 4.3.7 Audio setting @GDO / @SDO Digital audio output Function Getting Setting Format @GDO @SDO,out_1,mode_1 (,out_2,mode_2･･) @GDO,mode_1, ･･･ mode_32 Return value @SDO,out_1,mode_1 (,out_2,mode_2･･) Parameter out_1 to out_32 : Output channel 0 = All outputs, 1 to 32 = OUTPUT1 to OUTPUT32 mode_1 to mode_32 : Digital audio output of each output channel 0 = Stop output, 1 = Audio output [Default], -2 = Output slot board is not mounted.

  • Page 55: Edidsetting

    FDX-32 Command Guide 4.3.8 EDID setting @GED / @SED EDID resolution Function Getting Setting Format @GED @SED,in_1,format_1 (,in_2,format_2･･･) @GED,format_1, ･･･ format_32 Return value @SED,in_1,format_1 (,in_2,format_2･･･) Parameter in_1 to in_32 : Input channel 0 = All inputs, 1 to 32 = INPUT1 to INPUT32...
  • Page 56 FDX-32 Command Guide @RME Copying EDID Function Setting @RME,out,number Format @RME,out,number Return value Parameter out :Channel to be loaded 1 to 32 = OUTPUT1 to OUTPUT32 number : Destination memory number 1 to 4 = Memory 1 to 4 Example...
  • Page 57 FDX-32 Command Guide @GDI / @SDI Deep Color input Function Getting Setting Format @GDI @SDI,in_1,color_1 (,in_2,color_2･･･) @GDI,color_1, ･･･ color_32 Return value @SDI,in_1,color_1 (,in_2,color_2･･･) Parameter in_1 to in_32: Input channel 0 = All inputs, 1 to 32 = INPUT1 to INPUT32...
  • Page 58 FDX-32 Command Guide @GSP / @SSP The number of audio channels Function Getting Setting Format @GSP @SSP,in_1,ch_1 (,in_2,ch_2･･･) @GSP,ch_1,ch_2 ･･･ ch_31,ch_32 Return value @SSP,in_1,ch_1 (,in_2,ch_2･･･) Parameter in_1 to in_32 : Input channel 0 = All inputs, 1 to 32 = INPUT1 to INPUT32...
  • Page 59 FDX-32 Command Guide @GAF / @SAF Audio format Function Getting Setting Format @GAF,in @SAF,in,format_1,frequency_1 (,format_ 2, frequency_2･･･) @GAF,in,format_1,frequency_1, ･･･ for Return value @SAF,in,format_1,frequency_1 (,format_ mat_7,frequency_7 2, frequency_2･･･) Parameter in : Input channel 1 to 32 = INPUT1 to INPUT32 format_1 to format_7 : Audio format...

  • Page 60: Rs-232C Communication

    FDX-32 Command Guide 4.3.9 RS-232C communication @GCT / @SCT RS-232C communication Function Getting Setting @SCT,baudrate,length,parity,stop Format @GCT @GCT,baudrate,length,parity,stop @SCT,baudrate,length,parity,stop Return value Parameter baudrate: Baud rate 0 = 4800 bps, 1 = 9600 bps [Default], 2 = 14400 bps, 3 = 19200 bps,...

  • Page 61: Lan Coomunication

    FDX-32 Command Guide 4.3.10 LAN communication @GIP / @SIP IP address Function Getting Setting @GIP @SIP,unit_1,unit_2,unit_3,unit_4 Format @GIP,unit_1,unit_2,unit_3,unit_4 @SIP,unit_1,unit_2,unit_3,unit_4 Return value Parameter unit_1 to unit_4 : Upper bit of the IP address to lower bit of the IP address 0 to 255 = 8 bit (Decimal notation) [Default]192.168.1.199...
  • Page 62 FDX-32 Command Guide @GLP / @SLP TCP port number Function Getting Setting @GLP @SLP,port,add Format @GLP,port,add @SLP,port,add Return value Parameter port : Port number 1100 [Default], 6000 to 6999 add : 8 connection setting 0 = 8 connection setting OFF [Default]...

  • Page 63: Preset Memory

    FDX-32 Command Guide 4.3.11 Preset memory @RPM Loading preset memory Function Setting @RPM,preset Format @RPM,preset Return value Parameter Preset: Preset memory 1 to 32 = Preset memory number @RPM,1 Example Loading preset memory 1. @RPM,1 Completed normally. － Remarks @SPM Saving preset memory –...
  • Page 64 FDX-32 Command Guide @SEM Saving preset memory – [C] Continue Function Setting @SEM,preset (,name) Format @SEM,preset (,name) Return value Parameter preset: Preset memory 1 to 32 = Preset memory number name: Memory name Up to 10 characters from 0x20 to 0x7D of ASCII code.
  • Page 65 FDX-32 Command Guide @GPM Preset memory number matching current I/O channel status Function Getting @GPM Format @GPM, video, audio Return value Parameter video : Preset memory number matching FDX I/O status audio : Preset memory number matching MAU-3232 channel status...

  • Page 66: Others

    FDX-32 Command Guide 4.3.12 Others @GLM / @SLM Key lock Function Getting Setting @GLM @SLM,channel,menu,preset Format @GLM,channel,menu,preset @SLM,channel,menu,preset Return value Parameter channel : I/O output channel selection keys/channel switching direction keys/ switching mode selection keys menu : Menu operation keys...
  • Page 67 FDX-32 Command Guide @GSS Slot board mounting status Function Getting @GSS,board Format @GSS,board,slot1, ･･･,slot8 Return value Parameter board: Selecting slot board 0 = Input slot board, 1 = Output slot board slot1 to slot8 : Slot board mounting status 0 = Slot board is not mounted.,...
  • Page 68 FDX-32 Command Guide @GIS Input signal status Function Getting @GIS,in,mode Format @GIS,in,mode,status_1 (,status_2,status_3) Return value Parameter in : Input channel 1 to 32 = INPUT1 to INPUT32 mode : Status 0 = All statuses of input signals, 1 = Input mode/Input color depth,...
  • Page 69 FDX-32 Command Guide @GII Input signal status display Function Getting @GII Format @GII,status_1, ･･･ status_32 Return value Parameter status_1 to status_32 : Input signal status -1 = Input slot board is not installed. -3 = No input signal In other cases, six characters is replied to show input signal status.
  • Page 70 FDX-32 Command Guide @GII Input signal status display Parameter The last digit: the number of input audio channels Displayed value Description No audio input Compressed audio 2 channels 2.1 channels 5 channels 7.1 channels @GII Example Getting input signal status.
  • Page 71 FDX-32 Command Guide @GOS Sink device status (for each channel) Function Getting Format @GOS,out,mode @GOS,out,mode,status_1 (,status_2) Return value Parameter out : Output channel 1 to 32 = OUTPUT1 to OUTPUT32 mode: Status 0 = All statuses of sink device, 1 = HDCP of sink device,...
  • Page 72 FDX-32 Command Guide @GOI Sink device status Function Getting Format @GOI @GOI,status_1, ･･･ status_32 Return value Parameter status_32 to status_32 : Sink device status -2 = Output slot board is not installed. Upper two digits = Sink device HDCP status,...
  • Page 73 FDX-32 Command Guide @GFS Cooling fan status Function Getting @GFS Format Return value @GFS,rpm1,s1, rpm2,s2, rpm3,s3, rpm4,s4, rpm5,s5, rpm6,s6, rpm7,s7 (, rpm8,s 8, rpm9,s9, rpm10,s10) Parameter rpm1 to rpm10: The number of cooling fan rotation speed rpm8 to rpm10: only if redundant power supply unit is mounted.

  • Page 74: Compatible-Mode Communication Command

    FDX-32 Command Guide 4.3.13 Compatible-mode communication command mode / AV / V / A Switching mode Function Getting Setting mode (Switching FDX and MAU-3232 I/O Format channels simultaneously) (Switching only FDX I/O channels) (Switching only MAU-3232 I/O channels) － status...
  • Page 75 FDX-32 Command Guide z / None Switching I/O channel Function Getting Setting z,output_xx Format input_1,output_1 (,input_2,output_2･･･) － input_v/input_a Return value Parameter input_1 to input_32 : Input channel q = OFF, 0 = OFF, 1 to 32 = INPUT1 to INPUT32...
  • Page 76 FDX-32 Command Guide y / s / t Getting/saving/calling preset memory Function Getting Setting y,preset s,preset (Saving preset memory) Format t,preset (Calling preset memory) － Return value v_1;･･･v_32/a_1;･･･a_32 Parameter preset: Preset memory 1 to 32 = Preset memory number 1 to 32...
  • Page 77 FDX-32 Command Guide ky / kl / ku Key lock status/setting key lock/releasing key lock Function Getting Setting Format (Key lock) (Releasing key lock) － lock Return value Parameter lock: Key lock status FREE = Releasing key lock [Default], LOCK = Key lock Example Getting key lock status.

  • Page 78: Rs-232C Transmission Mode

    FDX-32 Command Guide 4.3.14 RS-232C transmission mode Sink devices connected to HDC-R series and OPF-RH1000 via RS-232C can be controlled using FD X’s HDBaseT output slot board or optical output slot board. External control RS-232C POWER BREAKER AC 100-240V RS-232C...
  • Page 79 FDX-32 Command Guide When the transmission mode is set to RS-232C transmission mode, received data will be sent to the specified output channel until normal mode is set. Several sending channels can be set while only 1 receiving channel can be set.
  • Page 80 FDX-32 Command Guide @G++ / @S++ RS-232C transmission sending channel setting Function Getting Setting @G++ Format @S++,ch_1 (,ch_2,･･･) Return value @G++,ch_1,･･･ch_32 @S++,ch_1 (,ch_2,･･･) Parameter ch_1 to ch_32: RS-232C transmission sending channel 1 to 32 = OUTPUT1 to OUTPUT32 @G++ Example Getting status of RS-232C transmission sending channel.
  • Page 81 FDX-32 Command Guide FDX-32 User’s guide (Command Guide) Ver.2.2.0 Revised on: 23 March 2017 Headquarters IDK Corporation 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http: //www.idk.co.jp/en/index.html IDK America Inc. 72 Grays Bridge Road Suite 1-C, Brookfield, CT 06804 TEL: +1-203-204-2445 Email: info@idkav.com URL: http: //www.idkav.com...
