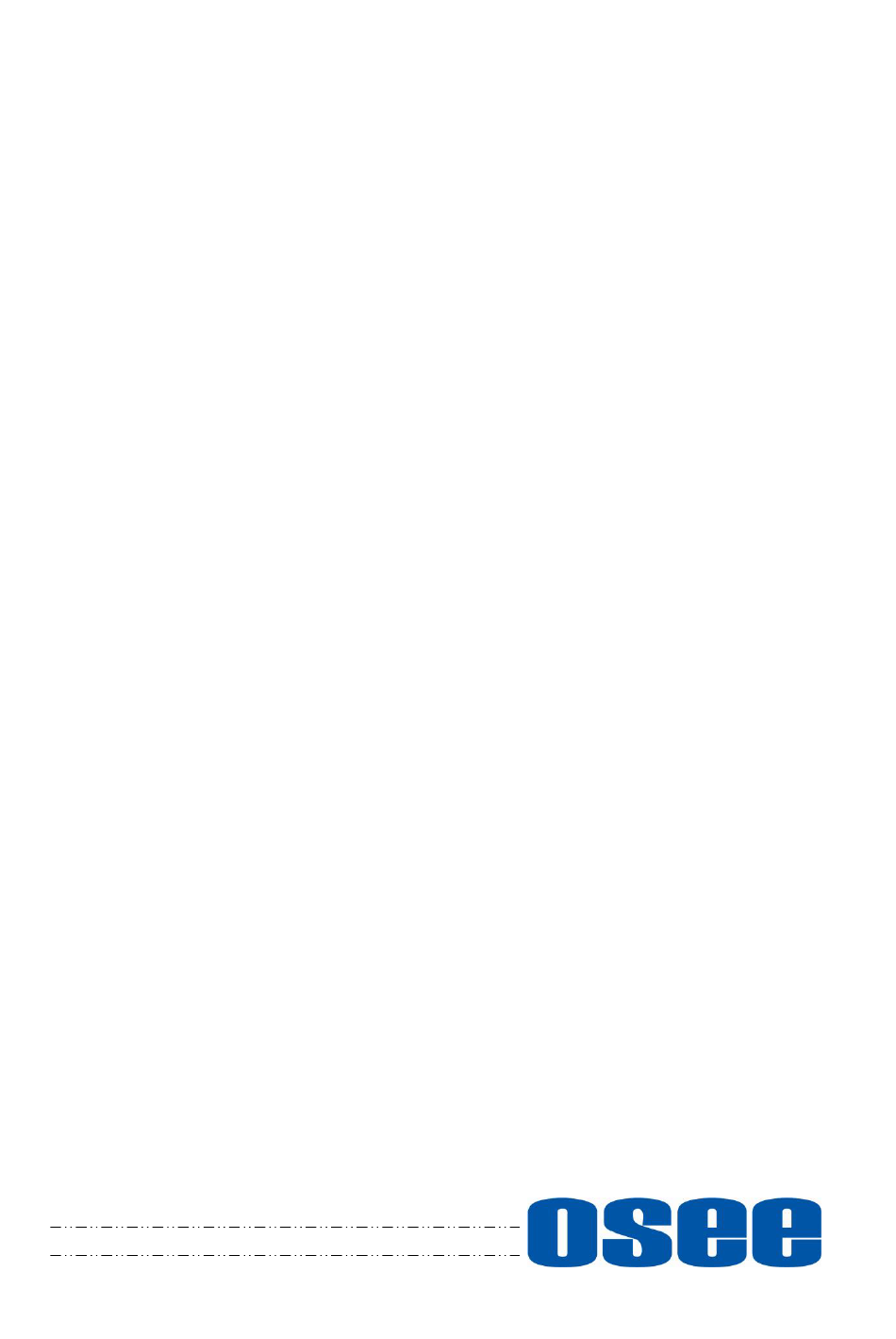

  • Page 1 LMW-4320 LCD Monitor User Manual...
  • Page 3 Product Information LMW-4320 LCD Monitor Model: Version: V010000 Release Date: April 17th, 2018 Company OSEE TECHNOLOGY CO., LTD. Contact Information No.22 Building, No.68 zone, Beiqing Road, Haidian District, Address: Beijing, China Post Code: 100094 (+86) 010-62434168 Tel: Fax: (+86) 010-62434169 Web: http://www.osee-dig.com.cn/...

  • Page 4: Contents

    The user manual applies to the following device types:  LMW-4320 The images of LMW-4320 are adopted in the following descriptions. Any of the different specifications between the device types are elaborated. Before reading the manual, please confirm the device type.

  • Page 5: Table Of Contents

    Chapter 1 Overview ..................1 Chapter 2 Safety ..................... 3 Chapter 3 Unpack and Installation ............... 7 Chapter 4 LMW-4320 Features ..............9 4.1 Front Panel Features ................ 10 4.1.1 Arrangement of Front Panel ............10 4.1.2 Operation of Front Panel ..............11 4.2 Rear Panel Features ................

  • Page 7: Chapter 1 Overview

    By adopting the advanced 10-bit digital signal processing technology plus 3D comb filter, de-interlacing capability and accurate scaling ensures the LMW-4320 LCD Monitor to achieve a better effect of smoother and more natural image. The LMW-4320 LCD Monitor supports up to 4Ch 3G/HD/SD-SDI inputs.
  • Page 8 Overview  Using 10-bit signal processing technology plus advanced conversion technology between the interlacing and the progressive  Support HDR technology and wide range color space  Support multiple color space: ITU-R BT.2020, DCI-P3, S-GAMUT/S-GAMUT3, S-GAMUT3.Cine  Support multiple EOTFs: 1.8/2.2/2.4/2.6/2.8, and BT.1886, S-Log2, S-Log3, SMPTE ST2084, HLG ...

  • Page 9: Chapter 2 Safety

    Safety Chapter 2 Safety FCC Caution Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 10 Safety Warnings: Read, keep and follow all of these instructions for your safety. Heed all warnings. Device  Install in accordance with the manufacturer's instructions.  Do not beat with a hard object or scratch the LCD display.  Do not make the freeze picture displaying on the screen time too long, otherwise, it will leave the afterimage on the screen.
  • Page 11 Safety heat.  A nameplate indicating operating voltage, etc., is located on the rear panel.  The socket-outlet shall be installed near the equipment and shall be easily accessible. Power Supply Cord  Do not defeat the safety purpose of the polarized or grounding-type plug.

  • Page 13: Chapter 3 Unpack And Installation

    Chapter 3 Unpack and Installation Unpack: When unpacking the components of LMW-4320 monitor, please verify that none of the components listed in Table 3.1 are damaged or lack. If there is any missing, contact your distributors or OSEE Technology Co., Ltd. for it.
  • Page 14 Unpack and Installation switch located on the front panel.  Connect a standard signal line to the corresponding input port. All BNC connector impedance must be 75Ω.  Please use the power cord supplied to avoid unnecessary trouble.  The factory default value for IP address is 192.168.1.86.

  • Page 15: Chapter 4 Lmw-4320 Features

    LMW-4320 Features Chapter 4 LMW-4320 Features This chapter describes the features of LMW-4320 monitor. The features of LMW-4320 monitor are as shown in Figure 4-1 after installed and powered Figure 4-1 Features of LMW-4320 Monitor Status Information The Status Information is displayed in the top left corner of the screen, and includes the input channel and signal format.

  • Page 16: Front Panel Features

    LMW-4320 Features Audio Meter It is displayed for audio monitoring. You can set its groups, position and mode in USER CONFIG menu. Timecode It is displayed at the bottom of the image, the format is HH:MM:SS:FF, if there is no timecode available, the monitor will display --:--:--:--.

  • Page 17: Operation Of Front Panel

    LMW-4320 Features Figure 4.1-1 the Buttons in Front Panel As shown in Figure 4.1-1, the buttons of LMW-4320 are as follows: INPUT : LEFT ARROW : DOWN ARROW : UP ARROW POWER LEFT/RIGHT SPEAKERS : RIGHT ARROW EARPHONE  All of these buttons have light indicators.
  • Page 18 LMW-4320 Features shown in Figure 4.1-2. Use it to select an input signal source, press it again to toggle among these input signal items, or after the input source menu displayed, use the (UP) or (DOWN) button to toggle among these input signal items.
  • Page 19 LMW-4320 Features Adjust Menu Description Range Default Volume Adjust the volume 0~31dB Brightness Adjust the image brightness 0~100 Contrast Adjust the image contrast 0~100 Chroma Adjust the image color intensity 0~100 0 ～ 63 Aperture Adjust the image sharpness  After you have loaded the adjust menu list, it will be closed automatically if you do nothing operation on it within the Osd Time.

  • Page 20: Rear Panel Features

    LMW-4320 Features button will enter into the next level menu.  Without the Main menu: when not displaying the Main menu, press RIGHT button to display the Shortcut Menu list. This button is a FUNCTION button. The function can be assigned via the CONFIG menu.

  • Page 21: Arrangement Of Rear Panel

    LMW-4320 Features 4.2.1 Arrangement of Rear Panel For the arrangement of the rear panel of LMW-4320 is shown in Figure 4.2-1, there are various input and output interfaces at the rear panel. Figure 4.2-1 The Rear Panel of LMW-215 Monitor...
  • Page 22 LMW-4320 Features Power Switch It provides one power switch to switch on or switch off. As shown in Figure 4.2-2, push the button to the direction “-” to switch on the power, or push the button to the direction “ ” to switch off the power.

  • Page 23: Supported Signal Format

    LMW-4320 Features PIN No. RS485 IN Terminal Signal RS485 OUT Terminal Signal Ethernet (RJ-45) It provides one 10/100M Ethernet connector. It is used to connect with a control computer and to set the monitor settings by network control page. 4.3 Supported Signal Format The supported signal format for this device is as shown in Table 4.3-1:...
  • Page 24 LMW-4320 Features Signal Format  4096*2160P60/59.94  4096*2160P50  3840*2160P60/59.94  3840*2160P50...

  • Page 25: Chapter 5 Functionality Of The Main Menu

    Functionality of the Main Menu Chapter 5 Functionality of the Main Menu This chapter describes the structure and functionality of the main menu, and introduces how to modify and customize the menu settings. The main menu includes the following menu items, as shown in Figure5-1. Figure 5-1 Main Menu 5.1 Main Menu Press the OK button at the bottom of the front panel, the main menu is...
  • Page 26 Functionality of the Main Menu The menu interface is divided into three parts: Main Menu List It contains the menu list of the Main menu. Press UP or DOWN to access the corresponding menu item. Sub-menu list Press right arrow button to enter into the next level of menu list, as shown in Figure 5.1-2, it lists the title of the Sub-menu, the sub-menu item and the value of the item.

  • Page 27: Status Display Menu

    Functionality of the Main Menu The following will introduce the contents and functionality of these sub-menu items in sorts. 5.1.1 STATUS DISPLAY Menu The STATUS DISPLAY menu items are used to describe the current status information of the monitor, the menu items are as shown in Figure 5.1-3: Figure 5.1-3 STATUS DISPLAY Menu There are two pages in STATUS DISPLAY menu.

  • Page 28: Input Config Menu

    Functionality of the Main Menu Items Default Value Domain Range Description Color Temp Show color temperature Color Space Show color space EOTF Show EOTF Page2 USER1/USER2/ User Preset USER1 Show the user preset name USER3/USER4 Model Show the production model. Serial Number -- Show the serial number.
  • Page 29 Functionality of the Main Menu There are two pages in INPUT CONFIG menu. The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-2: Table 5.1-2 The Description of INPUT CONFIG Menu Items Default Items Domain Range...

  • Page 30: Color Menu

    Functionality of the Main Menu Signal Type 4:2:2 YCbCr 12 BIT 4:4:4 YCbCr 10 BIT 4:4:4 YCbCr 12 BIT 4:4:4 RGB 10 BIT 4:4:4 RGB 12 BIT 4:4:4 XYZ 10 BIT 4:4:4 XYZ 12 BIT 5.1.3 COLOR Menu The COLOR menu items are used to adjust the color temperature parameters and the color balance, the menu items are as shown in Figure 5.1-5: Figure 5.1-5 COLOR Menu...
  • Page 31 Functionality of the Main Menu Default Items Domain Range Description Value Red Gain 0~512 Adjust the Red Gain Green Gain 512 0~512 Adjust the Green Gain Blue Gain 0~512 Adjust the Blue Gain Red Bias -100~100 Adjust the Red Offset Green Bias -100~100 Adjust the Green Offset...
  • Page 32 HDR Range available for EOTF(HDR) EOTF and HDR The LMW-4320 supports multiple EOTFs, consist of:  EOTF(SDR): 1.8, 2.2, 2.4, 2.6, 2.8, BT.1886  EOTF(HDR): HLG, S-Log2, S-Log3, SMPTE ST.2084 The HDR Range item provides various illuminance ranges for different EOTFs.

  • Page 33: User Config Menu

    Functionality of the Main Menu Image Comparison Mode Set COLOR Color Comparison as ON to enable the comparison mode, that is, the image on the screen is divided into two parts, and adjust the image quality on the left and right side individually. Set Color Space, EOFT and HDR Range items in the first and second channel to adjust the image quality, which is consistent to the image on the left and right side individually.
  • Page 34 Functionality of the Main Menu Figure 5.1-7 USER CONFIG Menu There are four pages in USER CONFIG menu. The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-6: Table 5.1-6 The Description of USER CONFIG Menu Items Default Items Domain Range...
  • Page 35 Functionality of the Main Menu Default Items Domain Range Description Value SOURCE signal  EXT: external signal  OFF: no signal When the audio source Left speaker, select a SPEAK OUT is EBD, the range of channel according to EBD CH1 this item is EBD CH1~ type audio...
  • Page 36 Functionality of the Main Menu Default Items Domain Range Description Value  14:9  13:9  1.85:1  2.35:1  Variable  When set the Aspect Variable 1.00～3.00, the step is Marker as Variable, set 3.00 Aspect the aspect ratio at this 0.01 item CENTER...
  • Page 37 Functionality of the Main Menu Default Items Domain Range Description Value Page 4 BACK LIGHT 15 0~30 Adjust the back light Internal Enable/Disable OFF/ON Signal internal color bar Set the display time of OSD Time ON/10s/30s/60s the OSD menu Set the display time of Status OFF/ON/AUTO the Status information...
  • Page 38 Functionality of the Main Menu Items Default Value Range Description LUT Swap OFF/ON Enable/Disable LUT Swap Blue Only OFF/ON Enable/Disable Blue Only Mono OFF/ON Enable/Disable Mono Enable/Disable the master marker Marker OFF/ON switch Enable/Disable audio meter Audio Meter OFF/ON display Time Code OFF/ON Enable/Disable time code display...
  • Page 39 Functionality of the Main Menu BLUE ONLY It is to activate BLUE ONLY mode that will remove red and green from the input signal and display the screen only under a blue signal. MONO It is to activate MONO mode that will display the screen in monochrome presentation, inactivate this mode to display the screen in color mode.
  • Page 40 Functionality of the Main Menu Figure 5.1-9 Audio Meter Audio Meter Display Mode METER SELECT controls the amount of channels displayed in an audio meter. As shown in Figure 5.1-10, the meter displays at the left bottom of the screen vertically. For example: the METER SELECT is G1+G2. There is a white rectangle frame with two white level lines in the meter, the upper is the over level line, and the lower is the reference level line.
  • Page 41 Functionality of the Main Menu Figure 5.1-11 the Positions of Meter  Particularly, if the METER SELECT is G1-4, there will be 16 channels displayed in audio meter, and the audio meter will display two meters separately on both sides of the screen. One displays 8 channels(1~8) on the left bottom of the screen, and the other displays 8 channels(9~10) on the right bottom of the screen, as shown in Figure 5.1-12:...
  • Page 42 Functionality of the Main Menu Figure 5.1-13 USER CONFIG Menu-Page3 Markers Marker Illustration Description This marker enables easier checking the center CENTER CENTER portion’s focus. MARKER MARKER This marker displays two lines to identify an area AREA with a specified ratio. AREA MARKER MARKER This marker displays a...
  • Page 43 Functionality of the Main Menu appointed transparency. For example, set ASPECT as 16:9, AREA MARKER as 4:3, and SAFETY AREA as 95%, then, the comparison of the three MARKER MATs are as shown in Figure 5.1-14: Figure 5.1-14 MARKER MAT MARKER FIT The USER CONFIG...
  • Page 44 Functionality of the Main Menu 5.1.4.4 Other Menu There are some system settings on Page4 in USER CONFIG menu. Figure 5.1-16 USER CONFIG Menu-Page4 Display Test Pattern Set USER CONFIG Internal Signal item as ON, it will display the color test pattern on the screen. Set Menu Show Time Set USER CONFIGOsd Time as 10s, 30s or 60s.

  • Page 45: Remote Menu

    Functionality of the Main Menu Reset Factory Settings Select USER CONFIGFactory Reset item, it will pop up a prompt, as shown in Figure 5.1-17: Figure 5.1-17 Prompt for Factory Reset Press right arrow( ) button to select RESET command, and click OK button to confirm the selection, the menu settings will restory to factory defaults.

  • Page 46: Key Inhibit Menu

    Functionality of the Main Menu Table 5.1-9 The Description of REMOTE Menu Items Items Default Value Domain Range Description Set whether to display IMD Display OFF/ON Characters screen. TSL3.1 IMD Protocol LOCAL TSL4.0 Select an IMD protocol STATIC Set the ID number for Monitor ID 0~255 each monitor...

  • Page 47: Menu Settings

    Functionality of the Main Menu Figure 5.1-19 KEY INHIBIT Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-10: Table 5.1-10 The Description of KEY INHIBIT Menu Items Default Items Domain Range Description Value Key Inhibit...
  • Page 48 Functionality of the Main Menu  Display the Main Menu Press OK button to enter into the main menu, it displays at the center of the screen.  Switch menu items After displaying the main menu, press (LEFT), (DOWN), (UP), (RIGHT) button to choose a menu item.
  • Page 49 Functionality of the Main Menu (UP) button to switch among its value list.  Confirm the modification to sub-menu item value Press OK button to confirm the selection of a value, and the control icon is back to the corresponding sub-menu item. ...

  • Page 51: Chapter 6 Network Control

     The network address of the computer which is connected with LMW-4320 and the network address of LMW-4320 must be in the same segment. This chapter will introduce how to set and check the parameters of LMW-4320 in Internet Explorer.

  • Page 52: Parameter Settings

    Network Control It shows the parameter names, values and operation buttons as follows: Items Default Value Domain Range Description Enable/Disable IMD DISPLAY OFF/ON display Red/Green/ Set the color of IMD IMD COLOR characters Yellow/White Set IMD characters CHARACTER  STATIC ...
  • Page 53 Network Control Figure 6.3-1 Parameter Seeting Click SET button to confirm the modification and the page is refreshed. You can check the modification on the screen menu, the results are the same as shown in Screen menu. Likewise, if you modify the value of a parameter on screen menu first, you may check the same changing result in management interface through network connection.

  • Page 55: Chapter 7 Specifications

    Specifications Chapter 7 Specifications Product detailed information Specification Values Model LMW-4320 Dimension 31.5” Dimension(WxHxD) 380.7x240x 70.5mm Pixel Pitch (WxH) 0.181×0.181mm Aspect Ratio 16:9 Display Area (WxH) 698.4×392.85mm 178°x178° Viewing Angle (HxV) Color Depth 1.073G colors Resolution 3840×2160 Contrast (Typ.) 3000:1 Luminance (cd/㎡)
  • Page 56 Specifications Specification Values Connector BNC per IEC 169-8 75Ω Impedance >18 dB 5 to 270 MHz Return Loss >15 dB 270 MHz to 1.5 GHz >10 dB up to 3 GHz Maximum Signal Level 800 mV pk-pk 10% Signal Amplitude 800 mV pk-pk 10% DC Offset 0 V ±...
  • Page 57 Specifications Figure 7-2 Rear Panel(Unit: mm) Figure 7-3 Side View(Unit: mm)
  • Page 58 Specifications Figure 7-4 Top View(Unit: mm)  Specifications are subject to change without notice. ------------------No Text Below------------------...
  • Page 59 FOR MORE INFORMATION PLEASE VISIT: http://www.osee-dig.com.cn/ OSEE TECHNOLOGY CO., LTD. No.22 Building, No.68 zone, Beiqing Road, Haidian District, Beijing, China Tel: (+86) 010-62434168, Fax: (+86) 010-62434169 E-mail: sales@osee-dig.com...
