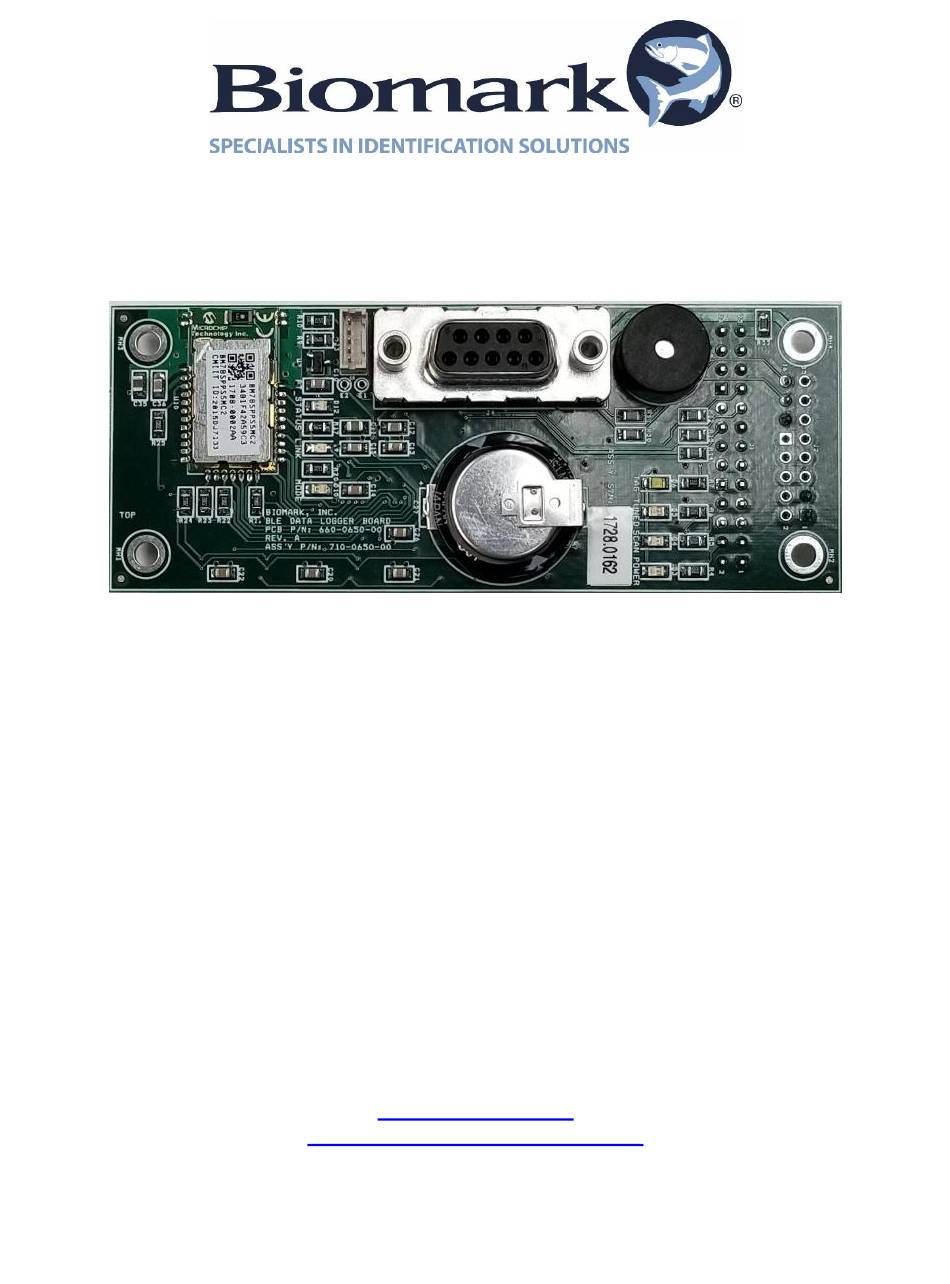

- Page 1 IS1001 BLE Data Logger User Manual Revision 5 Biomark, Inc. 705 S. 8th Street Boise, Idaho 83702, USA 1-208-275-0011 www.biomark.com customerservice@biomark.com...
- Page 2 Copyright and Trademarks Copyright © Copyright 2019 Biomark, Inc. All rights reserved. This manual contains valuable proprietary information. It should not be published, copied, or communicated to any person without prior authorization from Biomark, Inc. Trademarks IS1001, IS1001-12V, RM310, FS1001A and BioTerm are trademarks of Biomark, Inc.
-
Page 3: Table Of Contents
Using Communication Port to Monitor and Configure Attached Reader ........8 Commands ..........................9 Status Report ..........................13 Updating BLE Data Logger Firmware ..................15 Updating Attached Reader Firmware ..................16 Updating Attached RM310 Reader Firmware ................16 Updating Attached IS1001 Reader Firmware.................16 IS1001 BLE Data Logger User Manual... -
Page 4: Description
ID it receives and stores. The incorporated capacitor keeps the clock powered when the logger’s power is off. The BLE Data Logger also stores short versions of the attached IS1001 or FS1001A reader status reports (status reports are not available for an RM310 reader). - Page 5 IDs transmitted in real-time. o Can be configured to act as a communication port of the attached IS1001, RM310 or FS1001A reader. This enables monitoring and configuring of the reader from either a local or remote computer.
-
Page 6: Collecting Data From Ble Data Logger
Biomark and by most standard communications programs such as Terminal, HyperTerminal, Tera Term Pro, ProComm, PuTTY, etc. Biomark recommends using BioTerm program to securely monitor, maintain, and update a BLE Data Logger. For more details refer to BioTerm and BioStat User Manual available at: http://www.biomark.com/help/manuals___instructions/. - Page 7 Tools > Enable Capture or by clicking on the Capture On/Off button. 9. Type the MED command and then press Enter to download the entire content of the memory. Note: The downloaded data will have a * symbol at the beginning of each line. IS1001 BLE Data Logger User Manual...
-
Page 8: Establishing Bluetooth Connection And Downloading Data
The window will open where all discoverable Bluetooth devices appear. It might take up to a minute for all the Bluetooth devices to appear in the list. The BLE Data Logger will appear in the list as "MicroLogger.XXXX" where XXXX is the logger's serial number. IS1001 BLE Data Logger User Manual... - Page 9 Collecting Data from BLE Data Logger 3. Find the BLE Data Logger you want to connect to and double-click on it to establish the connection. IS1001 BLE Data Logger User Manual...
- Page 10 Tools > Enable Capture or by clicking on the Capture On/Off button. 6. Type the MED command and then press Enter to download the entire content of the memory. Note: The downloaded data will have a * symbol at the beginning of each line. IS1001 BLE Data Logger User Manual...
-
Page 11: Using Communication Port To Monitor And Configure Attached Reader
4. Use any of the reader’s commands to manage it (refer to the appropriate reader’s User Manual for the list of available commands and their description). Reader’s firmware can be updated through this communication port also (IS1001 only). 5. To close the communication port connection with the attached reader, press and hold the Ctrl key and type QUIT. -
Page 12: Commands
Note: In order for Detection Unique Delay to take effect, Detection Unique Mode must be set to Delay. Note: The command is only applicable to tag IDs received from RM310 reader and is only active when Attached Reader Type is set to RM310. IS1001 BLE Data Logger User Manual... - Page 13 Note: When data logger's Date/Time settings are updated using "LDS"/"LTS" commands, Date/Time settings of the attached IS1001 reader get updated automatically also. Switch To RM310 Programming Mode Switches the logger into RM310 programming mode. Note: To exit RM310 programming mode power to the logger must be reset.
- Page 14 Note: When data logger's Date/Time settings are updated using "LDS"/"LTS" commands, Date/Time settings of the attached IS1001 reader get updated automatically also. Reset to Factory Default Parameters Replaces all BLE Data Logger present settings with the manufacturer default values.
- Page 15 Commands Specifies if VTT IDs (3E7.xxxxxxxxxx/999.xxxxxxxxxxxx) will be stored in the logger’s memory as they are received from IS1001 or FS1001A reader. Valid values are On or Off. Default is On. Reader {1-3} Set Attached Reader Type {1} IS1001, {2} RM310, {3}...
-
Page 16: Status Report
Status Reports Memory Count Number of short status reports presently stored in memory Reports Reader Stat.Report Req.Delay Automatic reader status report request delay in minutes Diagnostics Input Voltage Measured input voltage in Volts DC IS1001 BLE Data Logger User Manual... - Page 17 60 sec Memory: Memory Status: Ready Tags Memory Usage: Tags Memory Count: Status Reports Memory Usage: Status Reports Memory Count: Reports: Reader Stat.Report Req.Delay: Disabled Diagnostics: Input Voltage: 10.0V INF: End Of Full Status Report IS1001 BLE Data Logger User Manual...
-
Page 18: Updating Ble Data Logger Firmware
6. In the confirmation dialog, click on the OK button. The firmware update process should take less than a minute to complete. 7. In the Application Update – Success dialog, click on the OK button. IS1001 BLE Data Logger User Manual... -
Page 19: Updating Attached Reader Firmware
Updating Attached Reader Firmware Important! All settings may be reset to manufacturer default values during the update process, so it is recommended to take a note of the present settings prior to updating the RM310 or IS1001 readers. Updating Attached RM310 Reader Firmware New or updated firmware may periodically become available for the RM310 reader. - Page 20 8. In the Application Update – Success dialog, click on the OK button. 9. Press and hold the Ctrl key and type QUIT to close the communication port connection with the attached reader. IS1001 BLE Data Logger User Manual...
- Page 21 Biomark, Inc. 705 S. 8th Street Boise, Idaho 83702, USA 1-208-275-0011 www.biomark.com customerservice@biomark.com IS1001 BLE Data Logger User Manual...
