8.4

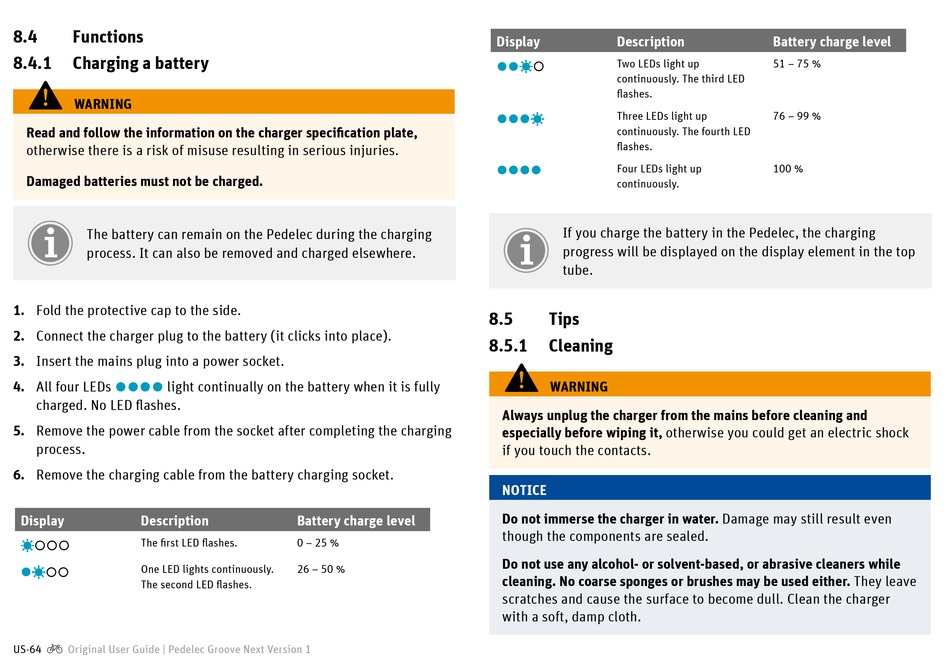

Functions

8.4.1

Charging a battery

WARNING
Read and follow the information on the charger specification plate,
otherwise there is a risk of misuse resulting in serious injuries.
Damaged batteries must not be charged.
The battery can remain on the Pedelec during the charging
process. It can also be removed and charged elsewhere.
1. Fold the protective cap to the side.
2. Connect the charger plug to the battery (it clicks into place).
3. Insert the mains plug into a power socket.
4. All four LEDs
light continually on the battery when it is fully

charged. No LED flashes.
5. Remove the power cable from the socket after completing the charging
process.
6. Remove the charging cable from the battery charging socket.
Display Description
The first LED flashes.

One LED lights continuously.


The second LED flashes.
US-64 Original User Guide | Pedelec Groove Next Version 1
Battery charge level
0 – 25 %
26 – 50 %
Display Description
Two LEDs light up


continuously. The third LED
flashes.
Three LEDs light up

continuously. The fourth LED
flashes.
Four LEDs light up

continuously.
If you charge the battery in the Pedelec, the charging
progress will be displayed on the display element in the top
tube.
8.5 Tips
8.5.1 Cleaning
WARNING
Always unplug the charger from the mains before cleaning and
especially before wiping it, otherwise you could get an electric shock
if you touch the contacts.
NOTICE
Do not immerse the charger in water. Damage may still result even
though the components are sealed.
Do not use any alcohol- or solvent-based, or abrasive cleaners while
cleaning. No coarse sponges or brushes may be used either. They leave
scratches and cause the surface to become dull. Clean the charger
with a soft, damp cloth.
Battery charge level
51 – 75 %
76 – 99 %
100 %
