Tally Dascom DT-330
Ensure the grounding connect of the printer is safe.
When the printer is at operation and maintenance, it is recommended to retain the enough
space to ensure the printer can work in reliability and ease of operation.

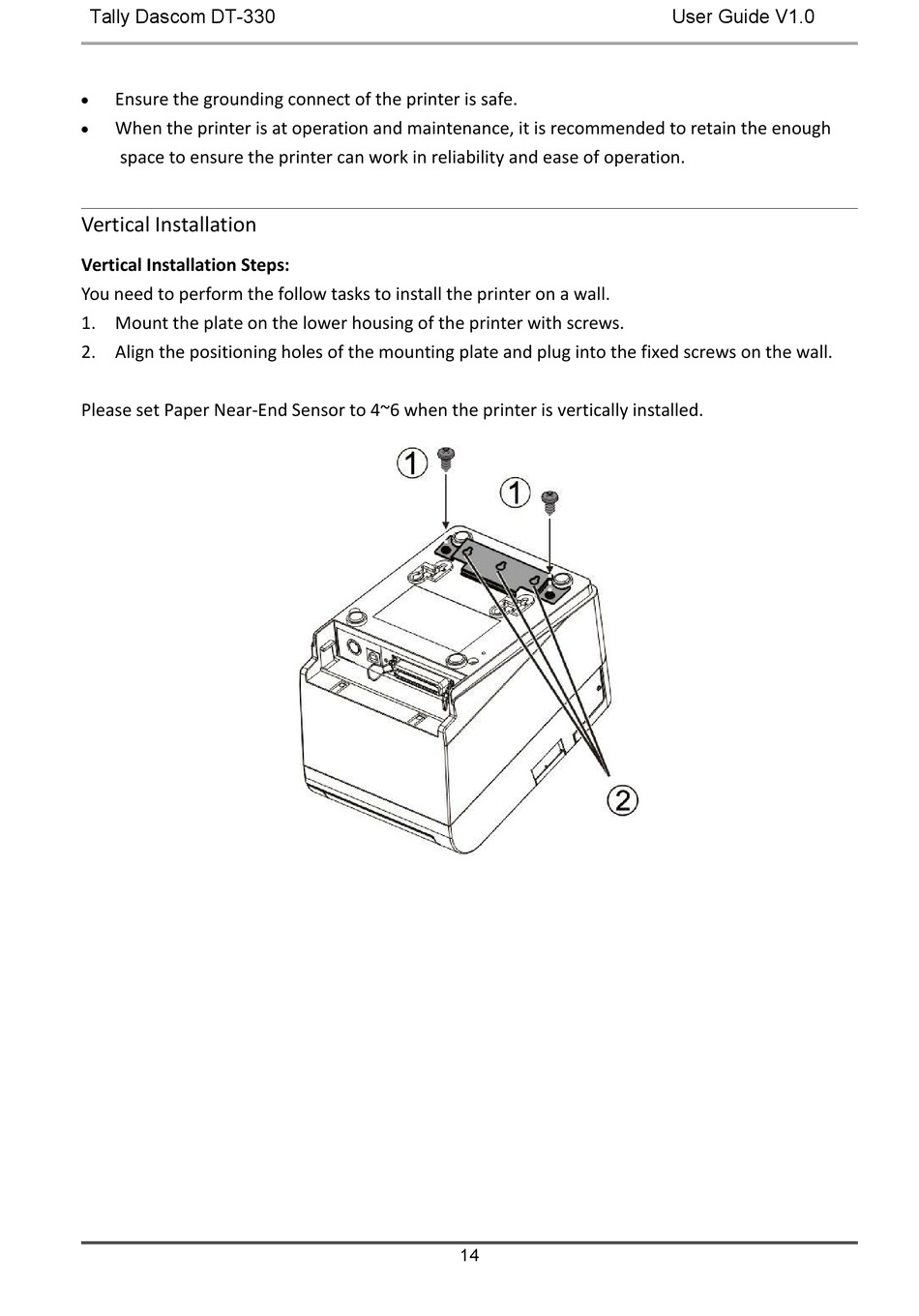

Vertical Installation
Vertical Installation Steps:
You need to perform the follow tasks to install the printer on a wall.
1. Mount the plate on the lower housing of the printer with screws.
2. Align the positioning holes of the mounting plate and plug into the fixed screws on the wall.
Please set Paper Near-End Sensor to 4~6 when the printer is vertically installed.
14
User Guide V1.0
