NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet's Color
• Abbreviation
CND : Canadian model
FR : French model

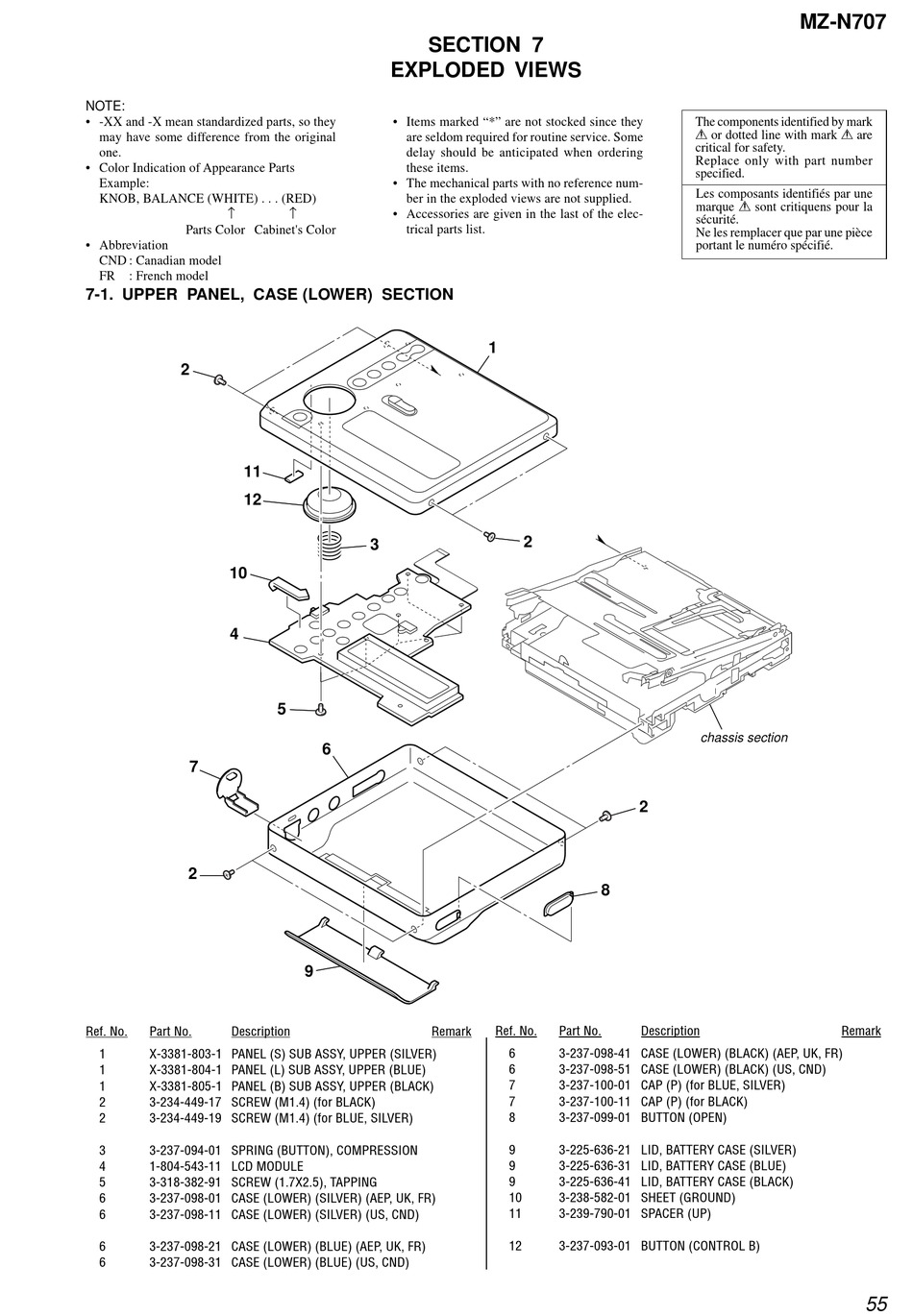

7-1. UPPER PANEL, CASE (LOWER) SECTION

2
11
12
10
4
7
2
Ref. No. Part No. Description
1 X-3381-803-1 PANEL (S) SUB ASSY, UPPER (SILVER)
1 X-3381-804-1 PANEL (L) SUB ASSY, UPPER (BLUE)
1 X-3381-805-1 PANEL (B) SUB ASSY, UPPER (BLACK)
2 3-234-449-17 SCREW (M1.4) (for BLACK)
2 3-234-449-19 SCREW (M1.4) (for BLUE, SILVER)
3 3-237-094-01 SPRING (BUTTON), COMPRESSION
4 1-804-543-11 LCD MODULE
5 3-318-382-91 SCREW (1.7X2.5), TAPPING
6 3-237-098-01 CASE (LOWER) (SILVER) (AEP, UK, FR)
6 3-237-098-11 CASE (LOWER) (SILVER) (US, CND)
6 3-237-098-21 CASE (LOWER) (BLUE) (AEP, UK, FR)
6 3-237-098-31 CASE (LOWER) (BLUE) (US, CND)
SECTION 7

EXPLODED VIEWS

• Items marked "*" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
3
5
6
9
Remark
1
2
2
8
Ref. No. Part No. Description
6 3-237-098-41 CASE (LOWER) (BLACK) (AEP, UK, FR)
6 3-237-098-51 CASE (LOWER) (BLACK) (US, CND)
7 3-237-100-01 CAP (P) (for BLUE, SILVER)
7 3-237-100-11 CAP (P) (for BLACK)
8 3-237-099-01 BUTTON (OPEN)
9 3-225-636-21 LID, BATTERY CASE (SILVER)
9 3-225-636-31 LID, BATTERY CASE (BLUE)
9 3-225-636-41 LID, BATTERY CASE (BLACK)
10 3-238-582-01 SHEET (GROUND)
11 3-239-790-01 SPACER (UP)
12 3-237-093-01 BUTTON (CONTROL B)
MZ-N707
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
chassis section
Remark
55
