Exploded Views; Chassis Section - Sony CDP-EX10 Service Manual

NOTE:
¢ Items marked " * " are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
« -XX, -X mean standardized parts, so they may
have some difference from the original one.

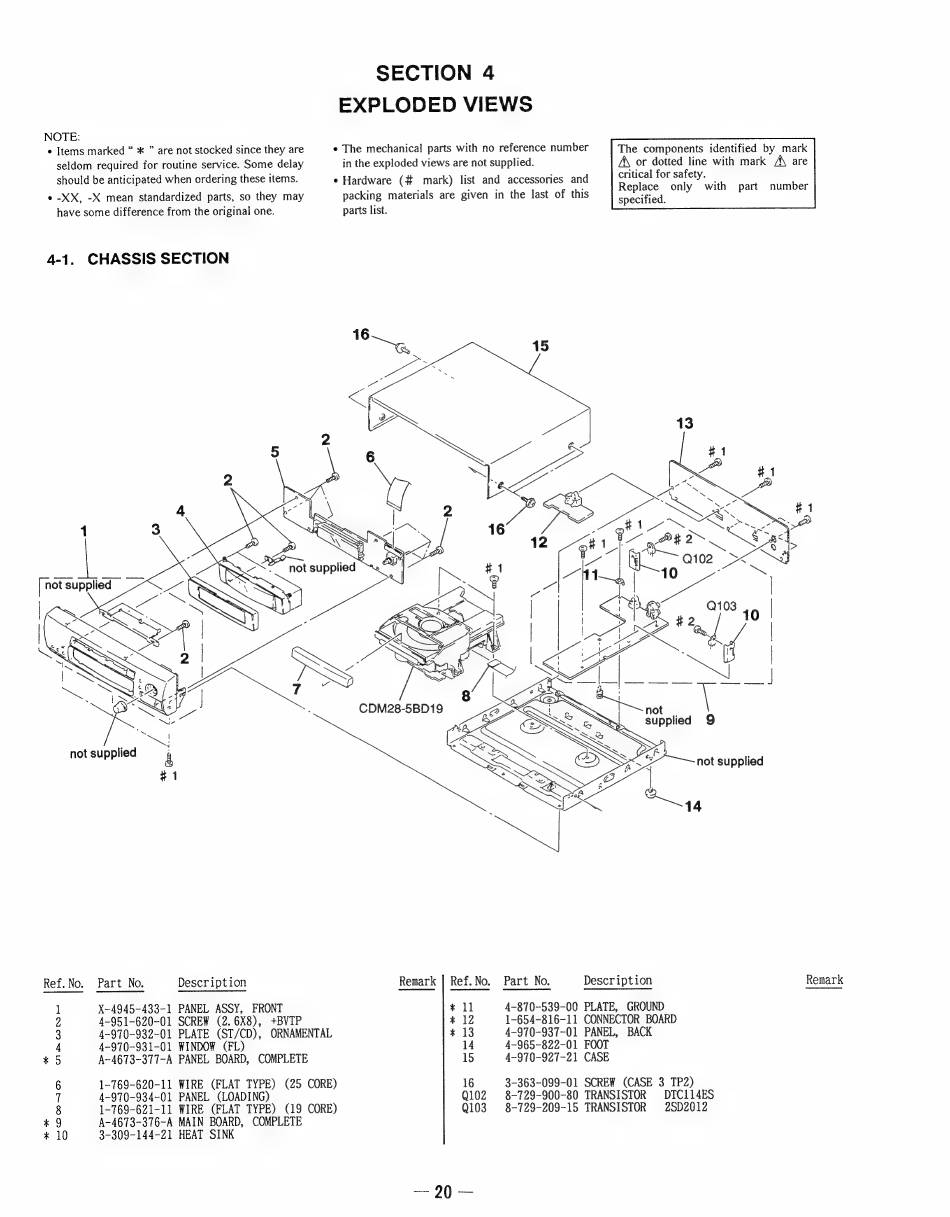

4-1. CHASSIS SECTION
Ref.No. Part No. Description
*
ee oOon~ me Giom GO DOr ee low)
X-4945-433-1 PANEL ASSY, FRONT
4-951-620-01 SCREW (2. 6X8), +BVIP
4-970-932-01 PLATE (ST/CD), ORNAMENTAL
4-970-931-01 WINDOW (FL)
A-4673-377-A PANEL BOARD, COMPLETE
1-769-620-11 WIRE (FLAT TYPE) (25 CORE)
4-970-934-01 PANEL (LOADING)
1-769-621-11 WIRE (FLAT TYPE) (19 CORE)
A-4673-376-A MAIN BOARD, COMPLETE
3-309-144-21 HEAT SINK
SECTION 4
EXPLODED VIEWS
* The mechanical parts with no reference number
in the exploded views are not supplied.
e Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Remark | Ref.No. Part No. Description Remark
* 1l 4-870-539-00 PLATE, GROUND
* 12 1-654-816-11 CONNECTOR BOARD
* 13 4-970-937-01 PANEL, BACK
14 4-965-822-01 FOOT
15 4~-970-927-21 CASE
16 3-363-099-01 SCREW (CASE 3 TP2)
Q102 8-729-900-80 TRANSISTOR DTC114ES
Q103 8-729-209-15 TRANSISTOR 2SD2012
