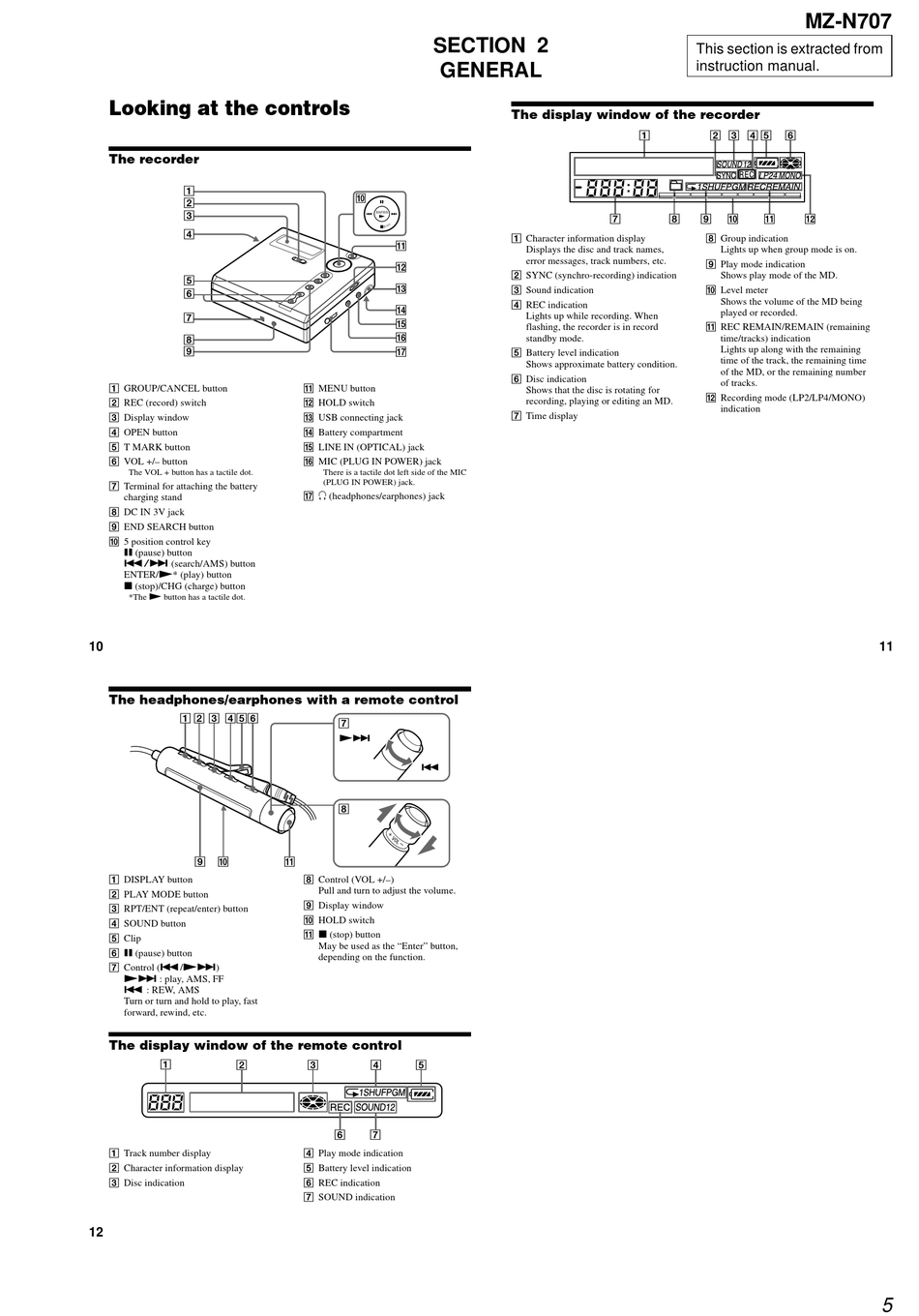

Looking at the controls
The recorder
1
2
3
4
5
6
7
8
9
A
GROUP/CANCEL button
B
REC (record) switch
C
Display window
D
OPEN button
E
T MARK button
F
VOL +/– button
The VOL + button has a tactile dot.
G
Terminal for attaching the battery
charging stand
H
DC IN 3V jack
I
END SEARCH button
J
5 position control key
X (pause) button
./> (search/AMS) button
ENTER/N* (play) button
x (stop)/CHG (charge) button
*The N button has a tactile dot.
10
The headphones/earphones with a remote control
A B C DE F
I J
A
DISPLAY button
B
PLAY MODE button
C
RPT/ENT (repeat/enter) button
D
SOUND button
E
Clip
F X (pause) button
G
Control (./N>)
N> : play, AMS, FF
. : REW, AMS
Turn or turn and hold to play, fast
forward, rewind, etc.
The display window of the remote control
A B
A
Track number display
B
Character information display
C
Disc indication
12
SECTION 2

GENERAL

J
ENTER
qa
qs
qd
qf
qg
qh
qj
K
MENU button
L
HOLD switch
M
USB connecting jack
N
Battery compartment
O
LINE IN (OPTICAL) jack
P
MIC (PLUG IN POWER) jack
There is a tactile dot left side of the MIC
(PLUG IN POWER) jack.
Q
i (headphones/earphones) jack
G
N>
.
H
K
H
Control (VOL +/–)
Pull and turn to adjust the volume.
I
Display window
J
HOLD switch
K
x (stop) button
May be used as the "Enter" button,
depending on the function.
C D E
F G
D
Play mode indication
E
Battery level indication
F
REC indication
G
SOUND indication
The display window of the recorder
1
7 8
A
Character information display
Displays the disc and track names,
error messages, track numbers, etc.
B
SYNC (synchro-recording) indication
C
Sound indication
D
REC indication
Lights up while recording. When
flashing, the recorder is in record
standby mode.
E
Battery level indication
Shows approximate battery condition.
F
Disc indication
Shows that the disc is rotating for
recording, playing or editing an MD.
G
Time display
MZ-N707
This section is extracted from
instruction manual.
2 3 4 5 6
9 q; qa qs
H
Group indication
Lights up when group mode is on.
I
Play mode indication
Shows play mode of the MD.
J
Level meter
Shows the volume of the MD being
played or recorded.
K
REC REMAIN/REMAIN (remaining
time/tracks) indication
Lights up along with the remaining
time of the track, the remaining time
of the MD, or the remaining number
of tracks.
L
Recording mode (LP2/LP4/MONO)
indication
11
