CDP-2700 |
NOTE:
The mechanical parts with no reference
number in the exploded views are not
supplied.
Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

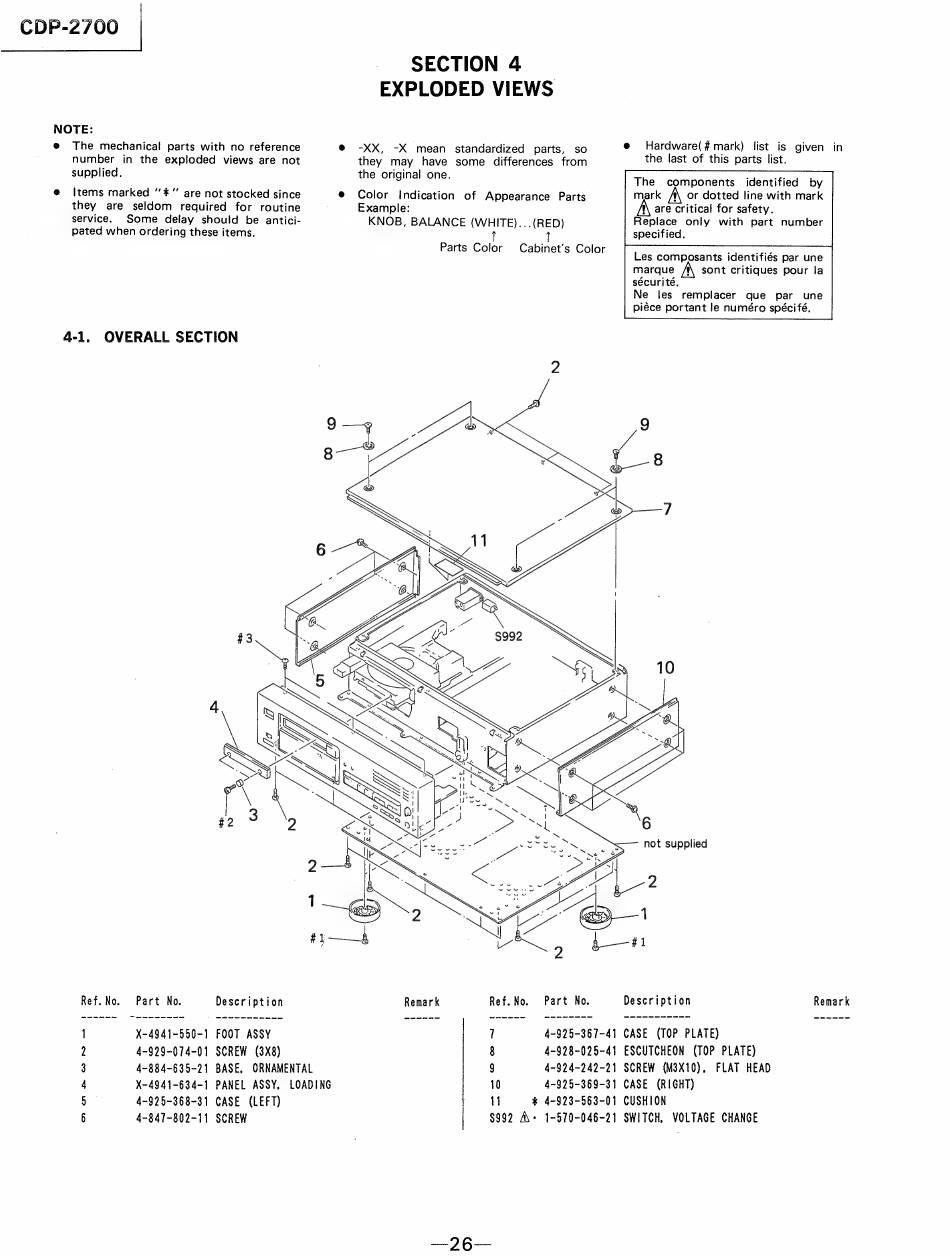

4-1. OVERALL SECTION
Ref. No. Part No. Description
1 X-4941-550-1 FOOT ASSY
2 4-929-074-01 SCREW (3X8)
3 4-884-635-21 BASE, ORNAMENTAL
4 X-4941-634-1 PANEL ASSY, LOADING
5 4~925-368-31 CASE (LEFT)
6 4-847-802-11 SCREW
SECTION 4
EXPLODED VIEWS
-XX, -X mean standardized parts, so
they may have some differences from
the original one.
Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)...(RED)
t T
Parts Color Cabinet's Color
Remark Ref.No. Part No.
1 4-925-367-41
8 4-928-025-4]
9 4-924-242-21
10 4-925-369-31
1 * 4-923-563-01
$992 A+ 1-570-046-21
e@ Hardware(#mark) list is given in
the last of this parts list.
specified.
sécurité.
CASE (TOP PLATE)
ESCUTCHEON (TOP PLATE)
SCREW (M3X10), FLAT HEAD
CASE (RIGHT)
CUSHION
SWITCH, VOLTAGE CHANGE
The components identified by
mark or dotted line with mark
are critical for safety.
Replace only with part number
Les composants identifiés par une
marque sont critiques pour fa
Ne les remplacer que par une
piéce portant Je numéro spécifé.
Remark
