Summary of Contents for Gage Bilt GB2581-750

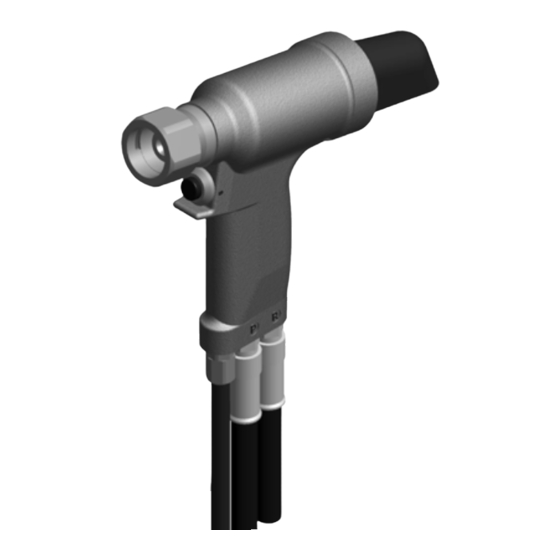

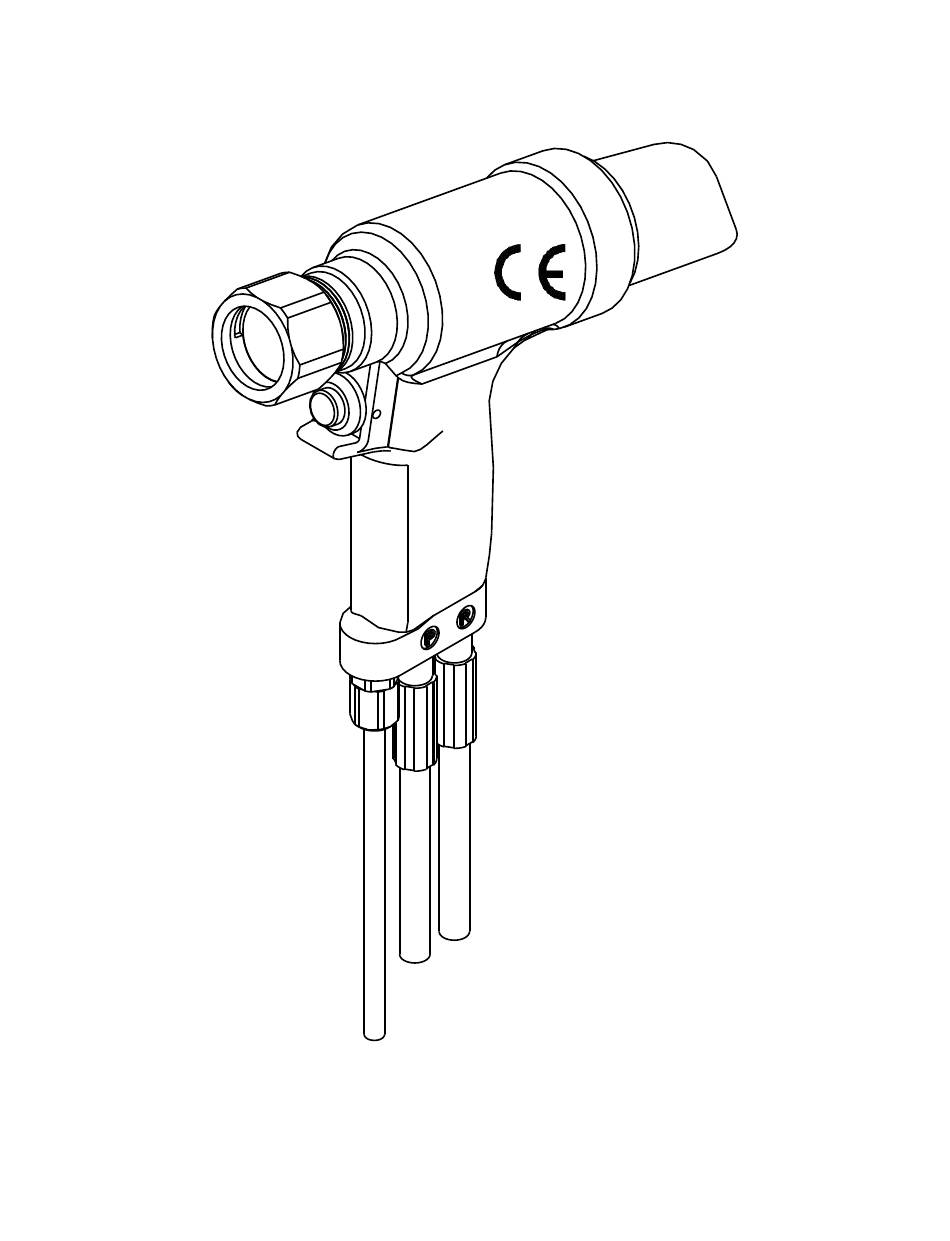

- Page 1 GB2581-750 INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR DISTRIBUTOR NEAR YOU. GAGE BILT Inc. GAGE BILT 44766 Centre Court (586) 226-1500 Clinton Twp. MI 48038 (586) 226-1505 Fax MADE IN U.S.A. e-mail: solutions@gagebilt.com / www.gagebilt.com...
-
Page 2: Specifications
TABLE OF CONTENTS Description Page Warnings ............................... 3 Principle of Operation and How to use the GB2581-750 ..............4 Description and Maintenance ......................5 Parts Lists ............................. 6 Trouble Shooting and Overhaul ......................7 Nose Assembly Selection Chart ......................8 EU Conformity and Warranty....................... -
Page 3: Safety Warnings
Any repair should be done by qualified personnel trained on Gage Bilt procedures. WARNING Risk of crushing exists if nose assembly is not attached. -
Page 4: Principle Of Operation
When the button is released the directional valve reverses fluid flow to the back of the piston and pushes the nose assembly off of the swaged fastener. The pintail ejector hydraulically pushes the spent pintail out of the nose assembly. HOW TO USE THE GB2581-750 WARNING: OPERATOR MUST READ AND UNDERSTAND ALL WARNINGS AND CAUTIONS. -
Page 5: Maintenance Personnel
ANY OTHER APPLICATIONS. GAGE BILT WILL BE PLEASED TO ADVISE FOR YOUR SPECIFIC APPLICATION. The GB2581-750 is a hydraulic installation tool. It weighs 6 lbs. 10 oz. (3.0 kg). It has a .750" (19mm) rivet setting stroke and a rated pull load of 10,700 lbs (47.59kN) @ 7,400 psi. (510.2 bar). - Page 6 10/13...
-
Page 7: Troubleshooting
® with an o'ring. Use of Lubriplate (Gage Bilt part no. 402723) or other lubricant is recommended during reassembly to prevent tearing or distorting of o'rings. Disconnect hydraulic hoses (206119) and electrical cord (258020) from powerunit. Remove couplers (585038 & 585047) from hoses (206119) and drain. - Page 8 A SP ®, B OM ®, C6L®, A ND LGP ® A RE REGISTERED TRA DEM A RKS OF A LCOA INC. A VDELOK® IS A REGISTERED TRA DEM A RK OF A VDEL UK LIM ITED. GAGE BILT CERTIFIES THE GB2581-750 WILL INSTALL THE ABOVE FASTENERS *ALL OFFSET 204 SERIES NOSES REQUIRE 353204 ADAPTER WITH 258152 STROKE LIMITER AND 258157 RELIEF VALVE.
-
Page 9: Declaration Of Conformity
WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING STANDARDS AND DIRECTIVES. EN12100-1 & EN12100-2 EN13849 EN792-1:2000+A1 COUNCIL DIRECTIVE: MACHINE DIRECTIVE 2006/42/EC EQUIPMENT DESCRIPTION: GB2581-750 FASTENER INSTALLATION TOOL MANUFACTURER: GAGE BILT Inc. SIGNATURE: NAME: BRIAN LEIGH PRODUCT MANAGER CLINTON TWP., MI U.S.A.
