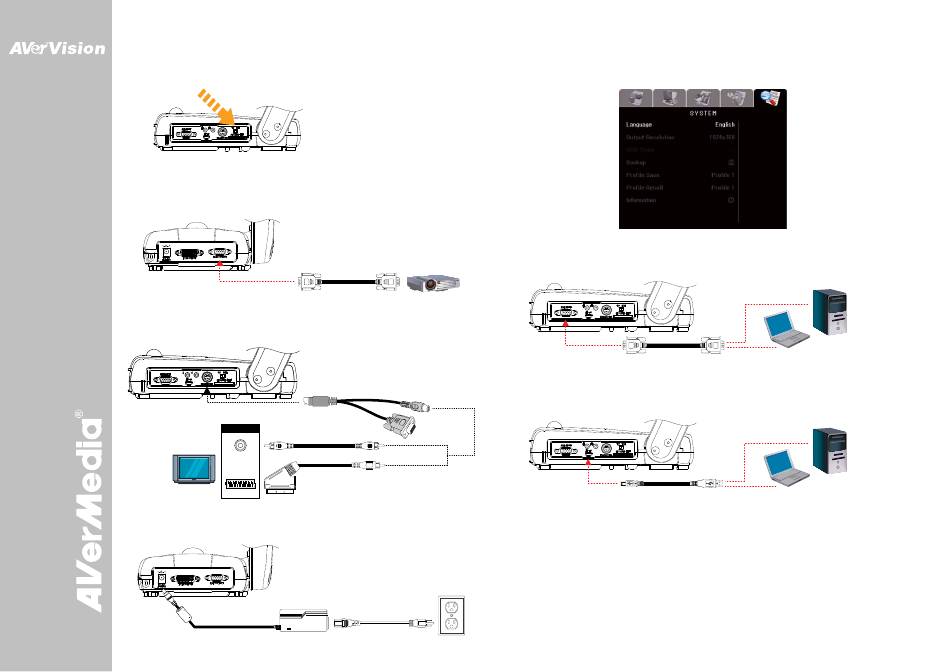

Avermedia AVerVision M50 Quick Manual

1.
Set the TV-RGB Switch Setting
M50
A.
RGB outputs the signal to RGB and DVI-I OUPUT port of M50.
B.
TV outputs the signal from RS232/CVBS port thru RCA connection.
Quick Guide
2.
Connect the Video Output Display
A. RGB Connection
(1) RGB Cable (2) LCD/DLP Projector
B. TV Connection
(1) RS-232/CVBS Cable (2) RCA Cable (3) RCA to SCART Cable
(Not supplied) (4) Television
3.
Connect the Power
(1) Power Adapter (2) Power Cord (3) Wall Outlet
(1)
(1)
I N P U T
(2)
VIDEO
(3)
(4)
SCA RT
(1)
4.
Set the OSD Language
Press MENU, select SYSTEM > LANGUAGE, then press ENTER and
choose the language setting you prefer.
5.
Connect a Computer to Show Computer Presentation
(2)
(1) RGB Cable (2) Laptop (3) Desktop
6.
Connect via USB to Transfer the Captured Image to a PC or
Use M50 as a USB Camera with the bundled software.
(1) USB Cable (2) Laptop (3) Desktop
(3)
(2)
(1)
(2)
(3)
(1)
(2)
(3)
