This section explains the steps involved in automatic splicing process and
describes how various program parameters are related to this process. The normal
splicing process can be divided into two sections: pre-fusion and fusion.
During pre-fusion, the splicer performs automatic alignment and focusing, where
the fibers are subjected to a low pre-fusion current for cleaning purposes; a pre-
fusion image is also taken. At this point, the user is informed of any problems
recognized in the pre-fusion image, such as a poorly prepared fiber. The splicer will
then issue a warning before the fibers are fused together.
During fusion, the fibers are joined together and subjected to five different currents
as illustrated below. An important parameter, which changes during splicing, is
the distance between the fibers. During Pre-fusion, the fibers are apart. With the
current phase changing, fibers are spliced gradually.
Arc power and arc time are considered as the two most important parameters (as
shown in the figure below). The name and purpose of those parameters as well as
the effect and importance of the parameters will be described in the next section
"Splice program parameters under general splicing process". The below figure
shows the arc discharge conditions (relationship between "Arc power" and "Motor
motion"). These conditions can be modified by changing the splicing parameters
listed below. However, depending on the splice mode, certain parameters cannot
be changed.
A: Pre-fuse power
E: Pre-fuse Time
H: Arc2 ON time
K: Taper Splicing Wait Time
M: Taper Splicing speed
General Splicing Steps
B: Arc1 power C: Arc2 Power
F: Forward Time related to Overlap
I: Arc2 OFF time J: Arc2 time
N:Rearc Time

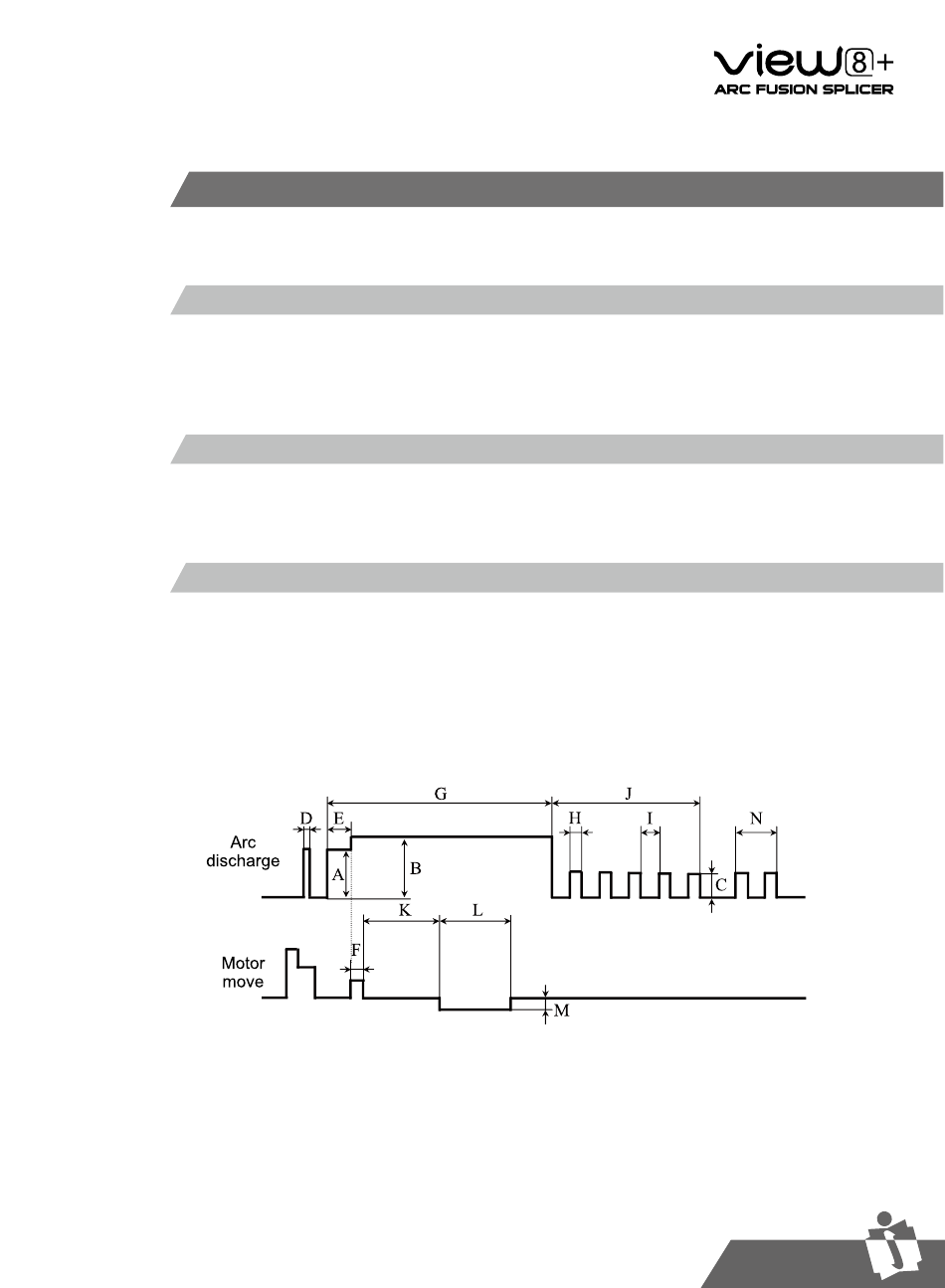

Diagram of ARC discharge condition

Splicing Process

D: Cleaning Arc
G: Arc1 time
L: Taper Splicing Time
User's Manual
INNO Instrument, Inc.

Pre-Fusion

Fusion
