Related Manuals for INNO Instrument VIEW 8 Pro
Summary of Contents for INNO Instrument VIEW 8 Pro

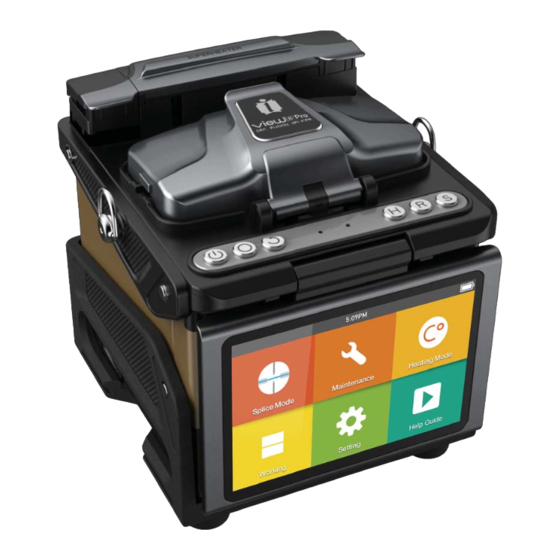

- Page 1 User Manual New friendly GUI design SOC Support Screen Zoom Remote Control VIEW 8 Pro Please read this manual before operating your fusion splicer, and keep it for future reference. Ver V1.02...
- Page 2 Content...
- Page 5 0.2mm to 3.0mm/Indoor Cable Cladding diameter: 100 to 125 m 9 sec (45mm, slim 60mm), 11 sec(60mm). altitude: 0 to 5000m, relative humidity: 0 to 95%, temperature: -10 to 50 , the maximum wind velocity: 15m / s;...
- Page 6 320x magnification for single X or Y view, or 520x magnification for double click X or Y view...
- Page 9 Heat oven ON/OFF button button Control buttons Control Display Battery USB TYPE-C Power Supply Connector...
- Page 10 Shut off fusion splicer. Press on release button at lateral,drawing the battery out of the fusion splicer. Place the battery into power unit slot until you push it into the right place. Draw the battery...
- Page 14 Splicing position Open the heat oven lid move into heat oven clamp [HEAT] Button Heating LED indicator...
- Page 15 Displaying the active splice program...
- Page 21 Remove old electrode Loosen the screw Install new electrode...
- Page 36 The End...
