INNO Instrument IFS-10 Quick Reference Manual

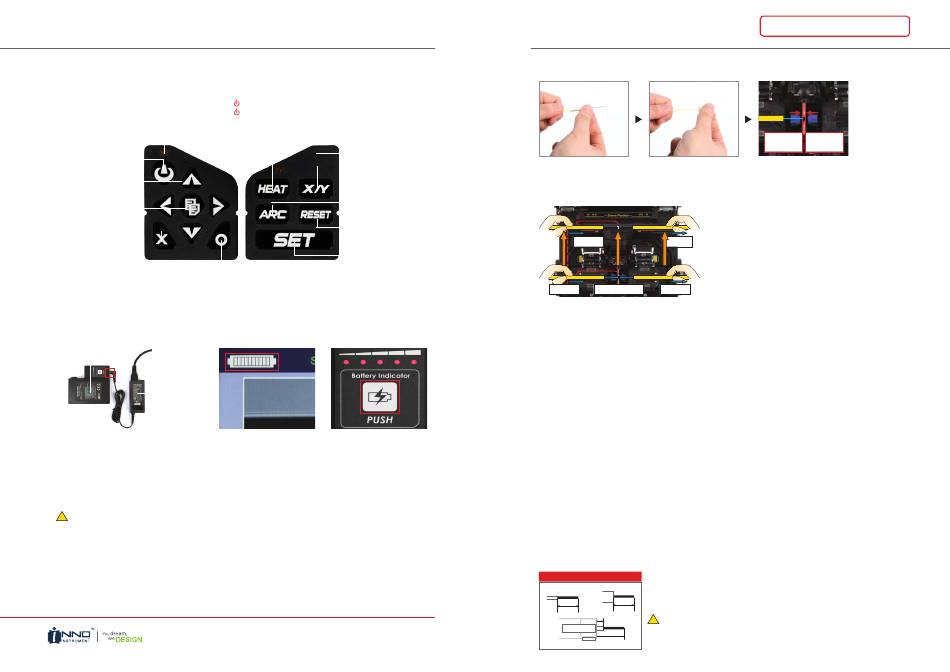

How to use keypad
LED
Turn ON Press
Turn OFF Press
ON/OFF Key
Power ON/OFF
ARROW Key
Move cursor
change value
MENU Key
Open [Main Menu]
CANCEL Key
Return to
previous screen
OK Key
Enter
Battery pack
Battery Pack
AC Charger
How to recharge battery How to check remaining capacity
on "READY" screen
Connect battery pack (LBT-20) with AC charger, power cable.
•
Do not stack battery pack on top of charger while recharging.
•
Recharging temperature: 0~40°C (32~104°F).
•
!
CAUTION
Confirm power saving function is working when using battery pack.
Copyright ⓒ 2013 INNO Instrument Inc. All rights reserved.
65-3 Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do 462-807, Republic of Korea
Tel: +82 31 742 8755 Fax: +82 31 742 8799
key until green led turns on
key until green led blank
HEAT Key
Heater ON/OFF
when auto heating is off
XY Key
Switch X and Y images
ARC Key
Generate ARC
RESET Key
Stop and back to ready
SET Key
Execute splice when
auto start is off
Battery checking button
www.innoinstrument.com
IFS-10 ARC Fusion Splicer
Splicing operation
Insert fiber into the protection Cleaning fiber
sleeve
Make sure the stripped fiber is free of coating debris or dust.
•
Use only 99% or better purity alcohol.
•
Clean by clean wipes (dustproof)
•
Hold Pull
Hold Spliced point Pull
Hold the fiber at edge of splicer body
•
Gently pull the fiber
•
Turning splicer on
•
Select splice mode
•
When splicing only standard SM fibers (ITU-T G.652),"SM AUTO" mode is recommended.
•
When splicing different types of fibers, "AUTO" mode is recommended, but splice speed is slower.
•
Splicing speed of "SM FAST" mode is faster, but periodically Arc calibration is required.
•
Check splicing and heater modes
•
Cleaning fibers
•
Place the sleeve on the fiber
•
Stripping fiber
•
Cleaning fiber
•
Cleaving fiber
•
Install fiber onto splicer
•
Start splicing by closing wind proof cover
•
Visual inspection on LCD during splice
•
Remove the spliced fiber
•
Centering protection sleeve on spliced fiber
•
Put the sleeved fiber into heater
•
Start heating by closing heater cover
•
Completed
•
Description
250um
900um
8~16mm
8~16mm
1/3"~2/3"
1/3"~2/3"
Less than 3mm
!
CAUTION
1/8"
Fiber Holder When ARC discharge is not stable. Electrodes should be stabilized and calibrated to
13mm
reform the arc discharge. Install prepared SM fibers onto splicer to operate stabilize
1/2"
electrodes and arc calibration. After installation SM fibers, splice fibers again.
Quick Reference Guide
Ver.1.0
V-groove Electrode
edge center
Keep the cleaved fiber ends face in clean condition.
•
Place the fiber end between V-groove edge and
•
Electrode center.
