- Page 1 INFINEA TAB M iPad® mini 1D/2D SCANNER...
-
Page 2: Contact Information
CONTACT INFORMATION Mobility Sales/Technical Center: Infinite Peripherals, Inc. 1641 McGaw Avenue Irvine, CA 92614 Toll-Free: (866) 278-7860 Office: (949) 222-0300 Fax: (949) 222-0375 Headquarters/Main Warehouse: Infinite Peripherals, Inc. 2312 Touhy Elk Grove Village, IL 60004 Toll-Free: (800) 278-7860 Office: (847) 818-1260... -
Page 3: Compatability
LEGAL NOTICE “Made for iPad,” means that an electronic accessory has been designed to connect specifically to iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. -
Page 4: Table Of Contents
CONTENTS Compatability Overview Technical Data –Infinea TAB M Box Contents Getting Started About Your Infinea TAB M Assembling your Infinea TAB M Charging your Infinea TAB M Status and Operational Modes ... -
Page 5: Overview
OVERVIEW The Infinea TAB M allows mobile employees to convert their iPad mini into a powerful solution for retail, warehousing, supply chain, ticketing and hospitality industries. The Infinea TAB M includes 3-track magnetic stripe reader (encrypted or unencrypted), optional 2D barcode scanner, optional Bluetooth, and optional RFID. -
Page 6: Technical Data -Infinea Tab M
TECHNICAL DATA –INFINEA TAB M Electrical Power supply Internal voltage 3.3V & 5V Compatibility iPad mini USB Interface – between Infinea TAB mini and iPad mini Communications USB Synchronization between Apple iPad mini ® & PC Power Consumption Deep sleep ~20uA... -
Page 7: Box Contents
Software: Drivers & SDK Because of the continually evolving SDK, the latest SDK are not distributed on CD. For the latest Infinea TAB M SDK’s please visit our developer portal: http://w w w .ipcprint.com /developer/ 5 USER MANUAL... -
Page 8: Getting Started
GETTING STARTED The Infinea TAB M allows you to scan barcode and capture Magnetic Strip information onto your iPad Mini. Before using your Infinea TAB M the battery should be properly charged. The following Quick Start guide will help to get your Infinea TAB M ready for use. -
Page 9: About Your Infinea Tab M

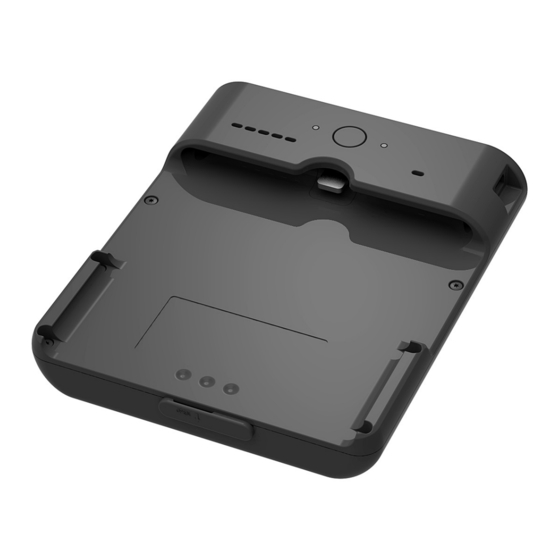

ABOUT YOUR INFINEA TAB M Scan Button Charging Connectors Barcode Scanner Status LED/Battery Charging LED 8-pin Lightning connector USB Sync & Charging Port External RS Port 8. RFID Receiver/Transmitter 9. Magnetic Stripe Reader 10. -
Page 10: Assembling Your Infinea Tab M
Align the home button on iPad mini and the half circle on the Infinea TAB M as shown below. 2. Gently slide the Infinea TAB M into position as shown below. 8 USER MANUAL ... -
Page 11: Charging Your Infinea Tab M
Warning: When charging the iPad mini and Infinea TAB M at the same time, only • use the approved/recommended 5 volt @ 2.1 amp dc adaptors. Failure to do so may cause charging problems and potential damage to the Infinea TAB m and /or iPad mini. -
Page 12: Status And Operational Modes
STATUS AND OPERATIONAL MODES The Infinea TAB M uses LEDs to indicate various conditions of operation. This may be charging, active or online, battery low conditions. The following table explains these conditions and LED indication. STATUS Fast flashing, indicates... -
Page 13: Features-Barcode Scanning
Using the 2D barcode scanner: The Infinea TAB M 2D model uses a scan engine that supports two- dimensional (2D) and one dimensional (1D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. -
Page 14: Features-Magnetic Card Reader
FEATURES-MAGNETIC CARD READER Reading M agnetic Strips: The Infinea TAB M has a built-in magnetic card reader. The card reader incorporates a (3) track magnetic read head requiring a single swipe to read field data from all three tracks. -
Page 15: Features-Rfid Card Reader
FEATURES-RFID CARD READER Reading RFID Cards: Infinea TAB M with a built-in RFID tag/card reader. The RFID reader incorporates several RFID format depending on the model of your Infinea TAB The RFID receiver/transmitter is located on the back of the device, below the LEDs. -
Page 16: Syncing
The iPad mini can sync with iTunes through the Infinea TAB M while connected. To sync iPad mini with iTunes through the Infinea TAB M follow the steps below; Connect the Infinea TAB M to a computer using a Mini USB cable as shown in the figure below. -
Page 17: Replacing Battery
REPLACING BATTERY The Infinea TAB M is designed with an internal Lithium Ion rechargeable battery. For problems related to battery not charging or unit not turning on, please consult your Infinite Peripheral representative or certified service center. W arning: Disassembling of the Infinea TAB M may impact your Infinea TAB M •... -
Page 18: Developing Applications
DEVELOPING APPLICATIONS Integrating the Infinea TAB M into your solution requires the use of the Infinea TAB M SDK. The SDK incorporates an API specifically for rapid development of iOS applications designed to use the barcode scanning, card reading, Bluetooth, and RFID capability of the Infinea TAB M. -
Page 19: Sred Encrypted Msr Information
• Do not attempt to remove battery from Infinea TAB M unit. • Always place the Infinea TAB M on charging station when not in use for • extended periods. The battery capacity and approximate time remaining before full discharge are shown in the table below. -
Page 20: Troubleshooting -Msr Card Reading
If you are having problems with reading card magnetic strip refer to the table below for possible causes. Item Problem Possible Cause * Infinea TAB M not turned On * Swipe method incorrect * Faulty read head No card data returned during * Unreadable magnetic strip... -
Page 21: Troubleshooting -Barcode Scanning
Problem Possible Cause * Infinea TAB M battery is too low. Scanner does not turn On. * Infinea TAB M not turned on by software. * Faulty scan engine. * Unreadable barcode. No barcode data returned * Infinea TAB M battery is too low. -
Page 22: Troubleshooting -Rfid Card
Problem Possible Cause * Infinea TAB M battery is too low. RFID does not turn On. * Infinea TAB M not turned on by software. * Faulty RFID reader. * Unreadable RFID tag/card. No RFID data returned during * Infinea TAB M battery is too low. -
Page 23: Federal Communications Commission
FEDERAL COMMUNICATIONS COMMISSION Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
