USER MANUAL- LINEA PRO 7

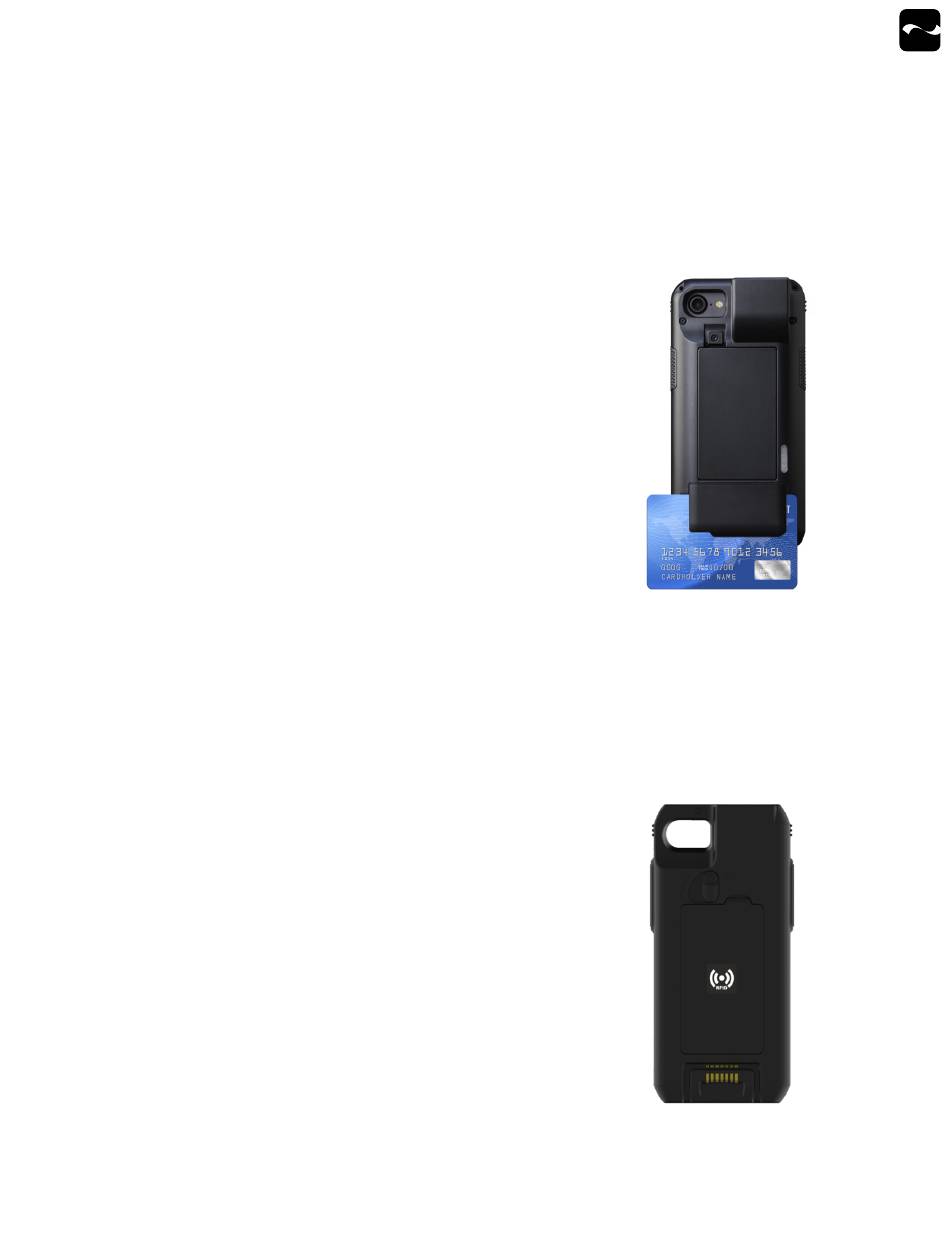

Magnetic Stripe Reader (MSR)

The built-in magnetic stripe reader (MSR) has a three-track bi-directional encryption-capable magnetic read head. A single swipe reads information from all
three tracks.
MSR functions as an unencrypted MSR until an encryption key is injected into the read head by a designated Infinite Peripherals key injection facility.
Contact your Infinite Peripherals account representative for information.
1. To activate the MSR functionality, press either Scan button.
2. With the magnetic strip face up, swip the card through one end
of the card slot to the other end.
Note:
Keep the edges of the card flat on the inner edge of the reader.
This ensures the magnetic stripe passes over the read head
evenly.
Contactless Card Reader (RFID)
The optional RFID tag/card reader incorporates several RFID formats depending on the model of your Linea Pro 7.
1. To activate the unit, press the Scan button.
2. Place the RFID tag/card over the receiver/transmitter as
indicated by the RFID label. The data is sent from the unit to the
iOS device.
Note:
Keep the face of the card/tag flat, with the receiver/transmitter
as close as possible. Depending on the type of tag/card, it may
be necessary to make direct contact with the surface of the
RFID receiver for proper reading and writing.
