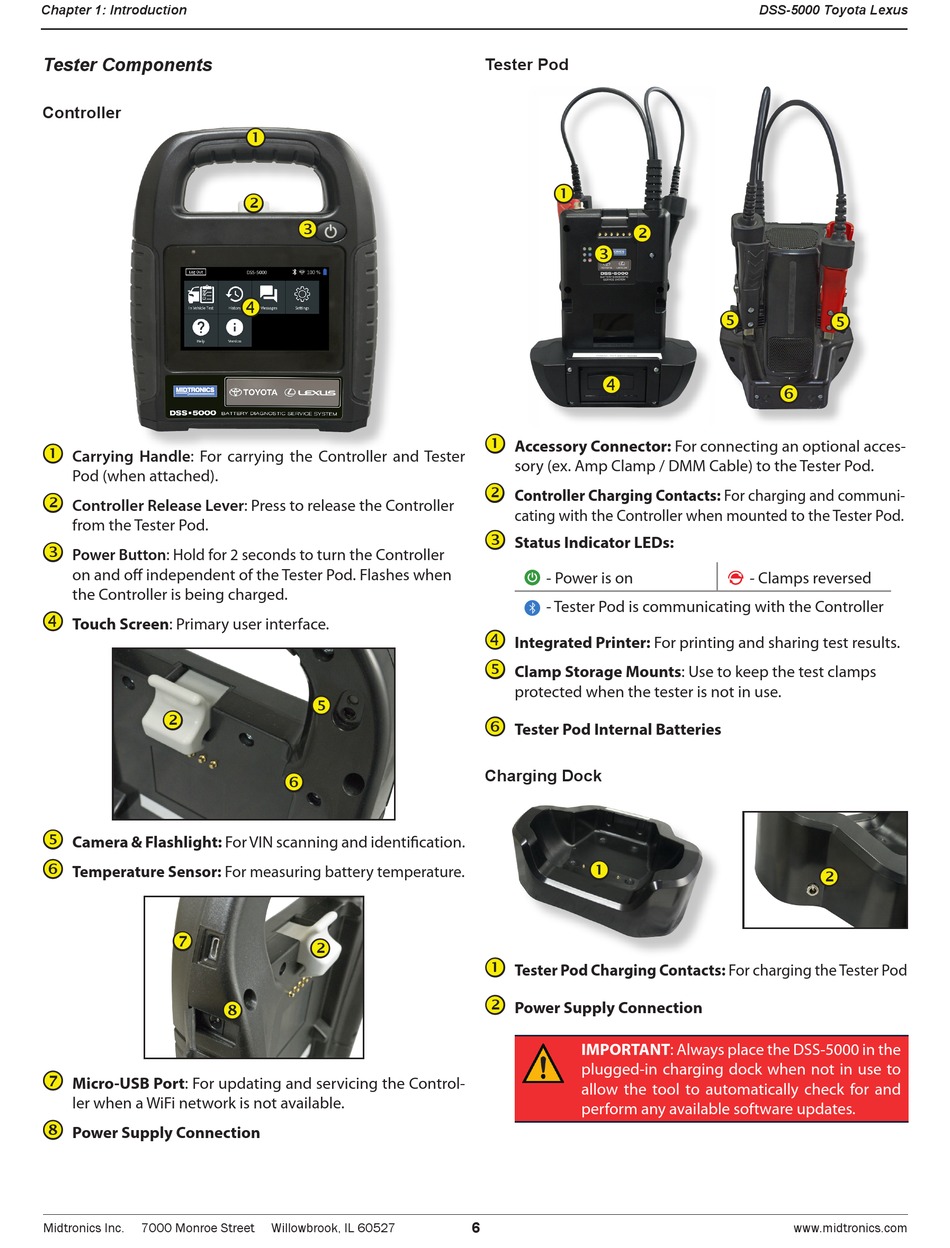

Tester Components

Controller


Carrying Handle: For carrying the Controller and Tester
Pod (when attached).

Controller Release Lever: Press to release the Controller
from the Tester Pod.

Power Button: Hold for 2 seconds to turn the Controller
on and off independent of the Tester Pod. Flashes when
the Controller is being charged.

Touch Screen: Primary user interface.


Camera & Flashlight: For VIN scanning and identification.

Temperature Sensor: For measuring battery temperature.


Micro-USB Port: For updating and servicing the Control-
ler when a WiFi network is not available.

Power Supply Connection
Midtronics Inc. 7000 Monroe Street








Willowbrook, IL 60527

Tester Pod






Accessory Connector: For connecting an optional acces-
sory (ex. Amp Clamp / DMM Cable) to the Tester Pod.

Controller Charging Contacts: For charging and communi-
cating with the Controller when mounted to the Tester Pod.

Status Indicator LEDs:
- Power is on
- Tester Pod is communicating with the Controller

Integrated Printer: For printing and sharing test results.

Clamp Storage Mounts: Use to keep the test clamps
protected when the tester is not in use.

Tester Pod Internal Batteries

Charging Dock



Tester Pod Charging Contacts: For charging the Tester Pod

Power Supply Connection
IMPORTANT: Always place the DSS-5000 in the
plugged-in charging dock when not in use to
allow the tool to automatically check for and
perform any available software updates.
