IBO BETA Instruction Manual

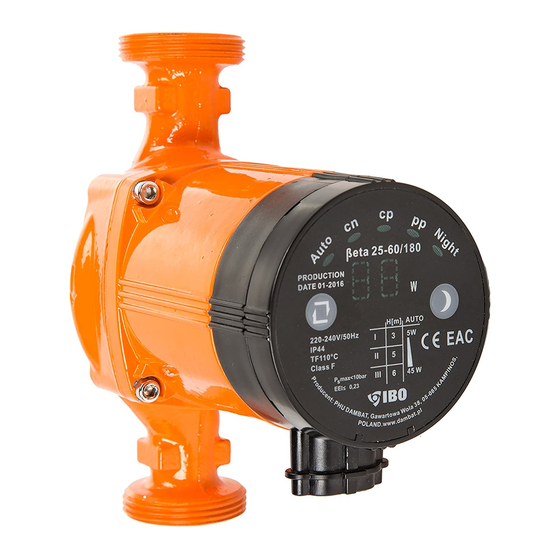

Electronic circulation pump
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Instruction manual for electronic circulation pump:
reading
manual is obligatory
device damage hazard
NOTE: the manual is a primary part of the purchase and sale contract.
The user's failure to observe
the instructions included in the manual is a breach of the contract and excludes
any complaints arising from potential device failure caused by the use that is
inconsistent with instructions of its use.
NOTE: failure to observe the instructions included in the
manual can result in hazard for persons, properties in which
they are installed, environment and the pump itself.
CAUTION! This equipment is not intended for use by persons
(including children) with reduced motor, sensory or mental
capacities, or persons
without experience or not familiarised with the equipment, unless it is
performed under supervision or according to the instruction regarding
operation provided by persons responsible for their safety.
Attention should be paid so that children do not play with the equipment.
the
instruction
NOTE: read the manual prior to commencement of use.
For safety reasons, the pump can only be operated by
persons well-familiarised with the manual.
BETA
electrocution hazard

Advertisement

Table of Contents
loading

Related Manuals for IBO BETA

Summary of Contents for IBO BETA

  • Page 1 Instruction manual for electronic circulation pump: BETA reading instruction electrocution hazard manual is obligatory device damage hazard NOTE: read the manual prior to commencement of use. For safety reasons, the pump can only be operated by persons well-familiarised with the manual.

  • Page 2: Pump Installation

    APPLICATION: Pumps described in this manual are intended for forcing circulation in central heating installations with constant or variable flow in which the temperature of heating medium does not exceed 110 C, and pressure in the installation does not exceed 1 Mpa (1,000,000 Pa). The maximum temperature of the surroundings where the pump will be installed cannot exceed 40 C, and relative moisture at the installation site must be lower than 90%.

  • Page 3: Electric Connection

    in the pipeline. It is recommended to flush the pipeline in which the pump is installed prior to installation. pump must installed in such a manner that its shaft is in a horizontal position. Ports can be in a different position than shown in Horizontal this picture, however, the...

  • Page 4: Operation Mode

    The powering installation of the pump must be equipped with a residual current device, with rated making current In not exceeding 30 mA. The manufacturer and guarantor are not liable for any damage to people or property resulting from supplying the pump with power without a proper switch.
  • Page 5 P2 - operation acc. to proportional pressure characteristics (diagram - blue colour) Parameters of pump operation depending on the selected operation mode are presented in the diagram (example diagram for pump BETA 25-60): RECOMMENDED SETPOINTS DEPENDING ON THE TYPE OF CENTRAL HEATING (CO) INSTALLATION: If there is a “two-pipe”...

  • Page 6: Night Mode

    If there is a “disposable” CO installation in the house, i.e. water from the radiator is cooled down and drained into the pipe feeding hot water into the next radiator, and then, upon going through all radiators in an loop, it is drained to the boiler, the most economical setpoint is the lower setpoint from characteristics of proportional pressure PP .
  • Page 7 On first launch, the installation and pump must be carefully deaerated. When the pump is deaerated, the level of the noise generated by the device motor drops. Failure-free pump operation requires minimal inflow pressure of heating medium (water) on the suction side of the pump. The minimal inflow pressure depends on the heating medium temperature.

  • Page 8: Problem Solution

    Regulation of the Commission (EC) no. 641/2009. Applied norms: EN 16297-1:2012 and EN 16297-2:2012. Gawartowa Wola 23.08.2011 Adam Jastrzębski The reference criterion for most energy saving circulation pumps is EEI < 0.20. For BETA pump, the coefficient EEI< 0.23 which means that BETA pump is an energy saving pump.
