These installation instructions describe how to install
your 45HQ Mortise Lock. Topics covered include:
Preparing the door ........................................................1
Installing the trim ...........................................................4
Completing the installation..........................................9
Patents
Products covered by one or more of the following patents:
6,720,861
1
Identify holes to drill
1 Determine the lock function to be installed.
Caution: Determine the inside and outside, hand,
and bevel of the door.
2 See the Holes by Function table and Figure 1 to deter-
mine the holes to be drilled for the lock function.
Holes by Function
Holes to drill
A Forged trim
(2 holes)
B Harness
C Standard cylinder
D Sensor & motor wire
(2 holes)
F Thumb turn
G Trim mounting (2 holes)
††
H Lever
J Door sensing channel (2
holes)
Determine trim holes based on trim type.
Because these holes pass through the mortise
pocket, it is recommended that each hole be drilled
separately rather than straight through.
Installation Instructions for
Wi-Q™ Technology 45HQ Mortise Locks
Functions
DV
TV
I/S O/S I/S O/S
Through
Through
door
door
Through
Through
door
door
Through
Through
door
door
Through
Through
door
door
DO NOT
See Figure
DRILL
1
a Product Group of dormakaba USA Inc.
For hole sizes, see
the Q06 Template
(T82606).

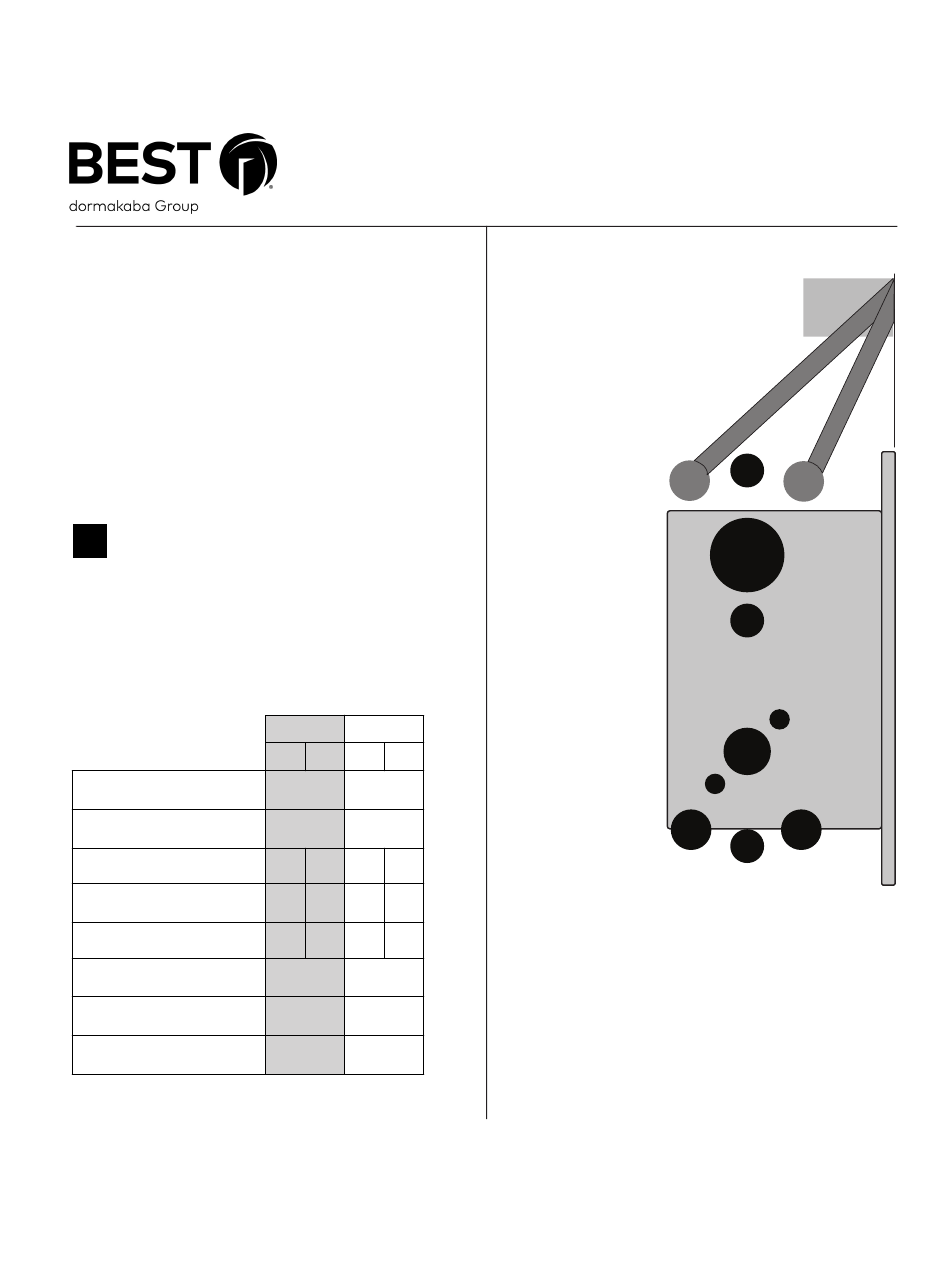

Figure 1
Identifying holes to drill
BEST
J
J
A
B
B
C
F
G
H
G
D
D
A
J
1
